User Manual for Hikvision DarkfighterX 2MP Outdoor Network PTZ Dome Camera with 4.8-120mm Lens, Night Vision & Wiper Click to enlarge the picture
Contents of the user manual for the Hikvision DarkfighterX 2MP Outdoor Network PTZ
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
 |
User manual for the Hikvision DarkfighterX 2MP Outdoor Network PTZ contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|

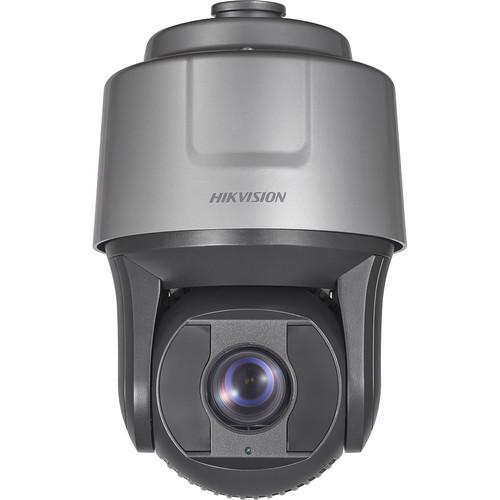

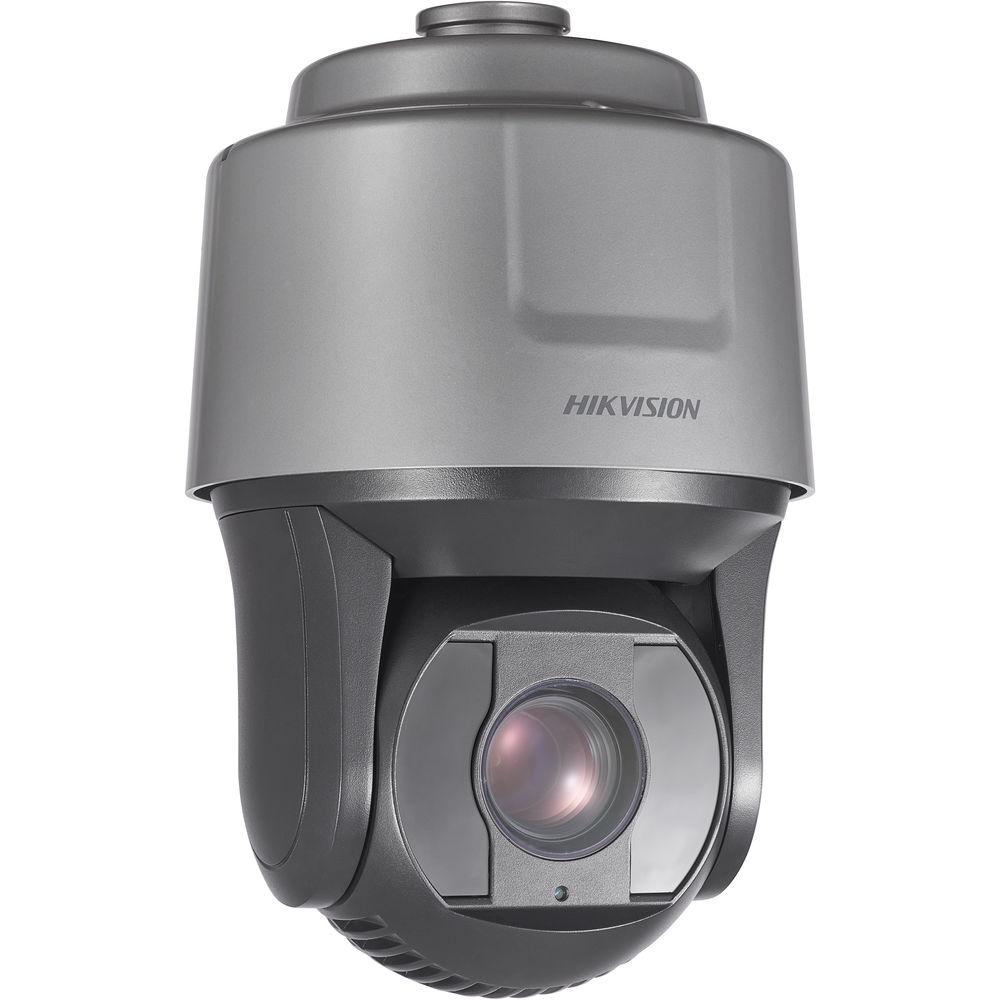

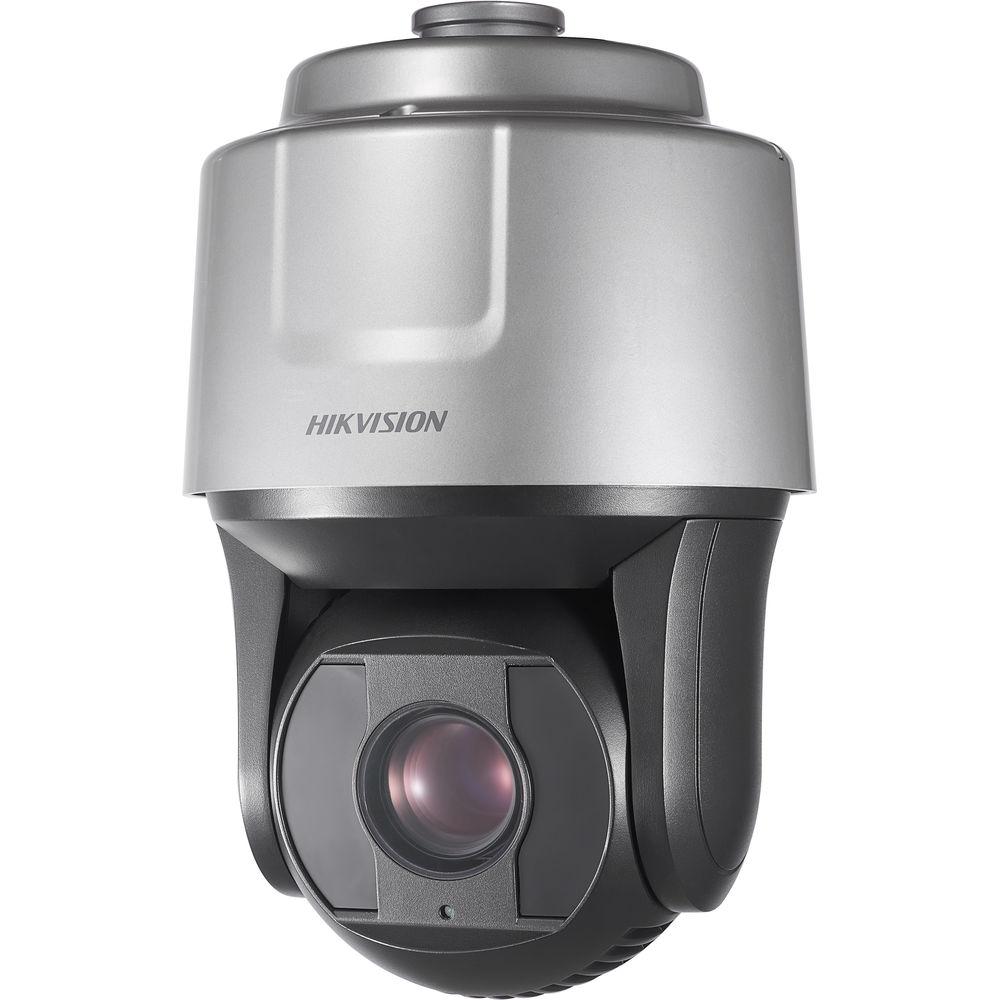

Product description The DarkfighterX 2MP Outdoor Network PTZ Dome Camera from Hikvision features 2 1/2.8" progressive scan CMOS sensors and a 4.8-120mm focal lens to capture video at a maximum resolution of 1920 x 1080. The lens offers 25x optical zoom for capturing detail at long distances. An IR cut filter and Smart IR support allow the camera to produce clear images in complete darkness from up to 656' away.
Enclosed in an IP66-rated housing with a wiper, the system can be used for both indoor and outdoor applications. The camera also features a wide range of smart functions such as intrusion detection, line crossing detection, audio exception, face detection, and region entrance/exit detection. - Digital wide dynamic range
- 3D digital noise reduction
- Backlight and highlight compensation
- Ultra-low light recording
- Support H.265+/H.265 video compression
- Suitable for rivers, forests, roads, railways, airports, ports, squares, parks, scenic spots, stations, and large venues
UPC: 842571110081 In the Box Hikvision DarkfighterX 2MP Outdoor Network PTZ Dome Camera with 4.8-120mm Lens, Night Vision & Wiper PoE Injector Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DarkfighterX 2MP Outdoor Network PTZ Dome Camera with 4.8-120mm Lens, Night Vision & Wiper in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2DF8225IH-AELW Specs | | | Sensor | 2 MP 1/2.8" CMOS | | Focal Length | 4.8 to 120mm | | Maximum Aperture | f/1.5 - f/3.5 | | Zoom | Digital: 16x
Optical: 25x | | Lens Field of View | Horizontal: 3.2 to 58.2°
Vertical: 1.8 to 32.7°
Diagonal: 3.7 to 66.8° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.001 Lux
B&W: 0 Lux | | Shutter Speed | 1/30000 to 1 Seconds | | | | Streaming Resolution | 1920 x 1080 at 60 fps
1920 x 1080 at 50 fps | | Supported Video Compression | H.264, H.264+, H.265, H.265+, MJPEG | | Multi-View Streaming | Yes, 3 Streams | | Automatic Gain Control | Yes | | | | Streaming | Two-Way | | Audio Formats | PCM | | Built-In Mic | No | | External Audio Input | 3.5 mm | | Built-In Speaker | No | | External Audio Output | 3.5 mm | | | | Security | Digest Authentication, HTTPS, IP Address Filtering, Password Protection | | Supported Protocols | Bonjour, DHCP, DNS, DynDNS, FTP, HTTP, , IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, TCP | | | | Application Programming Interface (API) | Open-ended, support ONVIF and CGI, support HIKVISION SDK and Third-Party | | Analytics | Intrusion, line crossing, audio exception, face, region entrance/exit detection | | Event Trigger | Yes | | Event Action | Recording, Alarm | | Data Streaming | Yes | | | | Recording Media | microSD (Up to 256 GB) | | Pan/Tilt | Remote Pan: 360° at 280°/s
Remote Tilt: 110° (-20 to 90°) at 250°/s | | Alarm I/O | 7 / 2 | | I/O Connections | 1 x RJ45
1 x BNC | | IR Range | 656.17' / 200 m | | Internal Storage | None | | External Storage Options | NAS | | Power Source | AC | | Power Consumption | 68 W | | Material of Construction | Aluminum | | Operating Temperature | -40 to 149°F / -40 to 65°C | | Operating Humidity | 0 to 90% | | IP Rating | IP66 | | Dimensions |
