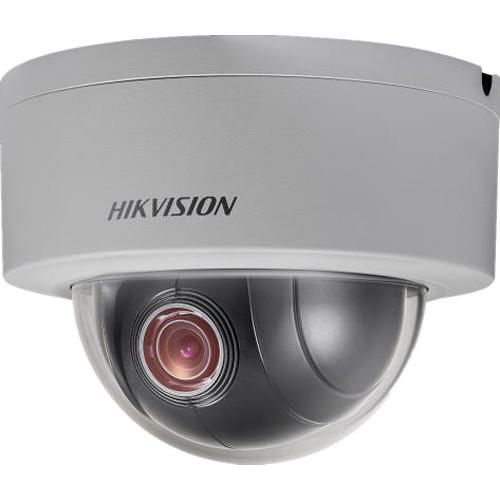

User Manual for Hikvision DE Series 3MP Outdoor PTZ Network Dome Camera Click to enlarge the picture
Contents of the user manual for the Hikvision DE Series 3MP Outdoor PTZ
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
|
User manual for the Hikvision DE Series 3MP Outdoor PTZ contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The DE Series 3MP Outdoor PTZ Network Dome Camera from Hikvision features a 1/2.8" progressive scan CMOS sensor and 2.8-12mm varifocal lens to capture 2048 x 1536 resolution video. With PTZ functionality, the lens can be panned 0 to 350° and tilted 5 to 90°, and optically zoomed by 4x magnification. In addition, it supports pan and tilt functions and is housed in an IP67- and IK10-rated enclosure to protect it from dust, water, and impact. It also features Smart Detection functions, including intrusion detection, line crossing detection, and motion detection. The camera can be powered via PoE or a 12 VDC adapter (available separately). - Captures 2048 x 1536 resolution
- 2.8-12mm varifocal lens has a 105-33.5° field of view
- Pan, tilt, and zoom functionality
- RJ45 Ethernet connection with PoE
- Digital Wide Dynamic Range (DWDR) and Digital Noise Reduction (3D-DNR) help the camera produce clear images in varying lighting conditions
- Audio input and output for two-way communication
- microSD card slot supports up to 128GB (available separately)
- Housed in an IP67- and IK10-rated enclosure to protect the camera from dust, water, and impact
UPC: 813908023749 In the Box Hikvision DE Series 3MP Outdoor PTZ Network Dome Camera Limited 3-Year Warranty Brochure PDF 680.9kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DE Series 3MP Outdoor PTZ Network Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2DE3304W-DE Specs | | | Image Sensor | 1/2.8" progressive scan CMOS sensor | | Minimum Illumination | AGC On:
Color: 0.05 lux at f/1.6
B&W: 0.01 lux at f/1.6 | | Resolution | 2048 x 1536 | | Focal Length | 2.8-12mm | | Zoom | Optical: 4x
Digital: 16x | | Field of View | 105-33.5° | | Aperture Range | f/1.6-2.7 | | Focus Modes | Auto, semiautomatic, manual | | Wide Dynamic Range | DWDR | | S/N Ratio | ≥52 dB | | Shutter Time | 1 to 1/10,000 sec | | AGC | Auto, manual | | White Balance | Auto, manual, ATW, indoor, outdoor, daylight lamp, sodium lamp | | Day & Night | IR cut filter | | Privacy Masking | 8 programmable privacy masks | | Enhancements | 3D-DNR, HLC, BLC | | | | Range | Pan: 0 to 350°
Tilt: 5 to 90° | | Speed | Pan Manual Speed: 0.1 to 60°/sec
Pan Preset Speed: 30°/sec
Tilt Manual Speed: 0.1 to 50°/sec
Tilt Preset Speed: 25°/sec | | Number of Presets | 300 | | Patrol | 8 patrols, up to 32 presets per patrol | | Action Type | Preset, patrol | | Scheduled Tasks | Preset, reboot, patrol, self test, auxiliary output | | | | Detection | Smart Detection: Intrusion, line crossing, audio exception, motion | | Region of Interest | Up to 4 areas with adjustable levels | | | | Alarm I/O | 1/1 | | Alarm Trigger | Intrusion detection, line crossing detection, motion detection, audio exception detection, dynamic analysis, tampering alarm, network disconnect, IP address conflict, storage exception | | Alarm Actions | Preset, recording, relay output, upload center, upload FTP, email linkage | | | | Audio Input | 1 x audio input (mic/line in), 2-2.4 V p-p
Output Impedance: 1 kOhm ±10% | | Audio Output | 1 x output, line level
Impedance: 600 Ohms | | | | Ethernet | RJ45 10Base-T/100Base-TX Ethernet | | Simultaneous User Access | Up to 20 users | | Memory Card Support | Up to 128 GB microSD/SDHC/SDXC card (available separately) for edge recording | | User/Host Level | Up to 32 users
3 Levels: Administrator, operator, and user | | Security | User authentication (ID and password)
Host authentication (MAC address), IP address filtering | | | | Application Programming Interface | Open-ended API, ONVIF, PSIA, CGI, and Genetec | | Web Browser | Internet Explorer 7 and later, Chrome 18 and later, Firefox 5.0 and later, Safari 5.02 and later | | Power | PoE and 12 VDC, maximum 8 W | | Operating Temperature | -22 to 149°F (-30 to 65°C) | | Humidity | <90% | | IP Rating | IP67 | | IK Rating | IK10 | | Certification | FCC, CE, UL, RoHS, IEC/EN 61000, IEC/EN 55022, IEC/EN 55024, IEC/EN60950-1 | | Dimensions | 5.5 x 4.2" (141 x 107 mm) | | Weight | 33.5 oz (950 g) | | | | Package Weight | 2.845 lb | | Box Dimensions (LxWxH) | 7.65 x 7.55 x 6.1" |
