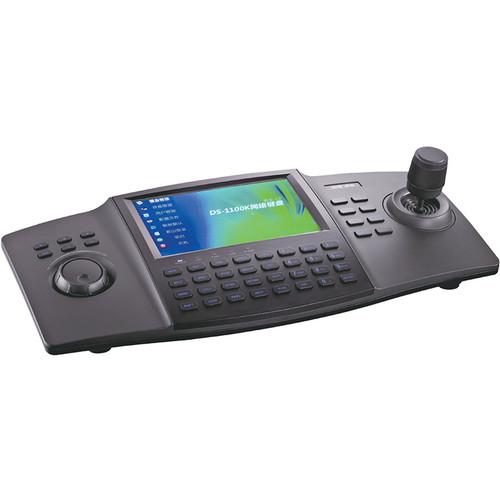

User Manual for Hikvision DS-1100KI 4-Axis Joystick Network Keyboard Controller Click to enlarge the picture
Contents of the user manual for the Hikvision DS-1100KI 4-Axis Joystick Network Keyboard
- Product category: Keyboards & Controllers Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Keyboards & Controllers
|
User manual for the Hikvision DS-1100KI 4-Axis Joystick Network Keyboard contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description Simultaneously control speed domes, video decoders, and DVRs using the DS-1100KI 4-Axis Joystick Network Keyboard Controller from Hikvision. The 4-axis joystick allows you to make pan, tilt, and zoom adjustments on each camera. Additionally, the joystick features a push-button allowing you take on-demand pictures without having to take your hand off the control. The playback knob allows you to control the speed of video playback and navigate through the saved data. Recorded files and pictures can be saved to a USB flash drive or FTP server and sorted and searched by time or file. Using MPEG4 or H.264 encoding formats, the controller can decode video at up to 1080p resolution and can display the footage on a selected window or video wall.
The controller can accommodate up to 1280 devices configured by three operators. An auto search will find connected devices in the network area for easy installation. Keyboard parameters and settings can be imported and exported, and shortcut keys can be set for convenient and efficient operation. - 4-axis joystick for 8 direction adjustments
- Presets and shortcuts of convenient control
- Two-way audio capabilities
- RS-485 connection can control up to 255 analog domes
- Provides 1-channel video decoding and local decoding at 1080p
- Decoded video can be displayed on a selected window, monitor, or connected video wall
UPC: 816783011702 In the Box Hikvision DS-1100KI 4-Axis Joystick Network Keyboard Controller Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-1100KI 4-Axis Joystick Network Keyboard Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-1100KI Specs | Compatible Devices | Speed domes, video decoders, and DVRs | | Maximum Device Control | 1280 | | Maximum Number of Controllers Supported | 3 | | Control Interface | 1 x RJ45 10M/100M/1000M self-adaptive Ethernet interface
1 x RS-232
1 x RS-485
1 x USB 2.0 | | Audio Inputs/Outputs | Line-In: 1-channel 3.5mm connector (2.0 vpp, 1 kohm)
Audio Out: 1-channel 3.5mm connector (Linear, 560 ohms) | | LCD | Yes (800 x 480 resolution) | | Alarm I/O | Yes | | Power Supply | 12 VDC | | Power Consumption | < 15 W | | Operating Temperature & Humidity | 14 to 131°F / -10 to 55°C at 10 to 90% | | Dimensions (WxHxD) | 4.33 x 17.12 x 7.59" / 11.00 x 43.48 x 19.28 cm | | Weight | 2.2 lb / 1.0 kg | | | | Package Weight | 7.4 lb | | Box Dimensions (LxWxH) | 20.2 x 10.9 x 7.5" |
