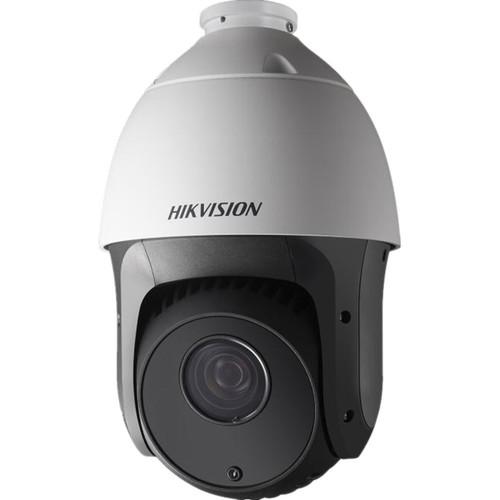

Product description The DS-2AE5123TI-A 720p Turbo IR PTZ Dome Camera from Hikvision features a 1/3" progressive scan CMOS sensor that allows it to capture images at a maximum resolution of 1280 x 720. In addition, the camera also features a 4 to 92mm varifocal lens with a viewing angle of 49 to 2.28°. The IR-cut filter allows infrared light to pass through the lens and hit the sensor as light levels diminish. This camera has a IP66 weatherproof rating and is designed to withstand dust, rain, and harsh weather conditions. - System Function
-
- 1/3” HD CMOS sensor
- Up to 1280 x 720 resolution
- +/- 0.1° preset accuracy
- Self adaptive to Hikvision, Pelco-P/D protocol
- 3D intelligent positioning function
- Power-off memory function helps restore PTZ and lens status after reboot
- Built-in temperature sensor with display of internal temperature
- Lightning protection, surge protection, and voltage transient protection
- IP66 rated weatherproof
- Scheduled PTZ movement
- RS-485 communications diagnosis
- Up the coax function
- CVBS output
- Camera Function
-
- Auto focus, auto white balance, backlight compensation, and auto / manual day & night switch
- Privacy masks programmable
- 3D DNR, WDR
- PTZ function
-
- 360°endless pan range and -15 to 90° tilt range
- 400° per second pan preset speed and 200° per second tilt preset speed
- 0.1 to 400°/sec manual pan speed and 0.1 to 120°/sec manual tilt speed
- 256 presets programmable with preset image freezing capability
- 8 patrols with up to 32 presets per patrol
- 4 patterns, with the recording time not less than 10 minutes per pattern
- Proportional zoom function
- Park action with auto call up of PTZ movement, after a defined time of inactivity
- IR Function
-
- 0 lux minimum illumination
- Up to 492.1' IR distance
- IR light MTBF reaching up to 30000 hours
- Smart IR mode
- Applications
-
- Ideal for monitoring large areas such as rivers, forests, highways, railways, airports, ports, sentries, squares, parks, scenic sites, streets, stations, and residential areas
UPC: 813908021387 In the Box Hikvision DS-2AE5123TI-A 720p Turbo IR PTZ Dome Camera (NTSC/PAL) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-2AE5123TI-A 720p Turbo IR PTZ Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2AE5123TI-A Specs | | | Image Sensor | 1/3" progressive scan CMOS sensor | | Maximum Image Resolution | 1280 x 720 | | Signal System | NTSC / PAL | | Frame Rate | 50 Hz: 1280 x 720 @ 25 and 50 fps
60 Hz: 1280 x 720 @ 30 and 60 fps | | Minimum Illumination | Color: 0.05 lux (F/1.4, AGC on)
B/W: 0.005 lux (F/1.4, AGC on) | | White Balance | Auto / manual / ATW / indoor / outdoor | | Day & Night | IR cut filter | | AGC | Auto / manual | | S/N Ratio | ≥50 dB | | DNR | 3D DNR supported | | Wide Dynamic Range | Supported | | Shutter Time | PAL: 1 to 1/10,000 sec
NTSC: 1 to 1/10,000 sec | | Digital Zoom | 16x | | Privacy Masking | 8 privacy masks programmable (a maximum of 8 zones can be masked simultaneously on the same screen) | | Auto Focus Modes | Auto / semi-automatic / manual | | | | Focal Length | 4 to 92 mm, 23x optical zoom | | Zoom Speed | 3 sec (Optical wide-tele) approximately | | Angle of View | 49 to 2.28° (wide-tele) | | Minimum Working Distance | 10 to 1000 mm (wide-tele) | | Aperture Range | F/1.4 to 3.5 | | | | Range | Pan: 360° endless
Tilt: -15 to 90° (auto flip) | | Speed | Pan:
Manual Speed: 0.1 to 400°/sec
Preset Speed: 400°/sec
Tilt:
Manual Speed: 0.1 to 120°/sec
Preset Speed: 200°/sec | | Zoom | Proportional zoom can be adjusted automatically according to zoom multiples | | Number of Presets | 256 | | Patrol | 8 patrols, up to 32 presets per patrol | | Pattern | 4 patterns, with the recording time not less than 10 minutes per pattern | | Action Type | Preset / patrol / pattern / pan scan / tilt scan / random scan / frame scan / panorama scan | | PTZ Position Display | On / off | | Preset | Preset freezing supported | | Task | Preset / patrol / pattern / pan scan / tilt scan / panorama scan | | RS-485 Communication | Supported | | | | Distance | 492.1' (150.0 m) | | Intensity Adjustment | Automatically adjusted depending on the zoom ratio | | | | HD Output | 1 turbo HD 720p output, BNC | | CVBS Output | 1 Vpp / 75 ohms, NTSC / PAL composite, BNC | | | | Function | UTC: Hikvision_C | | Menu Language | English, Chinese | | RS-485 | Half-duplex mode
Self-adaptive Hikvision, Pelco-P, Pelco-D protocol | | Power Consumption | 24 VAC
Heater On: 20 W maximum
Heater Off: 12 W maximum | | Working Temperature | -22 to 149°F (-30 to 65°C) | | Humidity | 90% or less | | Protection Level | IP66, TVS 6000 V lightning protection, surge protection, and voltage transient protection | | Dimensions | 7.2 x 12.9" (18.5 x 33.0 cm) | | Weight | 8.81 lb (4.00 kg) approximately |
