User Manual for Hikvision DS-2AE5230T-A3 2MP PTZ Analog Indoor Dome Camera with 4 to 120mm Varifocal Lens Click to enlarge the picture
Contents of the user manual for the Hikvision DS-2AE5230T-A3 2MP PTZ Analog Indoor
- Product category: Wired Analog & HD Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired Analog & HD Cameras
|
User manual for the Hikvision DS-2AE5230T-A3 2MP PTZ Analog Indoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|

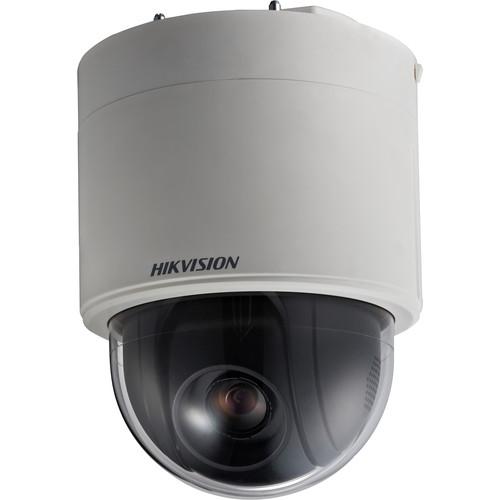

Product description The DS-2AE5230T-A3 2MP PTZ Analog Indoor Dome Camera from Hikvision features a 1/3" progressive scan CMOS sensor that captures images up to a resolution of 1920 x 1080. In addition, the camera also features a 4 to 120mm varifocal lens with a viewing angle of 58 to 1.7°. The camera comes with a host of features such as privacy masking, 3D DNR, and 3D intelligent positioning. This camera comes in a IK09 vandalproof rated housing to protect it from acts of theft and vandalism. - 1080p full HD video output
- 30x optical zoom and 16x digital zoom
- Supports up-the-coax function
- 3D intelligent positioning
UPC: 813908020533 In the Box Hikvision DS-2AE5230T-A3 2MP PTZ Analog Indoor Dome Camera with 4 to 120mm Varifocal Lens (NTSC/PAL) Limited 3-Year Warranty Brochure PDF 892kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-2AE5230T-A3 2MP PTZ Analog Indoor Dome Camera with 4 to 120mm Varifocal Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2AE5230T-A3 Specs | | | Sensor | 1/3" CMOS | | Effective Pixels (H x V) | 1920 x 1080 | | Signal System | NTSC / PAL | | Minimum Illumination | Color: 0.02 lux @ F/1.6, AGC on
B/W: 0.002 lux @ F/1.6, AGC on | | White Balance | Auto / manual / ATW / indoor / outdoor | | AGC | Auto / manual | | S/N Ratio | ≥50 dB | | DNR | 3D DNR supported | | BLC | Supported | | Shutter Time | PAL: 1 to 1/10,000 sec
NTSC: 1 to 1/10,000 sec | | Day/Night | IR cut filter | | Digital Zoom | 16x | | Privacy Masking | 8 privacy masks programmable, a maximum of 8 zones can be masked simultaneously on the same video screen | | Auto Focus Modes | Auto / semi-automatic / manual | | | | Focal Length | 4 to 120mm, 30x optical zoom | | Zoom Speed | 3 sec approximate (Optical wide to tele) | | Angle of View | 58 to 1.7° (Wide to tele) | | Minimum Working Distance | 10 to 1500 mm (Wide to tele) | | Aperture Range | F/1.6 to F/4.4 | | | | Zoom | Proportional: Rotation speed can be adjusted automatically according to zoom multiples | | Pan | Range: 360°endless
Speed: 0.1 to 250°/sec (manual), 300°/sec (preset) | | Tilt | Range: -5 to 90° (Auto flip)
Speed: 0.1 to 150°/sec (manual), 200°/sec (preset) | | Number of Presets | 256 | | Patrol | 8 patrols, up to 32 presets per patrol | | Pattern | 4 patterns, with the total recording time not less than 10 minutes | | Power Method | Power-off memory supported | | Action Type | Preset / patrol / pattern / pan scan / tilt scan / frame scan / random scan / panorama scan | | PTZ Position Display | On / off | | Preset | Preset freezing supported | | Task | Schedule: Preset / patrol / pattern / pan scan / tilt scan / frame scan / random scan / panorama scan | | RS-485 Communication | Supported | | | | HD Output | 1 turbo HD 1080p output, 1.0 Vpp / 75 ohms, NTSC / PAL composite, BNC | | RS-485 | Half-duplex mode, self-adaptive Hikvision, Pelco-P, Pelco-D protocol | | Function | UTC Fucntion: Self-adaptive Pelco_C, Hikvision_C (need UTC controller) | | | | Menu Language | English / Chinese | | Protection Level | TVS 4000 V lighting protection, surge protection, and voltage transient protection | | Impact Protection | IEC60068-275Eh, 10J, EN50102, up to IK09 | | Power | 24 VAC, 12 W maximum | | Working Temperature | Outdoor Dome: 14 to 122°F (-10 to 50°C) | | Humidity | 90% or less | | Dimensions | 7.22 x 9.56" (18.3 x 24.3 cm) | | Weight | 6.6 lb (3.0 kg) | | | | Package Weight | 13.15 lb | | Box Dimensions (LxWxH) | 18.9 x 12.5 x 12.2" |
