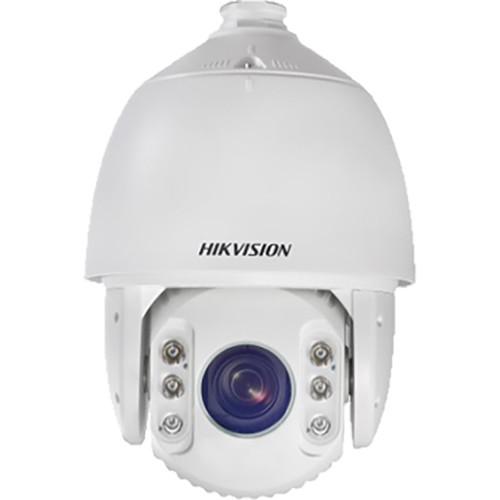

The DS-2AE7232TI-A TurboHD 2MP Outdoor PTZ Dome Camera from Hikvision uses a 1/2.8" progressive scan CMOS sensor to transmit 1920 x 1080 resolution video at 30 fps. IR LEDs provide up to 490' of illumination in low-light conditions. The 4.8-153mm varifocal lens delivers a 54.2 to 1.97° horizontal field of view. The camera features endless panning, a -15 to 90° tilt range, and 32x optical zoom. HD-TVI, HD-CVI, AHD, and CVBS signal outputs are supported. UTC (Up-the-Coax) protocol enables OSD menu control.

This PTZ camera is housed in an IP66-rated enclosure that is suitable for outdoor use.
  • IR cut filter for day and night functionality
  • 16x digital zoom
  • Zoom speed of 3.5 seconds
  • 0.4 to 59" minimum working distance
  • 3D intelligent positioning
  • White balance settings include auto, manual, ATW, indoor, and outdoor
  • Automatic gain control
  • 3D-DNR
  • ≥120 dB wide dynamic range
  • Eight programmable privacy masks
  • Backlight compensation, highlight compensation, electric image stabilization, and regional focus
  • RS-485 interface
  • CSA, FCC, CE, and cUL certified
  • TVS 4000V lightning, surge, and voltage transient protection
    PTZ Functions
    • Endless panning
    • 0.1 to 160°/s configurable pan speed
    • 160°/s preset pan speed
    • -15 to 90° tilt range (auto flip)
    • 0.1 to 120°/s configurable tilt speed
    • 120°/s preset tilt speed
    • 256 presets
    • 10 patrols (up to 32 presets per patrol)
    • 5 patterns (total recording time no less than 10 minutes
    • Support for proportional zoom, power-off memory, PTZ position display, and preset freezing
    • Park actions include preset, patrol, pattern, pan scan, tilt scan, panorama scan, day mode, and night mode
    • Scheduled task includes preset, patrol, pattern, pan scan, tilt scan, panorama scan, day mode, night mode, and zero calibration
UPC: 842571115727 In the Box Hikvision DS-2AE7232TI-A TurboHD 2MP Analog HD Outdoor PTZ Dome Camera
  • Limited 3-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Hikvision DS-2AE7232TI-A TurboHD 2MP Analog HD Outdoor PTZ Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Hikvision DS-2AE7232TI-A Specs

    Image Sensor 1/2.8" Progressive Scan CMOS Sensor
    Maximum Image Resolution 1920 x 1080
    Frame Rate 30 fps
    Minimum Illumination Color: 0.005 Lux at f/1.2 with AGC
    B&W: 0.001 Lux at f/1.2 with AGC
    White Balance Auto, Manual, ATW, Indoor, Outdoor
    Automatic Gain Control Auto, Manual
    Digital Noise Reduction 3D-DNR
    Wide Dynamic Range ≥120 dB
    Shutter Speed 1/10,000 to 1 Second
    Day/Night IR Cut Filter
    IR Range 490' / 150 m
    IR Intensity Automatically Adjusted Depending on Zoom Ratio
    Digital Zoom 16x
    Privacy Masking Eight Programmable Privacy Masks
    BLC Supported
    HLC Supported
    EIS Supported
    Regional Focus Supported
    Focus Modes Auto, Semi-Auto, Manual
    Focal Length 4.8-153mm
    Optical Zoom 32x
    Aperture Range f/1.2 to f/4.4
    Field of View Horizontal: 54.2 to 1.97°
    Minimum Working Distance 0.4 to 59" / 10 to 1500 mm
    Zoom Speed Approximately 3.5 Seconds (Optical, Wide to Tele)
    Pan Range 360° Endless
    Pan Speed Configurable from 0.1 to 160°/s
    160°/s Preset Speed
    Tilt Range From -15 to 90° (Auto Flip)
    Tilt Speed Configurable from 0.1 to 120°/s
    120°/s Preset Speed
    Proportional Zoom Rotation Speed Can be Adjusted Automatically According to Zoom Multiples
    Presets 256
    Patrol 10 Patrols (Up to 32 Presets for Each Patrol)
    Pattern 5 Patterns (Total Recording Time No Less than 10 Minutes)
    Power-Off Memory Supported
    Park Action Preset, Patrol, Pattern, Pan Scan, Tilt Scan, Panorama Scan, Day Mode, Night Mode, None
    PTZ Position Display On, Off
    Preset Freezing Supported
    Scheduled Tasks Preset, Patrol, Pattern, Pan Scan, Tilt Scan, Panorama Scan, Day Mode, Night Mode, Zero Calibration, None
    Video Output Switchable HD-TVI/AHD/HD-CVI/CVBS Video Output (NTSC, BNC)
    RS-485 Half-Duplex Mode, Self-Adaptive Hikvision, Pelco P, Pelco D Protocols
    UTC UTC Protocol (Hikvision-C Protocol in Previous DVR)
    Power 24 VAC, Maximum 40 W (54 W with IR)
    Operating Temperature -22 to 149°F / -30 to 65°C
    Operating Humidity ≤90%
    IP Rating IP66
    Protections TVS 4000 V Lightning Protection
    Surge Protection
    Voltage Transient Protection
    Dimensions Ø8.66 x 13.91" / Ø220 x 353.4 mm
    Weight 9.92 lb / 4.5 kg
