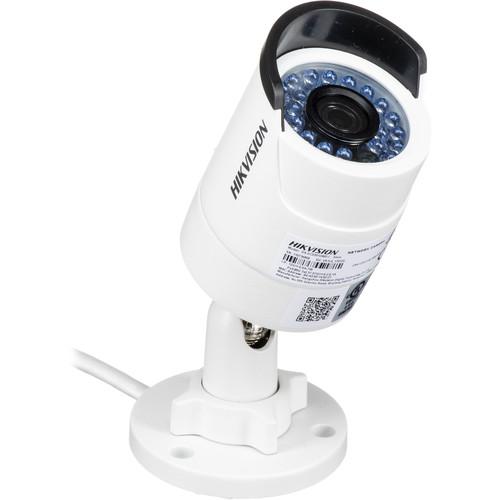

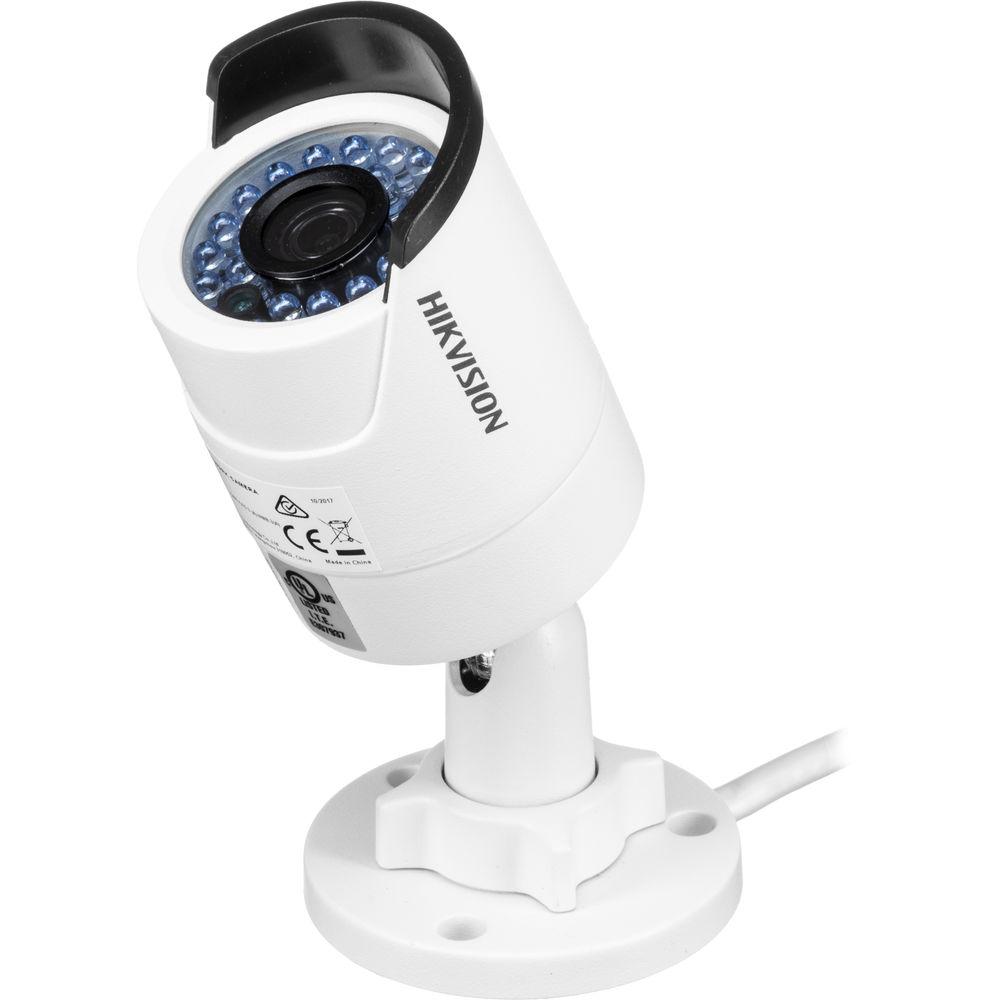

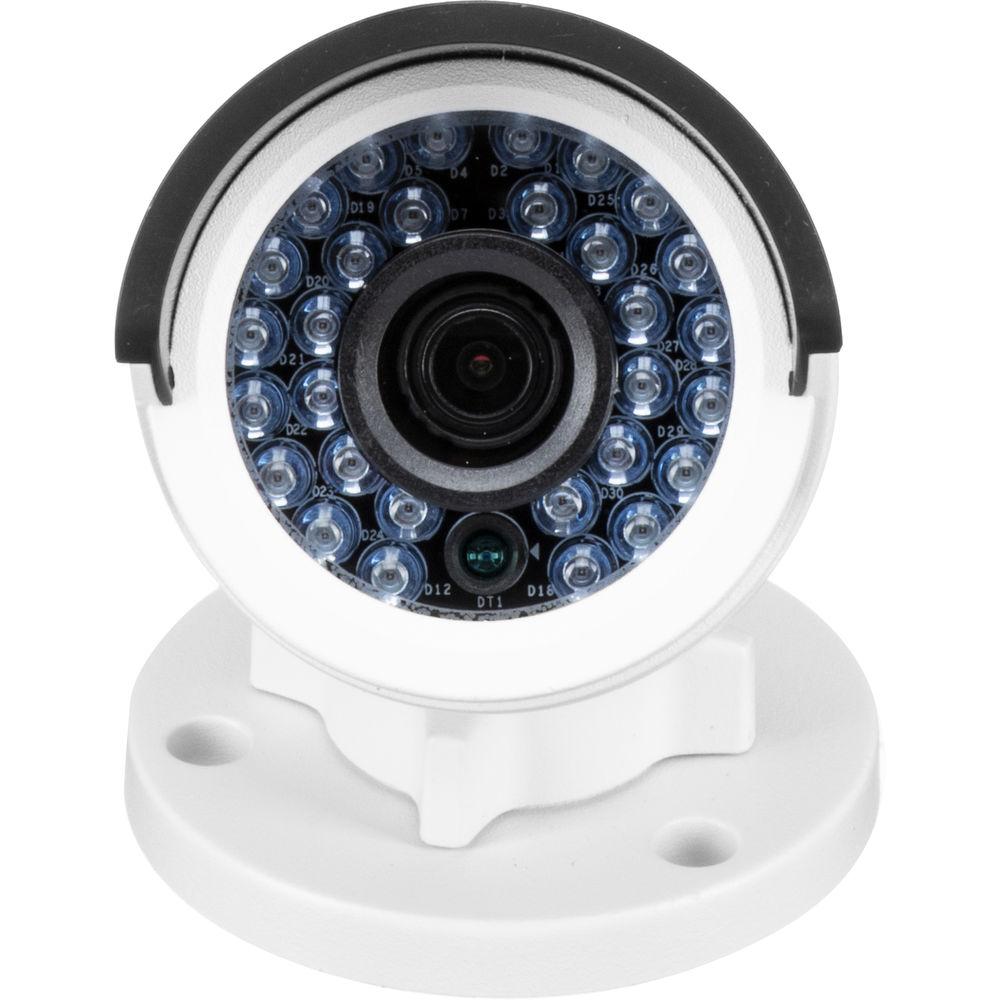

User Manual for Hikvision DS-2CD2012WD-I 1.3MP Outdoor Network Mini Bullet Camera with 4mm Lens & Night Vision Click to enlarge the picture
Contents of the user manual for the Hikvision DS-2CD2012WD-I 1.3MP Outdoor Network Mini
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
 |
User manual for the Hikvision DS-2CD2012WD-I 1.3MP Outdoor Network Mini contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The DS-2CD2012WD-I 1.3MP Outdoor Network Mini Bullet Camera from Hikvision is equipped with a 1/3" progressive scan CMOS sensor to capture 1280 x 960 resolution video at up to 30 fps. An IR cut filter and IR LEDs provide night vision to a range of 100' in complete darkness. The camera comes with a 4mm fixed lens with a 73.1° field of view and features DWDR, 3D-DNR, and backlight compensation. This device is housed in an IP66-rated enclosure that is suitable for outdoor use. UPC: 842571108316 In the Box Hikvision DS-2CD2012WD-I 1.3MP Outdoor Network Mini Bullet Camera with 4mm Lens & Night Vision Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-2CD2012WD-I 1.3MP Outdoor Network Mini Bullet Camera with 4mm Lens & Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CD2012WD-I 4MM Specs | | | Sensor | 1.3 MP 1/3" CMOS | | Lens Mount | M12 | | Focal Length | 4mm | | Maximum Aperture | f/2 | | Lens Field of View | Horizontal: 73.1° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | 0.01 Lux | | Shutter Speed | 1/100,000 to 1/25 Seconds | | | | Streaming Resolution | 1280 x 960 at 30 fps | | Supported Video Compression | H.264, MJPEG | | Multi-View Streaming | Yes, 2 Streams | | Automatic Gain Control | Yes | | | | Security | Digest Authentication, Watermark | | Supported Protocols | Bonjour, DHCP, DNS, DynDNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UPnP | | | | Application Programming Interface (API) | ONVIF, PSIA, CGI, ISAPI | | Event Trigger | Yes | | Event Action | Alarm | | | | Recording Media | None | | Pan/Tilt | None | | I/O Connections | 1 x RJ45 | | IR Range | 100' / 30.48 m | | Internal Storage | None | | External Storage Options | NAS | | Power Source | DC, PoE 802.3af (15 W) | | Power Consumption | 5 W | | Operating Temperature | -22 to 140°F / -30 to 60°C | | IP Rating | IP66 | | Dimensions | H: 3.0 x W: 2.4 x L: 5.5" / H: 7.6 x W: 6.1 x L: 14.0 cm | | Weight | 1.1 lb / 0.5 kg | | | | Package Weight | 1.16 lb | | Box Dimensions (LxWxH) | 6.8 x 4.4 x 4.0" |
