Hikvision DS-2CD2043G0-I 4MP Outdoor Network Bullet

Search your instruction manual in PDF to download

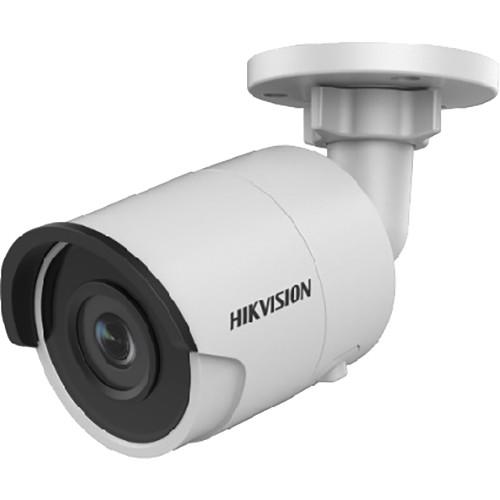

User Manual for Hikvision DS-2CD2043G0-I 4MP Outdoor Network Bullet Camera with Night Vision & 4mm Lens

Click to enlarge the picture
Hikvision DS-2CD2043G0-I 4MP Outdoor Network Bullet Camera with Night Vision & 4mm Lens Contents of the user manual for the Hikvision DS-2CD2043G0-I 4MP Outdoor Network Bullet
  • Product category: Wired IP Cameras Hikvision
  • Brand: Hikvision
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Hikvision Wired IP Cameras

User manual for the Hikvision DS-2CD2043G0-I 4MP Outdoor Network Bullet contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Hikvision product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!



Product description

The DS-2CD2043G0-I 4MP Outdoor Network Bullet Camera from Hikvision uses a 1/3" progressive scan CMOS sensor to capture 2688 x 1520 resolution video at 30 fps. IR LEDs provide up to 100' of night vision. The camera's 4mm fixed lens delivers an 83° horizontal field of view. An onboard memory card slot accepts microSD/SDHC/SDXC cards up to 128GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.

This bullet camera complies with ONVIF profiles S and G, making it compatible with a wide range of surveillance devices. The camera's metal enclosure is IP67 rated for outdoor use.
  • EXIR 2.0 technology for visibility in low-light conditions
  • IR cut filter for day and night functionality
  • H.265+, H.265, H.264+, H.264, and MJPEG video compressions
  • Scalable video coding (SVC) for H.264 and H.265
  • Triple streaming
  • Manual focus
  • Slow shutter support
  • 120 dB wide dynamic range
  • 3D-DNR
  • Backlight compensation
  • Image settings include rotate mode, saturation, brightness, contrast, sharpness, automatic gain control, and white balance
  • Region of interest (ROI) supports one fixed region for main stream and sub stream
  • Alarm triggers include motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, and HDD error
  • Line crossing, intrusion, and exception detection
  • General functions include one-key reset, anti-flicker, heartbeat, password protection, privacy mask, watermark, and IP address filtering
  • Up to 32 users with 3 host levels (admin, operator, and user)
  • Up to six channels in simultaneous live view
  • Reset button
  • Compatible with Internet Explorer 8 or higher, Chrome 31.0 to 44, Firefox 30.0 to 51, Safari 8.0 or higher, iOS, Android, iVMS-4200, and Hik-Connect
  • Network-attached storage support
  • CSA, FCC, CE, and cUL certified
  • TVS 2000V lightning, surge, and voltage transient protection
UPC: 842571120103 In the Box Hikvision DS-2CD2043G0-I 4MP Outdoor Network Bullet Camera with Night Vision & 4mm Lens
  • Limited 3-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Hikvision DS-2CD2043G0-I 4MP Outdoor Network Bullet Camera with Night Vision & 4mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:


    User manual for Hikvision DS-2CD2043G0-I 4MP Outdoor Network Bullet Camera with Night Vision & 4mm Lens can be downloaded below, so the upload option is not active.


    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%

    User manual for Hikvision DS-2CD2043G0-I 4MP Outdoor Network Bullet Camera with Night Vision & 4mm Lens can be downloaded below, so the upload option is not active.

    Download User Manual

    The user manual for the Hikvision DS-2CD2043G0-I 4MP Outdoor Network Bullet Camera with Night Vision & 4mm Lens can be downloaded in PDF format at the link stated below.
    Download PDF user manual - Hikvision DS-2CD2043G0-I 4MP Outdoor Network Bullet Camera with Night Vision & 4mm LensDownload PDF User Manual - https://www.search-manual.com/ upload/ hikvision-ds-2cd2043g0-i-4mp-outdoor-network-bullet-camera-with-night-vision-4mm-lens-257436-user-manual.pdf
    (PDF file, 1.03 MB)


    Technical parameters

    Hikvision DS-2CD2043G0-I Specs

    Sensor 4 MP 1/3" CMOS
    Lens Mount M12
    Focal Length 4mm
    Maximum Aperture f/1.6
    Lens Field of View Horizontal: 83°
    Vertical: 45°
    Diagonal: 99°
    IR Cut Filter Mechanical
    Day/Night Yes
    Minimum Illumination Color: 0.018 Lux
    B&W: 0 Lux
    Shutter Speed 1/100,000 to 1/3 Seconds
    Streaming Resolution 2688 x 1520 at 30 fps (16 Mb/s )
    Supported Video Compression H.264, H.264+, H.265, H.265+, MJPEG
    Multi-View Streaming Yes, 3 Streams
    Automatic Gain Control Yes
    Security HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection, Watermark
    Supported Protocols Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UDP, UPnP
    Application Programming Interface (API) ONVIF Profiles S & G, ISAPI
    Analytics Motion Detection
    Line Crossing Detection
    Intrusion Detection
    Exception Detection
    Event Trigger Yes
    Event Action Recording, Notification, Alarm
    Data Streaming Yes
    Mobile Operating Systems iOS, Android
    Recording Media microSD (Up to 128 GB)
    Pan/Tilt None
    I/O Connections 1 x RJ45
    1 x Power
    IR Illuminators 850 nm
    IR Range 100' / 30.48 m
    Video Management Software iVMS-4200, Hik-Connect
    Internal Storage None
    External Storage Options NAS
    Power Source DC, PoE 802.3af (15 W)
    Power Consumption DC: 6 W
    PoE: 7.5 W
    Material of Construction Metal (Unspecified Type)
    Operating Temperature -22 to 140°F / -30 to 60°C
    Operating Humidity 0 to 95%
    IP Rating IP67
    Dimensions

    Rating

    90% users recommend this product to others. And what about you?
    Rating: 4.5 of 5

    This product has already been rated by 36 owners. Add your rating and experience with the product.

    Discussion

    Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems.

    Post new comment to Hikvision DS-2CD2043G0-I 4MP Outdoor Network Bullet Camera with Night Vision & 4mm Lens

    Subject: Comment
    Date: 14.08.2022 18:12:47Name: HASINA ANDRIAJAFINIRINA
    Hi,

    I've just got a camera HICKVISION DS-2CD2043G0-1. I've never use it in the past. it is the first time. I want to try to usu it but I don't know how to connect it to my PC. It was provided with a LAN cable wich is atapted to its cable, I can powered it, so two red lights are appearing during a few seconds and the light is off. There is no over sign after to know if the camera works or no.
    Can you help me how to connect and use this camera
