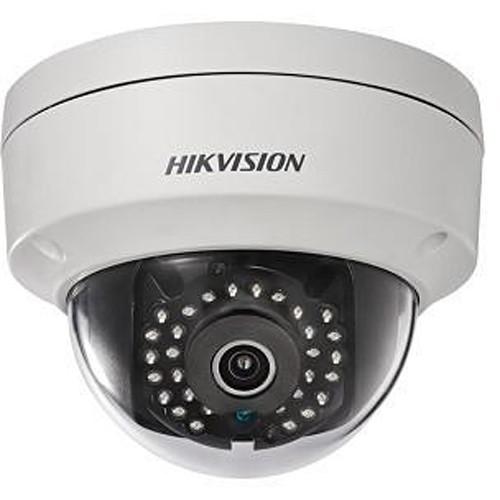

User Manual for Hikvision DS-2CD2122FWD-IWS 2MP Outdoor Wi-Fi Network Dome Camera with Night Vision & 4mm Lens Click to enlarge the picture
Contents of the user manual for the Hikvision DS-2CD2122FWD-IWS 2MP Outdoor Wi-Fi Network
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
|
User manual for the Hikvision DS-2CD2122FWD-IWS 2MP Outdoor Wi-Fi Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The DS-2CD2122FWD-IWS 2MP Outdoor Wi-Fi Network Dome Camera with Night Vision & 4mm Lens from Hikvsion uses a 1/2.8" progressive scan CMOS sensor to capture 1920 x 1080 resolution video at up to 30 fps. IR LEDs provide up to 98' of night vision. The camera's 4mm fixed lens delivers an 88° field of view. Two-way audio communication is possible thanks to an audio I/O. An onboard memory card slot supports microSD/SDHC/SDXC cards up to 128GB (available separately). Integrated PoE technology simplifies connectivity by transferring power and data over one cable.
This Wi-Fi network camera has a wireless range of 164'. It is compliant for ONVIF profiles S and G, making it compatible with a wide range of surveillance devices. The camera is housed in an IP67- and IK10-rated enclosure that is suitable for outdoor use in areas at risk of vandalism. - H.264+, H.264, and MJPEG video compression
- IR cut filter with auto switch enables day and night functionality
- Camera pivots 0-355° horizontally and 0-75° vertically
- 120 dB wide dynamic range
- Image settings include rotate mode, saturation, brightness, contrast, and sharpness
- Zone configurable backlight compensation
- Region of interest support
- Network-attached storage (NAS) support
- Analytics include dynamic analysis, intrusion, line crossing, motion, and face detection
- General functions include one-key reset, anti-flicker, heartbeat, mirror, password protection, privacy masking, watermark, IP address filtering, and anonymous access
- Alarm triggers include tampering alarm, network disconnect, IP address conflict, and storage exception
- Compatible with Hik-Connect, iOS, and Android
- Wi-Fi Features
-
- 164' wireless range
- IEEE 802.11b/g/n wireless standards
- 2.4 to 2.4835 GHz frequency range
- 20/40 MHz channel bandwidth support
- CCK, QPSK, and BPSK protocols for 802.11b
- OFDM protocol for 802.11g/n
- 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS security
- 11 Mb/s transfer rate for 802.11b
- 54 Mb/s transfer rate for 802.11g
- Up to 150 Mb/s transfer rate for 802.11n
UPC: 842571111293 In the Box Hikvision DS-2CD2122FWD-IWS 2MP Outdoor Wi-Fi Network Dome Camera with Night Vision & 4mm Lens Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-2CD2122FWD-IWS 2MP Outdoor Wi-Fi Network Dome Camera with Night Vision & 4mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CD2122FWD-IWS Specs | | | Sensor | 2 MP 1/2.8" CMOS | | Lens Mount | M12 | | Focal Length | 4mm | | Maximum Aperture | f/2 | | Lens Field of View | Horizontal: 88° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.01 Lux
B&W: 0 Lux | | Shutter Speed | 1/100,000 to 1/3 Seconds | | Camera Angle Adjustment | Horizontal: 0 to 355°
Vertical: 0 to 75° | | | | Streaming Resolution | 1920 x 1080 at 30 fps (16 Mb/s ) | | Supported Video Compression | H.264, H.264+, MJPEG | | Multi-View Streaming | Yes, 2 Streams | | Automatic Gain Control | Yes | | | | Security | Anonymous Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection, Watermark | | Supported Protocols | Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NFS, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UDP, UPnP | | | | Application Programming Interface (API) | ONVIF Profiles S & G, ISAPI | | Analytics | Intrusion Detection
Line Crossing Detection
Motion Detection
Face Detection
Dynamic Analysis | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | Data Streaming | Yes | | | | Mobile Operating Systems | iOS, Android | | | | Recording Media | microSD (Up to 128 GB) | | Pan/Tilt | None | | Alarm I/O | 1 / 1 | | I/O Connections | 1 x RJ45
1 x Power | | IR Range | 98.43' / 30 m | | Video Management Software | Hik-Connect | | Internal Storage | None | | External Storage Options | NAS | | Power Source | DC, PoE 802.3af (15 W) | | Power Consumption | 5 W | | Material of Construction | Plastic, Metal (Unspecified Type) | | Operating Temperature | -22 to 140°F / -30 to 60°C | | Operating Humidity | 0 to 95% | | IP Rating | IP67 | | IK Rating | IK10 | | Dimensions |
