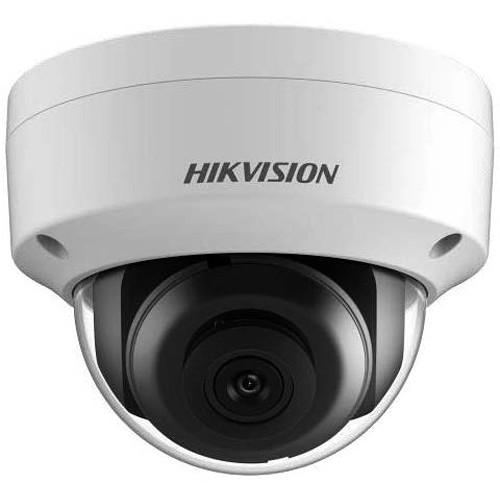

User Manual for Hikvision DS-2CD2125FWD-I 2MP Outdoor Network Dome Camera with Night Vision & 4mm Lens Click to enlarge the picture
Contents of the user manual for the Hikvision DS-2CD2125FWD-I 2MP Outdoor Network Dome
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
|
User manual for the Hikvision DS-2CD2125FWD-I 2MP Outdoor Network Dome contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The DS-2CD2125FWD-I 2MP Outdoor Network Dome Camera with Night Vision & 4mm Lens from Hikvision has a 1/2.8" progressive scan CMOS sensor to capture 1920 x 1080 resolution video at 30 fps. IR LEDs provide up to 100' of night vision. The 4mm fixed lens delivers a horizontal field of view of 86.4°. A built-in slot supports microSD/SDHC/SDXC cards up to 128GB. microSD cards are available separately. Integrated PoE technology simplifies connectivity by transferring power and data over one cable.
This camera is ONVIF-compliant for Profiles S & G, making it compatible with a wide range of surveillance devices. It is housed in an IP67- and IK10-rated enclosure that is suitable for outdoor use in areas at risk of vandalism. - EXIR 2.0 and DarkFighter technology offer visibility in demanding lighting conditions
- 10/100M self-adaptive Ethernet port
- H.265+, H.265, H.264+, H.264 compression
- IR cut filter enables day and night functionality
- Camera horizontally pivots from 0 to 355°, and from 0 to 75° vertically
- 120 dB wide dynamic range
- Image settings include rotate mode, brightness, contrast, saturation, and sharpness
- Alarm triggers include motion detection, tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, and HDD error
- General functions include one-key reset, anti-flicker, heartbeat, mirror, password protection, privacy masking, watermark, and IP address filtering
- Smart features include line crossing detection, intrusion detection, unattended baggage detection, object removal detection, and face detection
UPC: 842571101997 In the Box Hikvision DS-2CD2125FWD-I 2MP Outdoor Network Dome Camera with Night Vision & 4mm Lens Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-2CD2125FWD-I 2MP Outdoor Network Dome Camera with Night Vision & 4mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision Value Series Specs | | | Image Sensor | 1/2.8" progressive scan CMOS | | Minimum Illumination | Color: 0.008 lux at f/1.6 with AGC on
B&W: 0 lux with IR | | Shutter Speed | 1/100,000 to 1/3 seconds | | Slow Shutter | Supported | | Focal Length | 4mm | | Horizontal Field of View (degree) | 86.4° | | Lens Mount | M12 | | Aperture | f/1.6 | | Camera Angle Adjustment | Horizontal: 0 to 355°
Vertical: 0 to 75°
Rotation: 0 to 355° | | Day/Night | IR cut filter | | IR Range | Up to 100' / 30 m | | Digital Noise Reduction | 3D-DNR | | Wide Dynamic Range | 120 dB | | | | Video Compression | Main Stream: H.265+, H.265, H.264+, H.264
Sub Stream: H.265+, H.265, H.264+, H.264, MJPEG
Third Stream: H.265+, H.265, H.264+, H.264 | | Type | H.264 Type: Main Profile, High Profile
H.264+ supported
H.265 Type: Main Profile
H.265+ supported | | Video Bit Rate | 32 kb/s to 16 Mb/s | | | | Maximum Resolution | 1920 x 1080 | | Maximum Frame Rates | Main Stream: 30 fps at 1920 x 1080, 1280 x 960, 1280 x 720
Sub Stream: 30 fps at 640 x 360, 352 x 240
Third Stream: 30 fps at 1280 x 720, 640 x 360, 352 x 240 | | Image Enhancement | BLC, 3D-DNR | | Image Settings | Rotate mode supported
Brightness, contrast, saturation, and sharpness are adjustable via web browser and client software | | ROI | Separate support for one fixed region in main and sub streams | | Day/Night Switching | Auto, scheduled | | | | Network Storage | Supports microSD/SDHC/SDXC cards up to 128 GB, local storage, NAS (NFS, SMB/CIFS), ANR | | Alarm Triggers | Motion detection, tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, and HDD error | | Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 | | API | ONVIF Profiles S and G, PSIA, CGI, ISAPI | | General Functions | One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy masking, watermark, and IP address filtering | | | | Communication | 1 x RJ45 10/100M self-adaptive Ethernet port | | Onboard Storage | Built-in microSD/SDHC/SDXC slot up to 128 GB | | | | Behavior Analysis | Line crossing detection, intrusion detection, unattended baggage detection, and object removal detection | | Line Crossing Detection | Cross a pre-defined virtual line, up to 1 pre-defined virtual line supported | | Intrusion Detection | Enter and loiter in a pre-defined virtual region, up to 1 pre-defined virtual region supported | | Object Removal | Objects removed from a pre-defined region, such as exhibits on display | | Unattended Baggage | Objects left over in the pre-defined region such as baggage, purses, and dangerous materials | | Face Detection | Human face appears in the image can be detected and trigger linkage | | | | Operating Temperature | -22 to 140°F / -30 to 60°C | | Operating Humidity | ≤95% non-condensing | | Power | 12 VDC ±25%
PoE (802.3af, class 3) | | Power Consumption | VDC: 5 W
PoE: 6.5 W | | IP Rating | IP67 | | IK Rating | IK10 | | Certifications | UL, CE, FCC, CSA | | Dimensions (Ø x H) | 4.4 x 3.2" / 111 x 82.4 mm | | Weight | 1.1 lb / 500 g | | | | Package Weight | 1.87 lb | | Box Dimensions (LxWxH) | 5.35 x 5.3 x 4.35" |
