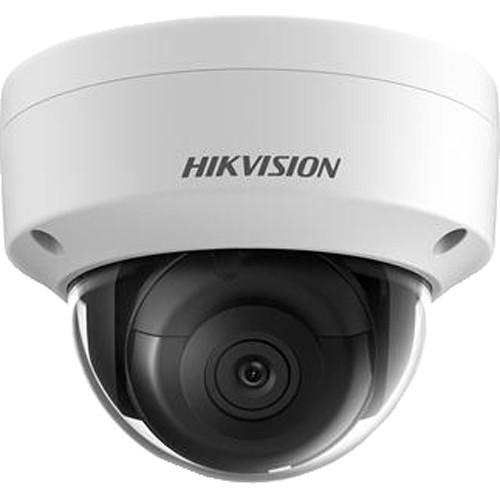

User Manual for Hikvision DS-2CD2135FWD-I 3MP Outdoor Network Dome Camera with Night Vision & 8mm Lens Click to enlarge the picture
Contents of the user manual for the Hikvision DS-2CD2135FWD-I 3MP Outdoor Network Dome
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
|
User manual for the Hikvision DS-2CD2135FWD-I 3MP Outdoor Network Dome contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The DS-2CD2135FWD-I 3MP Outdoor Network Dome Camera from Hikvision uses a 1/2.8" progressive scan CMOS sensor to capture 2048 x 1536 resolution video at 30 fps. IR LEDs provide up to 100' of night vision. The camera's 8mm fixed lens delivers a 37° horizontal field of view. An onboard memory card slot accepts microSD/SDHC/SDXC cards up to 128GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This dome camera is compliant with ONVIF profiles S and G, making it compatible with a wide range of surveillance devices. The camera is housed in an IP67- and IK10-rated enclosure that is suitable for outdoor use in areas at risk of vandalism. - IR cut filter for day and night functionality
- Darkfighter and EXIR 2.0 technology for visibility in low-light conditions
- H.265+, H.265, H.264+, H.264, and MJPEG video compressions
- Camera pivots horizontally from 0 to 355° and vertically from 0 to 75°
- 120 dB wide dynamic range
- Image settings include rotate mode, brightness, contrast, saturation, and sharpness
- Region of interest (ROI) for one fixed region (main stream and sub stream)
- Alarm triggers include motion detection, tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, and HDD error
- General functions include one-key reset, anti-flicker, heartbeat, mirror, password protection, privacy masking, watermark, and IP address filtering
- Motion, line crossing, intrusion, unattended baggage, object removal, and face detection
- Network-attached storage support
- CSA, FCC, CE, and cUL certified
UPC: 842571105971 In the Box Hikvision DS-2CD2135FWD-I 3MP Outdoor Network Dome Camera with Night Vision & 8mm Lens Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-2CD2135FWD-I 3MP Outdoor Network Dome Camera with Night Vision & 8mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision Value Series Specs | | | Sensor | 3 MP 1/2.8" CMOS | | Lens Mount | M12 | | Focal Length | 8mm | | Maximum Aperture | f/1.6 | | Lens Field of View | Horizontal: 37° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.008 Lux
B&W: 0 Lux | | Shutter Speed | 1/100,000 to 1/3 Seconds | | Camera Angle Adjustment | Horizontal: 0 to 355°
Vertical: 0 to 75° | | | | Streaming Resolution | 2048 x 1536 at 30 fps (16 Mb/s ) | | Supported Video Compression | H.264, H.264+, H.265, H.265+, MJPEG | | Multi-View Streaming | Yes, 3 Streams | | Automatic Gain Control | Yes | | | | Security | HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection, Watermark | | Supported Protocols | DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UDP, UPnP | | | | Application Programming Interface (API) | ONVIF Profiles S & G, PSIA, CGI, ISAPI | | Analytics | Motion Detection
Line Crossing Detection
Intrusion Detection
Object Removal Detection
Unattended Baggage Removal
Face Detection | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | Data Streaming | Yes | | | | Recording Media | microSD (Up to 128 GB) | | Pan/Tilt | None | | I/O Connections | 1 x RJ45
1 x Power | | IR Range | 100' / 30.48 m | | Internal Storage | None | | External Storage Options | NAS | | Power Source | DC, PoE 802.3af (15 W) | | Power Consumption | DC: 5.5 W
PoE: 7 W | | Operating Temperature | -22 to 140°F / -30 to 60°C | | Operating Humidity | 0 to 95% | | IP Rating | IP67 | | IK Rating | IK10 | | Dimensions |
