User manual

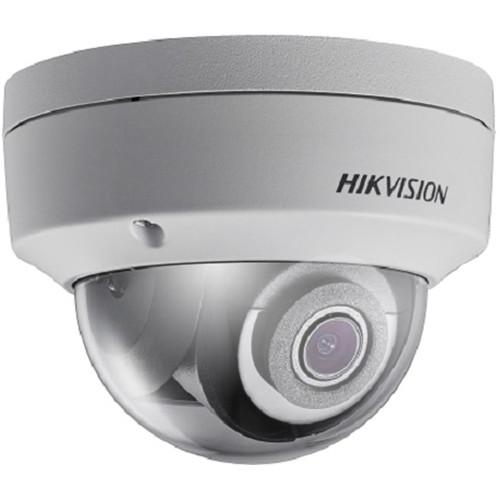

Hikvision DS-2CD2143G0-I 4MP Outdoor Network Dome

User Manual for Hikvision DS-2CD2143G0-I 4MP Outdoor Network Dome Camera with Night Vision & 2.8mm Lens

• Product category: Wired IP Cameras Hikvision
• Brand: Hikvision
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Hikvision Wired IP Cameras

Product description

• EXIR 2.0 technology for visibility in low-light conditions

• IR cut filter for day and night functionality

• H.265+, H.265, H.264+, H.264, and MJPEG video compressions

• Scalable video coding (SVC) for H.264 and H.265

• Triple streaming

• Manual focus

• Camera pivots horizontally from 0 to 360° and vertically from 0 to 75°

• 0 to 360° rotation

• Slow shutter support

• 120 dB wide dynamic range

• 3D-DNR

• Backlight compensation

• Image settings include rotate mode, saturation, brightness, contrast, and sharpness

• Region of interest (ROI) for one fixed region (main stream and sub stream)

• Alarm triggers include motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, and HDD error

• Line crossing, intrusion, and face detection

• General functions include one-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy masking, watermark, and IP address filtering

• Environmental noise filtering

• Up to 32 users with 3 host levels (admin, operator, and user)

• Up to six channels in simultaneous live view

• Alarm inputs and outputs

• 100M Ethernet port

• Reset button

• Compatible with Internet Explorer 8 or higher, Chrome 31 to 44, Firefox 30.0 to 51, Safari 8.0 or higher, iOS, Android, iVMS-4200, and Hik-Connect

• Network-attached storage support

• CSA, FCC, CE, and cUL certified

• TVS 2000V lightning, surge, and transient voltage protection

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

Hikvision DS-2CD2143G0-I Specs

Recording Media	microSD (Up to 128 GB)
Pan/Tilt	None
Alarm I/O	1 / 1
I/O Connections	1 x RJ45 1 x Power
IR Illuminators	850 nm
IR Range	100' / 30.48 m
Video Management Software	iVMS-4200, Hik-Connect
Internal Storage	None
External Storage Options	NAS
Power Source	DC, PoE 802.3af (15 W)
Power Consumption	DC: 6 W PoE: 7.5 W
Material of Construction	Metal (Unspecified Type)
Operating Temperature	-22 to 140°F / -30 to 60°C
Operating Humidity	0 to 95%
IP Rating	IP67
IK Rating	IK10
