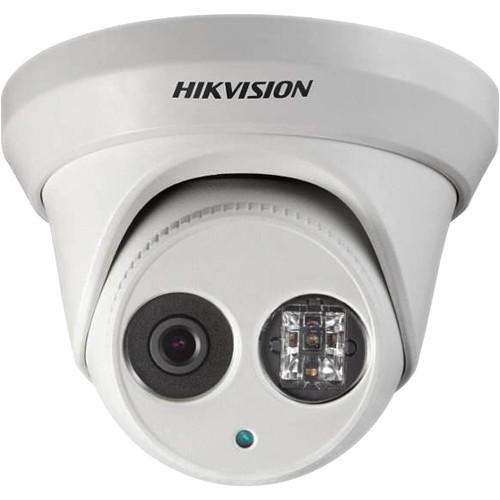

User Manual for Hikvision DS-2CD2322WD-I 2MP Outdoor Network Turret Camera with Night Vision & 2.8mm Lens Click to enlarge the picture
Contents of the user manual for the Hikvision DS-2CD2322WD-I 2MP Outdoor Network Turret
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
|
User manual for the Hikvision DS-2CD2322WD-I 2MP Outdoor Network Turret contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The DS-2CD2322WD-I 2MP Outdoor Network Turret Camera with Night Vision & 2.8mm Lens from Hikvsion has a 2MP 1/2.8" progressive scan CMOS sensor to capture 1920 x 1080 resolution video at 30 fps. EXIR technology delivers up to 100' of night vision. The 2.8mm fixed lens features a 109° horizontal field of view. Integrated PoE technology allows data and power to be transmitted over one cable.
This device is ONVIF-compliant for Profiles S and G, making it compatible with a wide range of surveillance products. It is housed in an IP67-rated enclosure that is suitable for outdoor use. - H.264+, H.264, and MJPEG compression
- IR cut filter enables true day and night functionality
- Camera pivots from 0-360° horizontally, and from 0-75° vertically
- Zone configured backlight compensation
- Image settings include compression, color, saturation, brightness, contrast, sharpness, rotate mode, and privacy mask
- Alarm triggers include motion detection, line crossing detection, intrusion detection, tamper alarm, network disconnect, IP address conflict, and storage exception
- 32 kb/s to 16 Mb/s video bit rate
UPC: 813908022513 In the Box Hikvision DS-2CD2322WD-I 2MP Outdoor Network Turret Camera with Night Vision & 2.8mm Lens Limited 3-Year Warranty Brochure PDF 808.8kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-2CD2322WD-I 2MP Outdoor Network Turret Camera with Night Vision & 2.8mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CD2322WD-I-2.8MM Specs | | | Sensor | 2 MP 1/2.8" CMOS | | Lens Mount | M12 | | Focal Length | 2.8mm | | Maximum Aperture | f/2 | | Lens Field of View | Horizontal: 109° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.028 Lux
B&W: 0 Lux | | Shutter Speed | 1/10000 to 1/3 Seconds | | Camera Angle Adjustment | Horizontal: 0 to 360°
Vertical: 0 to 75° | | | | Streaming Resolution | 1920 x 1080 at 30 fps
1280 x 960 at 30 fps
1280 x 720 at 30 fps | | Supported Video Compression | H.264, H.264+, MJPEG | | Multi-View Streaming | Yes, 2 Streams | | Automatic Gain Control | Yes | | | | Security | Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, Lockout, Password Protection, Watermark | | Supported Protocols | Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NFS, NTP, ONVIF Profile G, ONVIF Profile S, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UDP, UPnP | | | | Application Programming Interface (API) | ONVIF Profiles S & G, PSIA, CGI, ISAPI | | Analytics | Line crossing detection, intrusion detection | | Event Trigger | Yes | | Event Action | Notification, Alarm | | | | Recording Media | None | | Pan/Tilt | None | | I/O Connections | 1 x RJ45
1 x Power | | IR Range | 100' / 30.48 m | | Internal Storage | None | | External Storage Options | NAS | | Power Source | DC, PoE 802.3af (15 W) | | Power Consumption | 7.5 W | | Operating Temperature | -22 to 140°F / -30 to 60°C | | Operating Humidity | 0 to 95% | | IP Rating | IP67 | | Dimensions |
