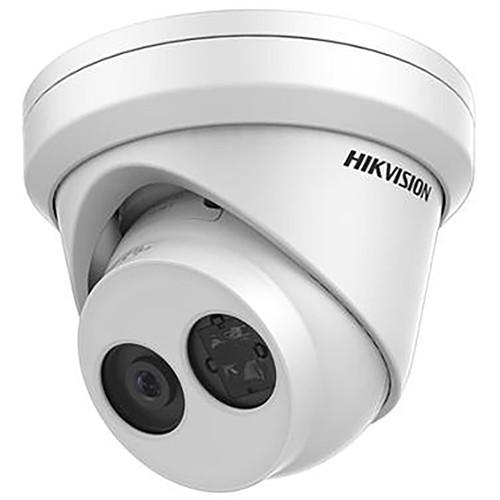

User Manual for Hikvision DS-2CD2345FWD-I 4MP Outdoor Network Turret Camera with Night Vision & 6mm Lens Click to enlarge the picture
Contents of the user manual for the Hikvision DS-2CD2345FWD-I 4MP Outdoor Network Turret
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
|
User manual for the Hikvision DS-2CD2345FWD-I 4MP Outdoor Network Turret contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The DS-2CD2345FWD-I from Hikvision uses a 1/2.5" progressive scan CMOS sensor to capture 2688 x 1520 resolution video at up to 30 fps. IR LEDs provide up to 98' of night vision. The 6mm fixed lens delivers a 53° horizontal field of view. An onboard slot accepts microSD/SDHC/SDXC cards up to 128GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This turret camera is compliant with ONVIF profiles S and G, making it compatible with a wide range of surveillance devices. It is housed in an IP67-rated metal enclosure that is suitable for outdoor use. - Darkfighter technology for visibility in low-light conditions
- IR cut filter enables day and night functionality
- H.265+, H.265, H.264+, H.264, and MJPEG video compression
- Scalable video coding (SVC) for H.265 and H.264
- Camera pivots horizontally from 0 to 360° & vertically from 0 to 75°
- Backlight and highlight compensation
- 120 dB wide dynamic range
- Image settings include rotate mode, saturation, brightness, contrast, sharpness, and white balance
- General functions include one-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy masking, watermark, and IP address filtering
- ROI (region of interest) for one fixed region (main stream and sub stream)
- Analytics include line crossing, intrusion, object removal, unattended baggage, scene change, face, and motion detection
- Alarm triggers include motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, and HDD error
- 100M self-adaptive Ethernet port
- Network-attached storage (NAS) support
- Simultaneous live view for up to 6 channels
- Up to 32 users at 3 host levels (admin, operator, and user)
- Compatible with Internet Explorer 8 or higher, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0 or higher, iOS, Android, iVMS-4200, iVMS-4500, iVMS-5200, and Hik-Connect
In the Box Hikvision DS-2CD2345FWD-I 4MP Outdoor Network Turret Camera with Night Vision & 6mm Lens Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-2CD2345FWD-I 4MP Outdoor Network Turret Camera with Night Vision & 6mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CD2345FWD-I Specs | | | Sensor | 4 MP 1/2.5" CMOS | | Lens Mount | M12 | | Focal Length | 6mm | | Maximum Aperture | f/1.6 | | Lens Field of View | Horizontal: 53°
Vertical: 30°
Diagonal: 61° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.008 Lux
B&W: 0 Lux | | Shutter Speed | 1/100,000 to 1/3 Seconds | | Camera Angle Adjustment | Horizontal: 0 to 360°
Vertical: 0 to 75° | | | | Streaming Resolution | 2688 x 1520 at 30 fps (16 Mb/s ) | | Supported Video Compression | H.264, H.264+, H.265, H.265+, MJPEG | | Multi-View Streaming | Yes, 3 Streams | | Automatic Gain Control | Yes | | | | Security | HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection, Watermark | | Supported Protocols | Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UPnP | | | | Application Programming Interface (API) | ONVIF Profiles S & G, ISAPI | | Analytics | Line Crossing Detection
Intrusion Detection
Object Removal Detection
Unattended Baggage Detection
Scene Change Detection
Face Detection
Motion Detection | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | Data Streaming | Yes | | | | Mobile Operating Systems | iOS, Android | | | | Recording Media | microSD (Up to 128 GB) | | Pan/Tilt | None | | I/O Connections | 1 x RJ45
1 x Power | | IR Illuminators | 850 nm | | IR Range | 98.43' / 30 m | | Video Management Software | iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect | | Internal Storage | None | | External Storage Options | NAS | | Power Source | DC, PoE 802.3af (15 W) Ø0.2" / Ø5.5 mm coaxial plug for DC power | | Power Consumption | DC: 6 W
PoE: 7.5 W | | Material of Construction | Metal (Unspecified Type) | | Operating Temperature | -22 to 140°F / -30 to 60°C | | Operating Humidity | 0 to 95% | | IP Rating | IP67 | | Dimensions |
