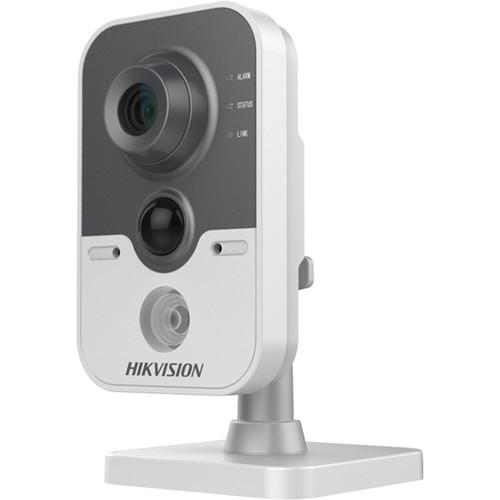

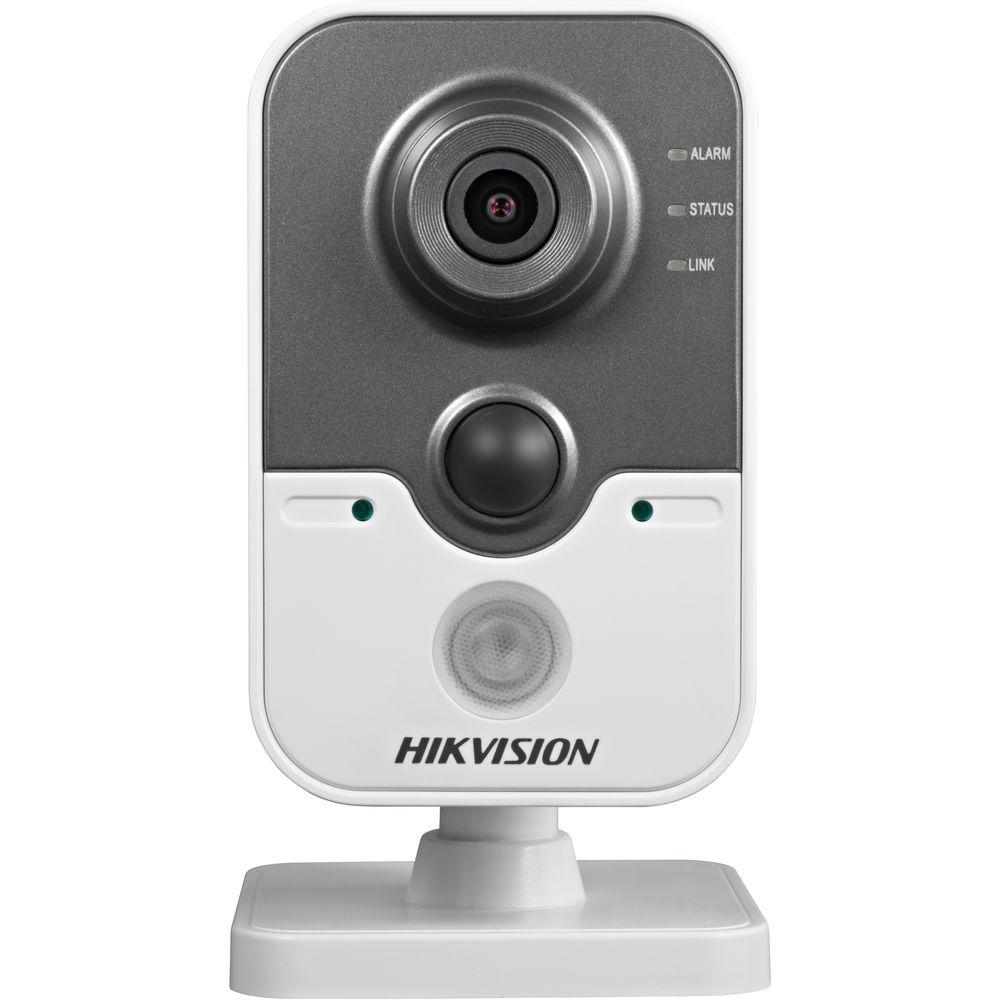

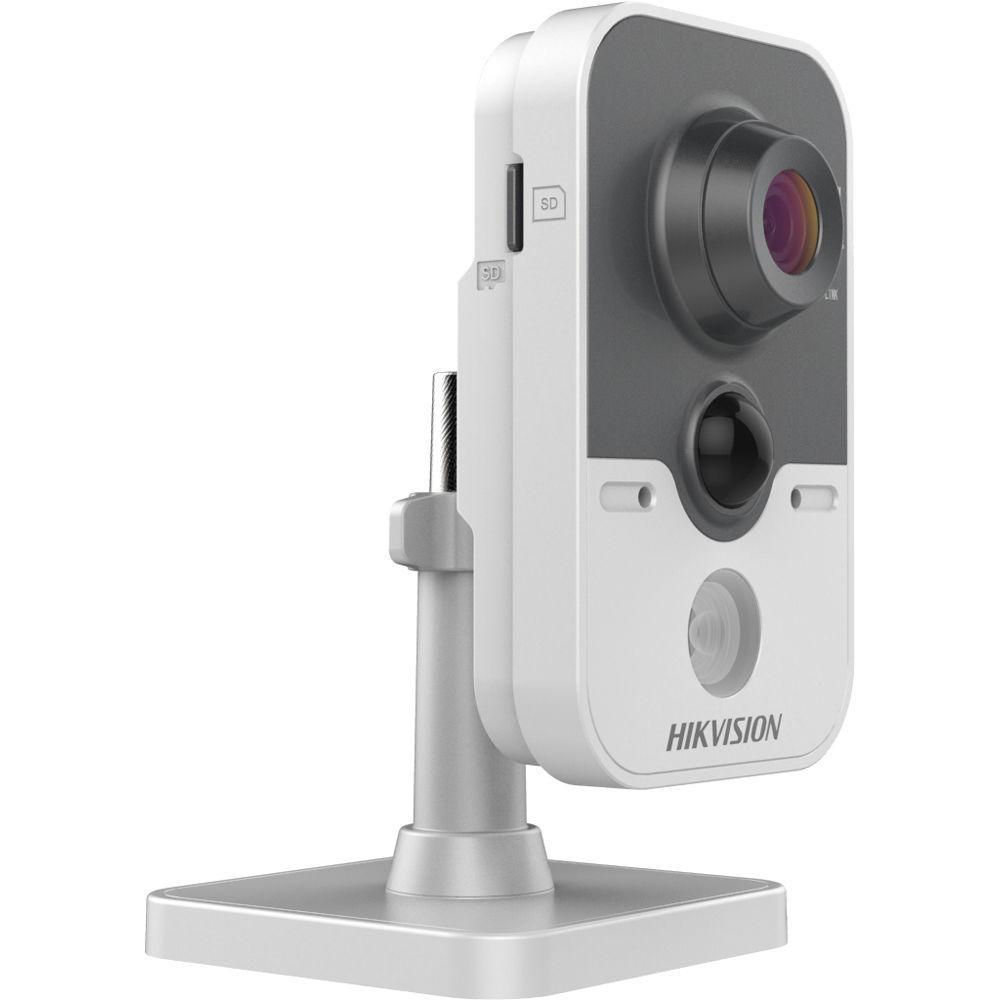

User Manual for Hikvision DS-2CD2422FWD-IW 2MP Wi-Fi Network Cube Camera with Night Vision & 2.8mm Lens Click to enlarge the picture
Contents of the user manual for the Hikvision DS-2CD2422FWD-IW 2MP Wi-Fi Network Cube
- Product category: Wireless Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wireless Cameras
 |
User manual for the Hikvision DS-2CD2422FWD-IW 2MP Wi-Fi Network Cube contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The DS-2CD2422FWD-IW 2MP Wi-Fi Network Cube Camera with Night Vision & 2.8mm Lens from Hikvision has a 1/2.7" progressive scan CMOS to capture 1920 x 1080 resolution video at up to 30 fps. This Wi-Fi camera has a night vision range up to 33'. Its 2.8mm fixed lens delivers a wide 115.6° horizontal field of view. Two-way audio is possible thanks to a built-in microphone and speaker. H.264 video compression keeps file sizes manageable while maintaining the best quality possible. Integrated PoE technology simplifies connectivity by enabling the transmission of data and power through one cable. An onboard microSD/SDHC/SDXC slot supports cards up to 128GB. microSD cards are available for purchase separately.
This device is ONVIF-compliant for Profiles S and G, making it compatible with a wide range of surveillance devices. - IR cut filter with auto switch allows for true day and night functionality
- 120 dB wide dynamic range
- Detection modes include intrusion detection, line crossing detection, motion detection, and dynamic analysis
- Alarm triggers include tampering alarm, HDD full, HDD error, network disconnected, IP address conflicted, and illegal login
- Image settings include rotate mode, brightness, saturation, sharpness, and contrast
- Define custom regions of interest
- Remote viewing via Hik-Connect or iVMS-4500 app
UPC: 842571101089 In the Box Hikvision DS-2CD2422FWD-IW 2MP Wi-Fi Network Cube Camera with Night Vision & 2.8mm Lens Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-2CD2422FWD-IW 2MP Wi-Fi Network Cube Camera with Night Vision & 2.8mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CD2422FWD-IW Specs | | | Image Sensor | 1/2.7" progressive scan CMOS | | Minimum Illumination | Color: 0.01 lux at f/1.2 with AGC on
B&W: 0 lux with IR | | Shutter Speed | 1/3 to 1/100,000 seconds | | Lens | 2.8mm | | Horizontal Field of View (degree) | 115.6° | | Lens Mount | M12 | | Day & Night | IR cut filter with auto switch | | IR Range | 33' / 10 m | | PIR Sensor | Angle: 90°
Range: 26.2' / 8 m | | Digital Noise Reduction (DNR) | 3D-DNR | | Wide Dynamic Range | 120 dB WDR | | | | Video Compression | H.264/H.265/MJPEG | | H.264 Profile | Baseline profile, main profile | | Video Bit Rate | 32 kb/s to 8 Mb/s | | Dual Stream | Supported | | Audio Compression | G.711/G.722.1/G.726/MP2L2 | | Audio Bit Rate | G.711: 64 kb/s
G.722.1: 16 kb/s
G.726: 16 kb/s
MP2L2: 32-128 kb/s | | | | Maximum Resolution | 1920 x 1080 | | Maximum Frame Rate | Main Stream:
60 Hz: 1920 x 1080 / 1280 x 960 / 1280 x 720 at 30 fps
50 Hz: 1920 x 1080 / 1280 x 960 / 1280 x 720 at 25 fps
Sub Stream:
60 Hz: 640 x 360 / 352 x 240 at 30 fps
50 Hz: 640 x 360 / 352 x 288 at 25 fps | | Image Settings | Supports rotate mode, brightness, saturation, sharpness, contrast is adjustable via web browser and client software | | Day/Night Switching | Supports auto, scheduled, and triggered by alarm input | | Other Functions | Mirror, WDR, BLC, ROI | | | | Storage | Supports microSD/SDHC/SDXC cards up to 128 GB
NAS: NFS, SMB/CIFS
ANR | | Detection | Intrusion detection, line crossing detection, motion detection, dynamic analysis | | Alarm Triggers | Tampering alarm, HDD full, HDD error, network disconnected, IP address conflicted, illegal login | | Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 | | Standard | ONVIF Profiles S and G, PSIA, CGI, ISAPI | | General Functions | One-key reset, anti-flicker, dual streams, heartbeat, password protection, privacy mask, watermark, IP address filtering | | | | Communication Interface | 1 x RJ45 10/100M Ethernet port | | Audio | Built-in microphone and speaker | | Alarm | 1 x alarm input, 1 x alarm output | | Reset | Yes | | | | Wireless Standards | IEEE 802.11b/g/n | | Frequency Range | 2.4-2.4835 GHz | | Channel Bandwidth | 20/40 MHz support | | Protocols | 802.11b: CCK, QPSK, BPSK
802.11g/n: OFDM | | Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS | | Transmit Output Power | 802.11b: 17 ±1.5 dBm at 11 Mb/s
802.11g: 14 ±1.5 dBm at 54 Mb/s
802.11n: 12.5 ±1.5 dBm | | Reception Sensitivity | 802.11b: -90 dBm at 11 Mb/s typical
802.11g: -75 dBm at 54 Mb/s typical
802.11n: -74 dBm typical | | Transfer Rates | 802.11b: 11 Mb/s
802.11g: 54 Mb/s
802.11n: Up to 150 Mb/s | | Wireless Range | 164' / 50 m (performance varies based on actual environment) | | | | Operating Conditions | 14 to 104°F / -10 to 40°C
Humidity 95% or less, non-conforming | | Power Supply | 12 VDC ±25%, PoE 802.3af | | Power Consumption | 5 W max | | Case Material | Plastic | | Dimensions | 2.85 x 3.62 x 5.17" / 72.3 x 91.9 x 131.3 mm | | Weight | 0.88 lb / 400 g | | | | Package Weight | 1.16 lb | | Box Dimensions (LxWxH) | 9.0 x 5.8 x 4.3" |
