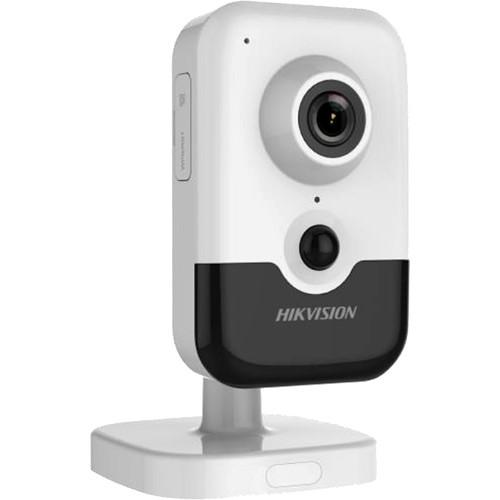

User Manual for Hikvision DS-2CD2425FWD-IW 2MP Wi-Fi Network Cube Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Hikvision DS-2CD2425FWD-IW 2MP Wi-Fi Network Cube
- Product category: Wireless Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wireless Cameras
|
User manual for the Hikvision DS-2CD2425FWD-IW 2MP Wi-Fi Network Cube contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The DS-2CD2425FWD-IW 2MP Wi-Fi Network Cube Camera with Night Vision from Hikvision uses a 1/2.8" progressive scan CMOS sensor to capture 1920 x 1080 resolution video at up to 30 fps. It has a night vision range up to 33'. The camera's 2.8mm fixed lens delivers a 108° horizontal field of view to cover a wide area. Two-way audio is possible thanks to a built-in speaker and microphone. An onboard memory card slot accepts microSD/SDHC/SDXC cards up to 128GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transmission of data and power through one cable.
This Wi-Fi network cube camera is compliant with ONVIF profiles S and G, making it compatible with a wide range of surveillance devices. - Wireless range up to 164'
- Darkfighter technology for visibility in low-light conditions
- IR cut filter enables day and night functionality
- H.265+, H.265, H.264+, H.264, and MJPEG video compressions
- 3D-DNR, backlight compensation, and highlight compensation
- Alarm triggers include motion detection, video tampering, network disconnected, IP address conflict, HDD full, HDD error, PIR, and illegal login
- Analytics include line crossing, intrusion, unattended baggage, object removal, scene change, and face detection
- Region of interest supports one fixed region for main stream and sub stream separately
- Environment noise filtering
- Simultaneous live view for up to six channels
- Up to 32 users at 3 host levels (admin, operator, and user)
- Compatible with Internet Explorer, Chrome, Firefox, Safari, iOS, Android, iVMS-4200, iVMS-4500, iVMS-5200, and Hik-Connect
- Network-attached storage support
UPC: 842571117790 In the Box Hikvision DS-2CD2425FWD-IW 2MP Wi-Fi Network Cube Camera with Night Vision Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-2CD2425FWD-IW 2MP Wi-Fi Network Cube Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CD2425FWD-IW 2.8MM Specs | | | Image Sensor | 1/2.8" Progressive Scan CMOS | | Minimum Illumination | Color: 0.005 lux at f/1.2 with AGC
B&W: 0 lux with IR
Color: 0.009 lux at f/1.6 with AGC
B&W: 0 lux with IR | | Shutter Speed | 1/100,000 to 1/3 Seconds | | Slow Shutter | Yes | | Day & Night | IR Cut Filter | | IR | Range: 33' / 10 m
Wavelength: 850 nm | | PIR Range | 33' / 10 m | | PIR Angle | Horizontal: 90°
Vertical: 80° | | Digital Noise Reduction | 3D-DNR | | Wide Dynamic Range | 120 dB | | 3-Axis Adjustment | Horizontal: 0 to 360°
Vertical: 0 to 90°
Rotation: 0 to 360° | | | | Focal Length | 2.8mm | | Focus | Fixed | | Aperture | f/1.6 | | Field of View | Horizontal: 108°
Vertical: 59°
Diagonal: 129° | | Lens Mount | M12 | | | | Video Compression | Main Stream: H.265+, H.265, H.264+, H.264
Sub Stream: H.265, H.264, MJPEG
Third Stream: H.265, H.264 | | Compression Type | H.264: Main Profile, High Profile
H.265: Main Profile | | Video Bit Rate | 32 kb/s to 16 Mb/s | | Audio Compression | G.711, G.722.1, G.726, MP2L2, PCM | | Audio Bit Rates | G.711: 64 kb/s
G.722.1: 16 kb/s
G.726: 16 kb/s
MP2L2: 32-160 kb/s | | | | Maximum Resolution | 1920 x 1080 | | Frame Rates | Main Stream
60 Hz: 1920 x 1080, 1280 x 960, 1280 x 720 at 30 fps
50 Hz: 1920 x 1080, 1280 x 960, 1280 x 720 at 25 fps
Sub Stream
60 Hz: 640 x 480, 640 x 360, 320 x 240 at 30 fps
50 Hz: 640 x 480, 640 x 360, 320 x 240 at 25 fps
Third Stream
60 Hz: 1920 x 1080, 1280 x 720, 640 x 360, 352 x 240 at 30 fps
50 Hz: 1920 x 1080, 1280 x 720, 640 x 360, 352 x 288 at 25 fps | | Image Setting | Rotate Mode, Saturation, Brightness, Contrast, Sharpness, and White Balance | | Image Enhancement | 3D-DNR, Backlight Compensation, Highlight Compensation | | Day/Night Switching | Day, Night, Auto, Schedule | | | | Behavior Analysis | Line Crossing Detection
Intrusion Detection
Unattended Baggage Detection
Object Removal Detection | | Exception Detections | Scene Change Detection | | Face Detection | Yes | | Region of Interest | Supports One Fixed Region for Main Stream and Sub Stream Seperately | | | | Storage | Supports microSD/SDHC/SDXC Cards up to 128 GB (Available Separately)
NAS: NFS/SMB/CIFS, ANR | | Alarm Triggers | Motion Detection, Video Tampering, Network Disconnected, IP Address Conflict, HDD Full, HDD Error, PIR, Illegal Login | | Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, QoS, IPv6 | | General Functions | One-Key Reset, Anti-Flicker, Three Streams, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark, IP Address Filtering | | Firmware | V5.5.80 | | API | ONVIF Profiles S & G, ISAPI | | Simultaneous Live View | Up to Six Channels | | User/Host Level | Up to 32 Users
Host Levels: Admin, Operator, User | | Client | iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect | | Web Browser Support | Plug-In Required Live View: Internet Explorer 8 or Higher, Chrome 41.0 to 44, Firefox 30.0 to 51, Safari 8.0 to 11
Plugin-Free Live View: Chrome 45.0 or Higher, Firefox 52.0 or Higher | | | | Environment Noise Filtering | Yes | | Audio Sampling Rate | 8, 16, 32, 44.1, 48 kHz | | | | Audio | 1 x Built-In Microphone, 1 x Built-In Speaker, Mono Sound | | Communication Interface | 1 x RJ45 100M Self-Adaptive Ethernet Port | | Storage | Built-In microSD/SDHC/SDXC Card Slot | | SVC | Supports H.264 and H.265 Encoding | | Reset Button | Yes | | | | Wireless Standards | IEEE 802.11b/g/n | | Frequency Range | 2.412 to 2.4835 GHz | | Channel Bandwidth | 20/40 MHz | | Protocols | 802.11b: DQPSK, DBPSK, CCK
802.11g/n: OFDM/64-QAM, 16-QAM, QPSK, BPSK | | Security | WPA, WPA2 | | Transfer Rates | 802.11b: 11 Mb/s
802.11g: 54 Mb/s
802.11n: Up to 150 Mb/s | | Wireless Range | 164' / 50 m | | | | Operating Conditions | 14 to 104°F / -10 to 40°C
Humidity <95%, Non-Condensing | | Power Supply | 12 VDC ±20%, PoE (802.3af, Class 3) | | Power Consumption and Current Draw | 12 VDC, 0.38 A, Maximum 7 W
PoE (802.3af, 36 to 57 V), 0.2 to 0.1 A, Maximum 7 W | | Material of Construction | Plastic | | Dimensions | 4.05 x 2.57 x 1.28" / 102.8 x 65.2 x 32.6 mm | | Weight | 0.28 lb / 128 g | | | | Package Weight | 1.14 lb | | Box Dimensions (LxWxH) | 9.0 x 6.0 x 4.1" |
