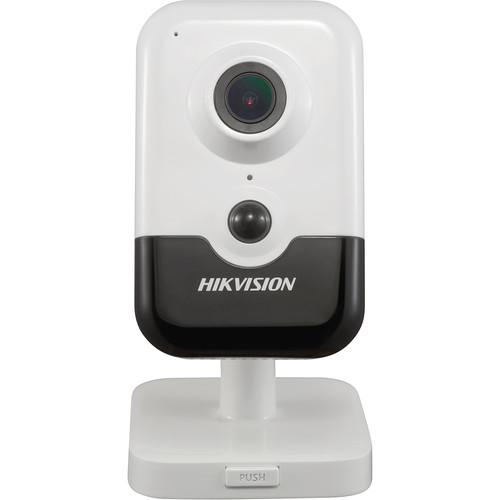

User Manual for Hikvision DS-2CD2455FWD-IW 5MP Wi-Fi Network Cube Camera with Night Vision & 2.8mm Lens Click to enlarge the picture
Contents of the user manual for the Hikvision DS-2CD2455FWD-IW 5MP Wi-Fi Network Cube
- Product category: Wireless Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wireless Cameras
|
User manual for the Hikvision DS-2CD2455FWD-IW 5MP Wi-Fi Network Cube contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The DS-2CD2455FWD-IW 5MP Wi-Fi Network Cube Camera with Night Vision & 2.8mm Lens from Hikvision uses a 1/2.8" progressive scan CMOS sensor to capture 2944 x 1656 resolution video at up to 20 fps. The Wi-Fi camera provides a night vision range up to 33'. It also has a PIR motion sensor range up to 33'. Its 2.8mm fixed lens delivers a 97° horizontal field of view. Two-way audio is possible thanks to a built-in microphone and speaker. Integrated PoE technology simplifies connectivity by enabling the transfer of data and power through a single cable. An onboard microSD/SDHC/SDXC slot supports cards up to 128GB. microSD cards are available separately.
This camera is ONVIF-compliant for Profiles S and G, making it compatible with a wide range of surveillance devices. - 10/100M self-adaptive Ethernet port
- IEEE 802.11b/g/n wireless standards
- Wireless range up to 164'
- EXIR technology increases visibility in low-light conditions
- IR cut filter for day and night functionality
- 120 dB wide dynamic range
- Image settings include rotate mode, saturation, brightness, contrast, and sharpness
- Camera pivots from 0 to 360° horizontally and from 0 to 90° vertically
- Analytics include line crossing, intrusion, unattended baggage, object removal, and face detention
- ROI (region of interest) supports 1 fixed region for main and sub streams, separately
- Alarm triggers include motion detection, video tampering, network disconnected, IP address conflict, HDD full, HDD error, PIR, and illegal login
- Environment noise filtering
- Management via Hik-Connect, iVMS-4200, and iVMS-5200
- Up to 32 users on 3 levels (admin, host, and user)
- Simultaneous live view for up to 6 channels
- Compatible with Internet Explorer 8 or higher, Chrome 31.0-44, Firefox 30.0-51, and Safari 8.0 or higher
- TVS 2000V lightning, surge, and voltage transient protection
UPC: 842571117806 In the Box Hikvision DS-2CD2455FWD-IW 5MP Wi-Fi Network Cube Camera with Night Vision & 2.8mm Lens Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-2CD2455FWD-IW 5MP Wi-Fi Network Cube Camera with Night Vision & 2.8mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CD2455FWD-IW Specs | | | Image Sensor | 1/2.8" progressive scan CMOS | | Minimum Illumination | Color: 0.01 lux at f/1.2 with AGC on
B&W: 0 lux with IR
Color: 0.028 lux at f/2.0 with AGC on
B&W: 0 lux with IR | | Shutter Speed | 1/100,000 to 1/3 seconds | | Slow Shutter | Yes | | Day & Night | IR cut filter | | Digital Noise Reduction | 3D-DNR | | Wide Dynamic Range | 120 dB | | 3-Axis Adjustment | Pan: 0 to 360°
Tilt: 0 to 90°
Rotate: 0 to 360° | | IR Range | 33' / 10 m | | IR Wavelength | 850 nm | | PIR Sensor | Angles:
Horizontal: 90°
Vertical: 80° | | PIR Range | 33' / 10 m | | | | Focal Length | 2.8mm | | Aperture | f/2.0 | | Field of View | Horizontal: 97°
Vertical: 54°
Diagonal: 113° | | Lens Mount | M12 | | | | Video Compression | Main Stream: H.265, H.264
Sub Stream: H.265, H.264, MJPEG
Third Stream: H.265, H.264 | | Compression Type | H.264: Main Profile, High Profile
H.265: Main Profile
H.265+ and H.264+ supported | | Video Bit Rate | 32 kb/s to 16 Mb/s | | Audio Compression | G722.1, G711ulaw, G711alaw, G726, MP2L2, PCM | | Audio Bit Rate | 64 kb/s (G.711)
16 kb/s (G.722.1)
16 kb/s (G.726)
32 to 160 kb/s (MP2L2) | | | | Behavior Analysis | Line crossing, intrusion, unattended baggage, and object removal detection | | Face Detection | Yes | | Region of Interest | Supports 1 fixed region for main stream and sub stream separately | | | | Maximum Resolution | 2944 x 1656 | | Frame Rates | Main Stream:
60 Hz: 2944 x 1656 at 20 fps
2560 x 1440, 1920 x 1080, 1280 x 720 at 30 fps
50 Hz: 2944 x 1656 at 20 fps
2560 x 1440, 1920 x 1080, 1280 x 720 at 25 fps
Sub Stream:
60 Hz: 640 x 480, 640 x 360, 320 x 240 at 30 fps
50 Hz: 640 x 480, 640 x 360, 320 x 240 at 25 fps
Third Stream:
60 Hz: 1280 x 720, 640 x 360, 352 x 240 at 30 fps
50 Hz: 1280 x 720, 640 x 360, 352 x 288 at 25 fps | | Image Settings | Rotate mode, saturation, brightness, contrast, and sharpness adjustable by client software or web browser | | Image Enhancement | Backlight compensation, 3D-DNR | | Day/Night Switching | Auto, schedule | | | | Storage | Supports microSD/SDHC/SDXC cards up to 128 GB, local storage, and NAS (NFS, SMB/CIFS), ANR | | Alarm Triggers | Motion detection, video tampering, network disconnected, IP address conflict, HDD full, HDD error, PIR, and illegal login | | Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, QoS, IPv6 | | General Functions | One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering | | API | ONVIF Profiles S & G, ISAPI | | Simultaneous Live View | Up to 6 channels | | User/Host Level | Up to 32 users
3 Levels: Administrator, Operator, User | | Client | iVMS-4200, Hik-Connect, iVMS-5200 | | Supported Web Browsers | Internet Explorer 8 or higher, Chrome 31.0-44, Firefox 30.0-51, and Safari 8.0 or higher | | | | Audio | 1 x built-in mic, 1 x built-in speaker, mono sound | | Communication Interface | 1 x RJ45 10/100M self-adaptive Ethernet port | | SVC | Supports H.264 and H.265 encoding | | Reset Button | Yes | | | | Wireless Standards | IEEE 802.11b/g/n | | Frequency Range | 2.412-2.4835 GHz | | Channel Bandwidth | 20/40 MHz | | Protocols | 802.11b: DQPSK, DBPSK, CCK
802.11g/n: OFDM/64-QAM, 16-QAM, QPSK, BPSK | | Security | WPA, WPA2 | | Transfer Rates | 802.11b: 11 Mb/s
802.11g: 54 Mb/s
802.11n: Up to 150 Mb/s | | Wireless Range | 164' / 50 m | | | | Noise Filter | Environment noise filtering | | Audio Sampling Rate | 16 kHz | | Operating Conditions | 14 to 104°F / -10 to 40°C
Humidity 95% or less, non-condensing | | Power Supply | 12 VDC ±25%, PoE (802.3af, class 3) | | Power Consumption and Current Draw | 12 VDC, 0.47 A, maximum 7 W
PoE (802.3af, 36 to 57 V), 0.2 to 0.1 A, maximum 7 W | | Protection | TVS 2000 V lightning, surge, and voltage transient protection | | Material | Plastic | | Dimensions | 4.05 x 2.57 x 1.28" / 102.9 x 65.3 x 32.5 mm | | Weight | 0.28 lb / 127 g | | | | Package Weight | 0.975 lb | | Box Dimensions (LxWxH) | 9.15 x 5.95 x 4.25" |
