Hikvision DS-2CD2525FWD-IS 2MP Outdoor Network Mini

Search your instruction manual in PDF to download

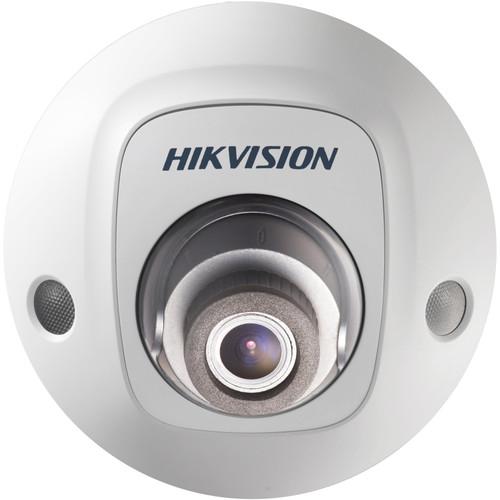

User Manual for Hikvision DS-2CD2525FWD-IS 2MP Outdoor Network Mini Dome Camera with Night Vision & 4mm Lens

Click to enlarge the picture
Hikvision DS-2CD2525FWD-IS 2MP Outdoor Network Mini Dome Camera with Night Vision & 4mm Lens Contents of the user manual for the Hikvision DS-2CD2525FWD-IS 2MP Outdoor Network Mini
  • Product category: Wired IP Cameras Hikvision
  • Brand: Hikvision
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Hikvision Wired IP Cameras

User manual for the Hikvision DS-2CD2525FWD-IS 2MP Outdoor Network Mini contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Hikvision product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!



Product description

The DS-2CD2525FWD-IS from Hikvision uses a 1/2.8" progressive scan CMOS sensor to capture 1920 x 1080 resolution video at up to 60 fps. EXIR 2.0 technology provides up to 30' of night vision. The 4mm fixed lens offers an 87° horizontal field of view. Two-way audio communication is possible thanks to a microphone and 3.5mm audio input and one audio output. An onboard slot accepts microSD/SDHC/SDXC cards up to 128GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.

This camera is ONVIF-compliant for profiles S and G, making it compatible with a wide range of surveillance devices. Its enclosure is IP66-rated for outdoor use & IK08-rated for impact protection.
  • Darkfighter technology for visibility in low-light conditions
  • IR cut filter enables day and night functionality
  • EXIR 2.0 technology for up to 30' of night vision
  • H.265+, H.265, H.264+, H.264, and MJPEG video compression
  • Scalable video coding (SVC) for H.265 and H.264
  • Slow shutter support
  • 3D-DNR
  • Backlight compensation
  • 120 dB wide dynamic range
  • Camera pivots horizontally from -30 to 30° & vertically from 0 to 75°
  • 0 to 360° rotation
  • Image settings include rotate mode, saturation, brightness, contrast, and sharpness
  • ROI (region of interest) supports one fixed region for main stream and sub stream
  • Analytics include line crossing, intrusion, object removal, unattended baggage, scene change, face, and motion detection
  • General functions include one-key reset, anti-flicker, three streams, heartbeat, password protection, privacy masking, watermark, and IP address filtering
  • Effective noise filtering
  • Two audio inputs and one audio output
  • 100M self-adaptive Ethernet port
  • Alarm I/O
  • Alarm triggers include motion detection, video tampering, network disconnected, IP address conflict, HDD full, HDD error, and illegal login
  • Network-attached storage (NAS) support
  • Simultaneous live view for up to 6 channels
  • Up to 32 users at 3 host levels (admin, operator, and user)
  • Compatible with Internet Explorer 8 or higher, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0 or higher, iOS, Android, iVMS-4200, iVMS-4500, and Hik-Connect
  • CSA, FCC, CE, and cUL certified
  • TVS 2000V lightning, surge, and voltage transient protection
UPC: 842571117936 In the Box Hikvision DS-2CD2525FWD-IS 2MP Outdoor Network Mini Dome Camera with Night Vision & 4mm Lens
  • Limited 3-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Hikvision DS-2CD2525FWD-IS 2MP Outdoor Network Mini Dome Camera with Night Vision & 4mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Hikvision DS-2CD2525FWD-IS Specs

    Sensor 2 MP 1/2.8" CMOS
    Lens Mount M12
    Focal Length 4mm
    Maximum Aperture f/1.6
    Lens Field of View Horizontal: 87°
    Vertical: 45°
    Diagonal: 102°
    IR Cut Filter Mechanical
    Day/Night Yes
    Minimum Illumination Color: 0.009 Lux
    B&W: 0 Lux
    Shutter Speed 1/100,000 to 1/3 Seconds
    Camera Angle Adjustment Horizontal: -30 to 30°
    Vertical: 0 to 75°
    Streaming Resolution 1920 x 1080 at 60 fps (16 Mb/s )
    Supported Video Compression H.264, H.264+, H.265, H.265+, MJPEG
    Multi-View Streaming Yes, 3 Streams
    Automatic Gain Control Yes
    Streaming Two-Way
    Audio Formats G.711, G.722.1, G.726, MP2L2, PCM
    Built-In Mic Yes
    External Audio Input 3.5 mm
    External Audio Output 3.5 mm
    Security HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection, Watermark
    Supported Protocols DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UPnP
    Application Programming Interface (API) ONVIF Profiles S & P, ISAPI
    Analytics Line Crossing Detection
    Intrusion Detection
    Unattended Baggage Detection
    Object Removal Detection
    Scene Change Detection
    Face Detection
    Motion Detection
    Event Trigger Yes
    Event Action Recording, Notification, Alarm
    Data Streaming Yes
    Mobile Operating Systems iOS, Android
    Recording Media microSD (Up to 128 GB)
    Pan/Tilt None
    Alarm I/O 1 / 1
    I/O Connections 1 x RJ45
    1 x Power
    IR Illuminators 850 nm
    IR Range 30' / 9.14 m
    Video Management Software iVMS-4200, iVMS-4500, and Hik-Connect
    Internal Storage None
    External Storage Options NAS
    Power Source DC, PoE 802.3af (15 W)
    Power Consumption DC: 7.5 W
    PoE: 9.5 W
    Material of Construction Plastic, Metal (Unspecified Type)
    Operating Temperature -22 to 140°F / -30 to 60°C
    Operating Humidity 0 to 95%
    IP Rating IP66
    IK Rating IK08
    Dimensions
