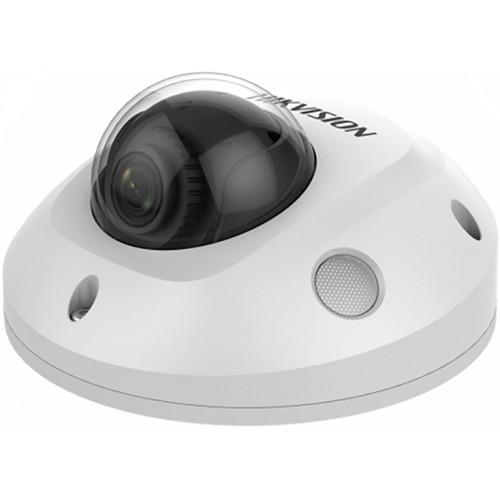

User Manual for Hikvision DS-2CD2543G0-IS 4MP Outdoor Network Mini Dome Camera with Night Vision & 2.8mm Lens Click to enlarge the picture
Contents of the user manual for the Hikvision DS-2CD2543G0-IS 4MP Outdoor Network Mini
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
|
User manual for the Hikvision DS-2CD2543G0-IS 4MP Outdoor Network Mini contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The DS-2CD2543G0-IS from Hikvision uses a 1/3" progressive scan CMOS sensor to capture 2688 x 1520 resolution video at 30 fps. EXIR 2.0 technology provides up to 35' of night vision. The 2.8mm fixed lens delivers a 98° horizontal field of view. Two-way audio communication is possible thanks to a built-in microphone and a 3.5mm audio I/O. An onboard memory card slot accepts microSD/SDHC/SDXC cards up to 128GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This camera is compliant with ONVIF profiles S and G, making it compatible with a wide range of surveillance devices. Its enclosure is rated IP66 for outdoor use and IK08 for impact protection. - IR cut filter enables day and night functionality
- EXIR 2.0 technology for up to 35' of night vision
- H.265+, H.265, H.264+, H.264, and MJPEG video compression
- Scalable video coding (SVC) for H.265 and H.264
- Camera pivots horizontally from -30 to 30° & vertically from 0 to 75°
- 120 dB wide dynamic range
- Image settings include rotate mode, saturation, brightness, contrast, sharpness, automatic gain control, and white balance
- ROI (region of interest) supports one fixed region for main stream and sub stream
- Line crossing and intrusion detection
- General functions include one-key reset, anti-flicker, 5 streams and up to 5 custom streams, heartbeat, password protection, privacy masking, watermark, and IP address filtering
- Effective noise filtering
- 100M self-adaptive Ethernet port
- Alarm triggers include motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, and HDD error
- Network-attached storage (NAS) support
- Simultaneous live view for up to 6 channels
- Up to 32 users at 3 host levels (admin, operator, and user)
- Compatible with Internet Explorer 8 or higher, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0 or higher, iOS, Android, iVMS-4200, and Hik-Connect
- CSA, FCC, CE, and cUL certified
UPC: 842571120547 In the Box Hikvision DS-2CD2543G0-IS 4MP Outdoor Network Mini Dome Camera with Night Vision & 2.8mm Lens Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-2CD2543G0-IS 4MP Outdoor Network Mini Dome Camera with Night Vision & 2.8mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CD2543G0-IS Specs | | | Sensor | 4 MP 1/3" CMOS | | Lens Mount | M12 | | Focal Length | 2.8mm | | Maximum Aperture | f/1.6 | | Lens Field of View | Horizontal: 98°
Vertical: 55°
Diagonal: 114° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.018 Lux
B&W: 0 Lux | | Shutter Speed | 1/100,000 to 1/3 Seconds | | Camera Angle Adjustment | Horizontal: -30 to 30°
Vertical: 0 to 75° | | | | Streaming Resolution | 1920 x 1080 at 30 fps (16 Mb/s ) | | Supported Video Compression | H.264, H.264+, H.265, H.265+, MJPEG | | Multi-View Streaming | Yes, 3 Streams | | Automatic Gain Control | Yes | | | | Streaming | Two-Way | | Audio Formats | G.711, G.722.1, G.726, MP2L2, PCM | | Built-In Mic | Yes | | External Audio Input | 3.5 mm | | External Audio Output | 3.5 mm | | | | Security | HTTPS, IP Address Filtering, Password Protection, Watermark | | Supported Protocols | DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UPnP | | | | Application Programming Interface (API) | ONVIF Profiles S & P, ISAPI | | Analytics | Line Crossing Detection
Intrusion Detection | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | Data Streaming | Yes | | | | Mobile Operating Systems | iOS, Android | | | | Recording Media | microSD (Up to 128 GB) | | Pan/Tilt | None | | Alarm I/O | 1 / 1 | | I/O Connections | 1 x RJ45
1 x Power | | IR Illuminators | 850 nm | | IR Range | 35' / 10.67 m | | Video Management Software | iVMS-4200, Hik-Connect | | Internal Storage | None | | External Storage Options | NAS | | Power Source | DC, PoE 802.3af (15 W) | | Power Consumption | DC: 8.5 W
PoE: 10 W | | Material of Construction | Plastic, Metal (Unspecified Type) | | Operating Temperature | -22 to 140°F / -30 to 60°C | | Operating Humidity | 0 to 95% | | IP Rating | IP66 | | IK Rating | IK08 | | Dimensions |
