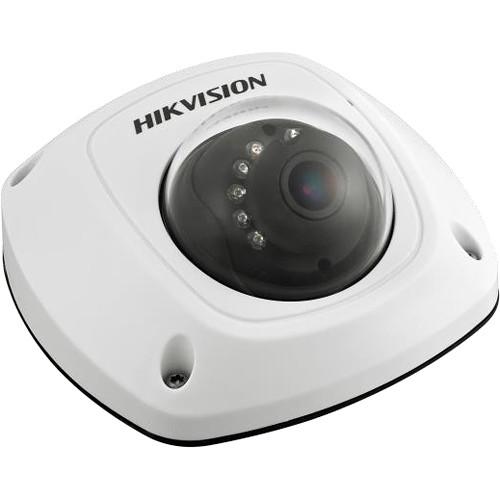

User Manual for Hikvision DS-2CD2552F-IS 5MP Outdoor Network Dome Camera with 6mm Lens and Night Vision Click to enlarge the picture
Contents of the user manual for the Hikvision DS-2CD2552F-IS 5MP Outdoor Network Dome
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
|
User manual for the Hikvision DS-2CD2552F-IS 5MP Outdoor Network Dome contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The DS-2CD2552F-IS 5MP Outdoor Network Dome Camera with 6mm Lens and Night Vision from Hikvision has a 1/3" progressive scan CMOS sensor and a 6mm fixed lens to capture 2560 x 1920 resolution video at up to 20 fps. An IR cut filter and IR LEDs allow the camera to produce clear images at night from distances up to 33'. Digital wide dynamic range and 3D digital noise reduction allow the camera to capture accurate images in varying lighting conditions. H.264+ compression with dual streaming ensures high-quality recording and playback while optimizing network bandwidth use. Housed in an IP67- and IK08-rated enclosure, this camera is suitable for use outdoors and in high-risk areas. - 5MP resolution at up to 20 fps for high-quality playback
- IR LEDs capture images at night at distances up to 33'
- 6mm fixed lens can be adjusted to monitor a specified area
- Two-way audio communication
- RJ45 Ethernet with PoE for quick installation
- microSD card slot supports up to 128GB
- IP67- and IK08-rated enclosure for protection from dust, water, and impact
UPC: 813908029628 In the Box Hikvision DS-2CD2552F-IS 5MP Outdoor Network Dome Camera with 6mm Lens and Night Vision Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-2CD2552F-IS 5MP Outdoor Network Dome Camera with 6mm Lens and Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CD2552F-IS-6MM Specs | | | Image Sensor | 5 MP 1/3" progressive scan CMOS sensor | | Minimum Illumination | 0.01 lux at (f/1.2, AGC on)
0 lux with IR LEDs on | | Shutter Speed | 1/3 to 1/10,000 sec | | Lens | 6mm | | Day/Night | IR cut filter with auto switch | | Digital Noise Reduction | 3D-DNR | | Wide Dynamic Range | DWDR | | Pan | -30 to 30° | | Tilt | 0 to 75° | | Rotation | 0 to 365° | | | | Video Compression | H.264+, H.264, MJPEG | | Video Bit Rate | 256 kbps to 16 Mbps | | Streaming | Dual | | Audio | G.711, G.722.1, G.726, MP2L2 | | | | Maximum Resolution | 2560 x 1920 | | Stream Type | 60 Hz: 20 fps at 2560 x 1920, 30 fps at 2048 x 1536, 1920 x 1080, 1280 x 720
50 Hz: 20 fps at 2560 x 1920, 25 fps at 2048 x 1536, 1920 x 1080, 1280 x 720 | | Settings | Rotate mode, saturation, brightness, contrast adjustable by client software or web browser | | Backlight Compensation | Yes, zone configurable | | Region of Interest | Supported | | | | Network Storage | microSD/SDHC/SDXC card with ANR up to 128 GB (available separately)
NAS (supports NFS, SMB/CIFS) | | Alarm Triggers | Line crossing, intrusion detection, motion detection, dynamic analysis, tampering alarm, network disconnect, IP address conflict, storage exception | | Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1x, QoS, IPv6, Bonjour | | Interoperability | ONVIF, PSIA, CGI, ISAPI | | | | Communication | 1 x RJ45 10M/100M Ethernet | | Memory Card Support | microSD/SDHC/SDXC slot supports up to 128 GB | | Alarm | 1 x alarm input, 1 x alarm output | | Audio | 1 x Phoenix-type connector audio input, mic in/line in
1 x Phoenix-type connector audio output | | | | Operating Conditions | -22 to 140°F (-30 to 60°C) | | Humidity | ≤95%, non-condensing | | Power Supply | 12 VDC ±10%, PoE (802.3af) | | Maximum Power Consumption | 5 W | | IR Range | 33' (10 m) | | IP Rating | IP67 | | IK Rating | IK08 | | Dimensions | 3.9 x 3.8 x 2.1" (99.3 x 97 x 53 mm) | | Weight | 1.3 lb (0.6 kg) | | | | Package Weight | 1.55 lb | | Box Dimensions (LxWxH) | 9.9 x 6.4 x 3.9" |
