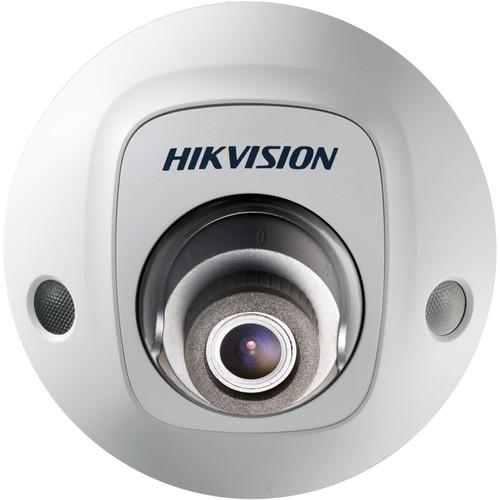

User Manual for Hikvision DS-2CD2555FWD-IS 5MP Outdoor Network Mini Dome Camera with 2.8mm Lens and Night Vision Click to enlarge the picture
Contents of the user manual for the Hikvision DS-2CD2555FWD-IS 5MP Outdoor Network Mini
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
|
User manual for the Hikvision DS-2CD2555FWD-IS 5MP Outdoor Network Mini contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The DS-2CD2555FWD-IS 5MP Outdoor Network Mini Dome Camera from Hikvision features a 1/2.9" progressive scan CMOS sensor and 2.8mm fixed lens to capture 2944 x 1656 resolution video. With integrated IR LEDs and Hikvision's EXIR technology, the camera can capture images of subjects up to 35' awayin complete darkness. The camera includes an RJ45 port providing Ethernet connectivity and a microSD card slot that can support up to 128GB for onboard storage. The IP66-rated enclosure is suitable for outdoor use. - Image settings include rotate mode, saturation, brightness, contrast, and sharpness adjustable by client software or web browser
- 3D-DNR, 120 dB WDR, and BLC image enhancements
UPC: 842571117950 In the Box Hikvision DS-2CD2555FWD-IS 5MP Outdoor Network Mini Dome Camera with 2.8mm Lens and Night Vision Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-2CD2555FWD-IS 5MP Outdoor Network Mini Dome Camera with 2.8mm Lens and Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CD2555FWD-IS Specs | | | Sensor | 5 MP 1/2.9" CMOS | | Lens Mount | M12 | | Focal Length | 2.8mm | | Maximum Aperture | f/2 | | Lens Field of View | Horizontal: 97°
Vertical: 54°
Diagonal: 113° | | Day/Night | Yes | | Minimum Illumination | Color: 0.028 Lux
B&W: 0 Lux | | Shutter Speed | 1/100,000 to 1/3 Seconds | | Camera Angle Adjustment | Horizontal: -30 to 30°
Vertical: 0 to 75° | | | | Streaming Resolution | 2944 x 1656 at 20 fps (16 Mb/s )
2560 x 1440 at 30 fps | | Supported Video Compression | H.264, H.264+, H.265, H.265+, MJPEG | | Multi-View Streaming | Yes, 3 Streams | | | | Streaming | Two-Way | | Audio Formats | G.711, G.722.1, G.726, MP2L2, PCM | | External Audio Input | 3.5 mm | | External Audio Output | 3.5 mm | | | | Security | IP Address Filtering, Password Protection, Watermark | | Supported Protocols | DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UPnP | | | | Application Programming Interface (API) | ONVIF Profile S and G, ISAPI | | Analytics | Line crossing, intrusion, unattended baggage, object removal, and face detection | | Event Trigger | Yes | | Event Action | Alarm | | | | Recording Media | microSD (Up to 128 GB) | | Pan/Tilt | None | | Alarm I/O | 1 / 1 | | I/O Connections | 1 x RJ45 | | IR Illuminators | 850 nm | | IR Range | 35' / 10.67 m | | Video Management Software | iVMS-4200 and Hik-Connect | | Certifications | CSA, FCC (Part 15 Class A), UL, as per Manufacturer | | Internal Storage | None | | External Storage Options | NAS | | Power Source | DC, PoE 802.3af (15 W) | | Power Consumption | DC: 7.5 W
PoE: 9.5 W | | Material of Construction | Plastic, Metal (Unspecified Type) | | Operating Temperature | -22 to 140°F / -30 to 60°C | | Operating Humidity | 0 to 95% | | IP Rating | IP66 | | IK Rating | IK08 | | Dimensions |
