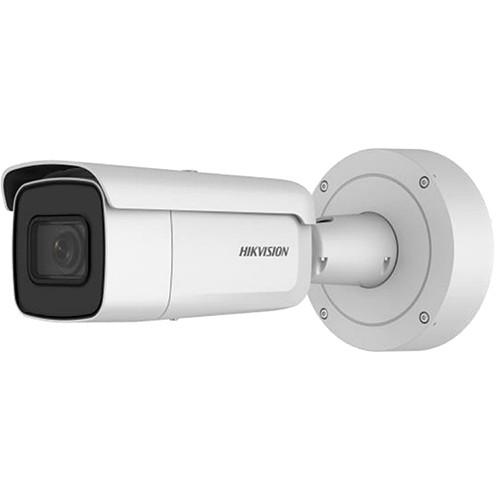

User Manual for Hikvision DS-2CD2645FWD-IZS 4MP Outdoor Network Bullet Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Hikvision DS-2CD2645FWD-IZS 4MP Outdoor Network Bullet
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
|
User manual for the Hikvision DS-2CD2645FWD-IZS 4MP Outdoor Network Bullet contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The DS-2CD2645FWD-IZS from Hikvision uses a 1/2.5" progressive scan CMOS sensor to capture 2560 x 1440 resolution video at 30 fps. IR LEDs provide up to 165' of night vision. The 2.8-12mm motorized varifocal lens delivers a 114-32° horizontal field of view and a 4.3x optical zoom. Two-way audio communication is possible via terminal block. An onboard slot accepts microSD/SDHC/SDXC cards up to 128GB. microSD cards are available separately. Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This bullet camera is ONVIF-compliant for profiles S and G, making it compatible with a wide range of surveillance devices. It has an IP67- and IK10-rated metal enclosure that is suitable for outdoor use in areas at high risk of vandalism. - IR cut filter enables day and night functionality
- H.265+, H.265, H.264+, H.264, and MJPEG video compression
- Scalable video coding (SVC) for H.265 and H.264
- 120 dB wide dynamic range
- Image settings include rotate mode, saturation, brightness, contrast, and sharpness
- ROI (region of interest) supports one fixed region for main stream and sub stream
- Analytics include line crossing, intrusion, object removal, unattended baggage, scene change, and face detection
- General functions include one-key reset, anti-flicker, three streams, heartbeat, password protection, privacy masking, watermark, and IP address filtering
- Terminal blocks for audio and alarm I/O
- 100M self-adaptive Ethernet port
- Network-attached storage (NAS) support
- Simultaneous live view for up to 6 channels
- Up to 32 users at 3 host levels (admin, operator, and user)
- Compatible with Internet Explorer 8 or higher, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0 or higher, iOS, Android, iVMS-4200, iVMS-4500, and Hik-Connect
- SA, FCC, CE, and cUL certified
In the Box Hikvision DS-2CD2645FWD-IZS 4MP Outdoor Network Bullet Camera with Night Vision Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-2CD2645FWD-IZS 4MP Outdoor Network Bullet Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CD2645FWD-IZS Specs | | | Sensor | 4 MP 1/2.5" CMOS | | Lens Mount | M14 | | Focal Length | 2.8 to 12mm | | Maximum Aperture | f/1.2 | | Zoom | Optical: 4.3x | | Lens Field of View | Horizontal: 114 to 32°
Vertical: 59 to 18°
Diagonal: 141 to 36.5° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.0009 Lux
B&W: 0 Lux | | Shutter Speed | 100,000 to 1/3 Seconds | | | | Streaming Resolution | 2560 x 1440 at 30 fps (16 Mb/s ) | | Supported Video Compression | H.264, H.264+, H.265, H.265+, MJPEG | | Multi-View Streaming | Yes, 3 Streams | | Automatic Gain Control | Yes | | | | Streaming | Two-Way | | Audio Formats | G.711, G.722.1, G.726, MP2L2, PCM | | External Audio Input | Terminal Block (Unspecified Pin Count) | | External Audio Output | Terminal Block (Unspecified Pin Count) | | | | Security | HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection, Watermark | | Supported Protocols | Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UPnP | | | | Application Programming Interface (API) | ONVIF Profile S & G, ISAPI | | Analytics | Line Crossing Detection
Intrusion Detection
Object Removal Detection
Unattended Baggage Detection
Scene Change Detection
Face Detection | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | Data Streaming | Yes | | | | Mobile Operating Systems | iOS, Android | | | | Recording Media | microSD (Up to 128 GB) | | Pan/Tilt | None | | Alarm I/O | 1 / 1 | | I/O Connections | 1 x RJ45
1 x Power | | IR Illuminators | 850 nm | | IR Range | 165' / 50.29 m | | Video Management Software | iVMS-4200, iVMS-4500, and Hik-Connect | | Internal Storage | None | | External Storage Options | NAS | | Power Source | DC, PoE 802.3af (15 W) | | Power Consumption | DC: 5.5 W
PoE: 7 W | | Material of Construction | Metal (Unspecified Type) | | Operating Temperature | -22 to 140°F / -30 to 60°C | | Operating Humidity | 0 to 95% | | IP Rating | IP67 | | IK Rating | IK10 | | Dimensions |
