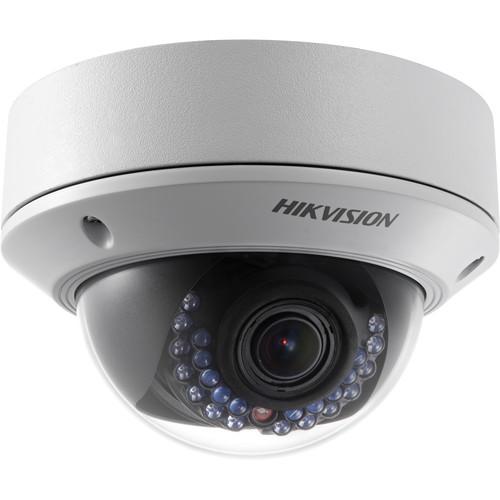

User Manual for Hikvision DS-2CD2712FWD-IS1.3MP Outdoor Network Dome Camera with 2.8-12mm Lens & Night Vision Click to enlarge the picture
Contents of the user manual for the Hikvision DS-2CD2712FWD-IS1.3MP Outdoor Network Dome Camera
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
|
User manual for the Hikvision DS-2CD2712FWD-IS1.3MP Outdoor Network Dome Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The DS-2CD2712FWD-IS1.3MP Outdoor Network Dome Camera from Hikvision is a 1/3" 1.3MP dome camera that can record 1280 x 960 resolution video at 30 fps. This dome camera has a 2.8-12mm varifocal lens, and an IR LED range of up to 66'. It features H.264 and MJPEG video compression, day and night ICR, digital noise reduction (3D-DNR), digital wide dynamic range, and backlight compensation that is zone configurable. Up to 64GB of microSD onboard storage are supported, as well as audio and alarm outputs. The camera can be powered via PoE, simplifying installation and minimizing cable runs and has IP66 and IK10 ratings. UPC: 842571108354 In the Box Hikvision DS-2CD2712FWD-IS1.3MP Outdoor Network Dome Camera with 2.8-12mm Lens & Night Vision Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-2CD2712FWD-IS1.3MP Outdoor Network Dome Camera with 2.8-12mm Lens & Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CD2712FWD-IS Specs | | | Sensor | 1.3 MP 1/3" CMOS | | Focal Length | 12 to 2.8mm | | Maximum Aperture | f/1.4 | | Zoom | Optical: 4.29x | | Lens Field of View | Horizontal: 27.2 to 80° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.014 Lux
B&W: 0 Lux | | Shutter Speed | 1/100000 to 1/30 Seconds | | | | Streaming Resolution | 1280 x 960 at 30 fps
1280 x 720 at 30 fps | | Supported Video Compression | H.264, MJPEG | | Multi-View Streaming | , 2 Streams | | | | Streaming | Single | | Audio Formats | G.711, G.726 | | Built-In Mic | No | | External Audio Input | 3.5 mm | | Built-In Speaker | No | | External Audio Output | 3.5 mm | | | | Security | HTTPS | | Supported Protocols | DDNS, DHCP, DNS, FTP, HTTP, , ICMP, IGMP, NTP, PPPoE, QoS Layer 3 DiffServ, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UPnP | | | | Application Programming Interface (API) | ONVIF, PSIA | | Event Trigger | Yes | | Event Action | Recording, Alarm | | Data Streaming | Yes | | | | Recording Media | microSD (Up to 64 GB) | | Pan/Tilt | Manual Pan: 360°
Manual Tilt: 75° | | Alarm I/O | 1 / 1 | | I/O Connections | 1 x Power
1 x RJ45 | | IR Range | 65.62' / 20 m | | Internal Storage | None | | External Storage Options | NAS | | Power Source | DC, PoE 802.3af (15 W) | | Power Consumption | 5.5 W | | Operating Temperature | -22 to 140°F / -30 to 60°C | | Operating Humidity | 0 to 95% | | IP Rating | IP66 | | IK Rating | IK10 | | Dimensions |
