Hikvision DS-2CD2745FWD-IZS 4MP Outdoor Network Dome

Search your instruction manual in PDF to download

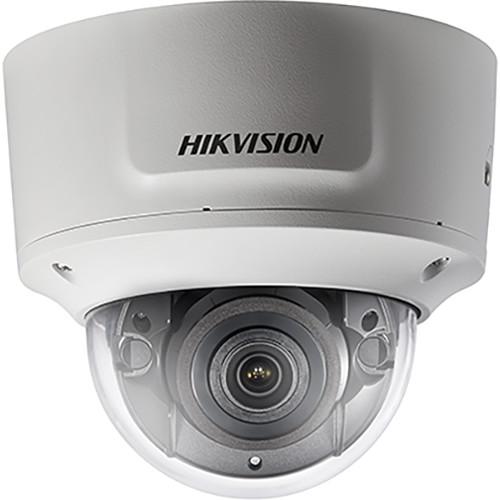

User Manual for Hikvision DS-2CD2745FWD-IZS 4MP Outdoor Network Dome Camera with Night Vision

Click to enlarge the picture
Hikvision DS-2CD2745FWD-IZS 4MP Outdoor Network Dome Camera with Night Vision Contents of the user manual for the Hikvision DS-2CD2745FWD-IZS 4MP Outdoor Network Dome
  • Product category: Wired IP Cameras Hikvision
  • Brand: Hikvision
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Hikvision Wired IP Cameras

User manual for the Hikvision DS-2CD2745FWD-IZS 4MP Outdoor Network Dome contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Hikvision product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!



Product description

The DS-2CD2745FWD-IZS 4MP Outdoor Network Dome Camera from Hikvision uses a 1/2.5" progressive scan CMOS sensor to capture 2688 x 1520 resolution video at 30 fps. IR LEDs provide up to 100' of night vision. The camera's 2.8-12mm motorized varifocal lens delivers a 114-32° horizontal field of view. Two-way audio is possible thanks to an audio input and output. An onboard memory card slot accepts microSD/SDHC/SDXC cards up to 128GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.

This dome camera is compliant with ONVIF profiles S and G, making it compatible with a wide range of surveillance devices. The camera's enclosure is IP67 and IK10 rated for outdoor use in areas at risk of vandalism.
  • Darkfighter and EXIR 2.0 technology for visibility in low-light conditions
  • IR cut filter for day and night functionality
  • H.265+, H.265, H.264+, H.264, and MJPEG video compressions
  • Scalable video coding (SVC) for H.264 and H.265
  • Triple streaming
  • Camera pivots horizontally from 0 to 355° and vertically from 0 to 75°
  • 0 to 355° rotation
  • Slow shutter support
  • 120 dB wide dynamic range
  • 3D-DNR
  • Backlight compensation
  • Image settings include rotate mode, saturation, brightness, contrast, and sharpness
  • Region of interest (ROI) supports one fixed region (main stream and sub stream)
  • Alarm triggers include motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, and HDD error
  • Line crossing, intrusion, object removal, unattended baggage, scene change, and face detection
  • General functions include one-key reset, anti-flicker, three streams, heartbeat, password protection, privacy masking, watermark, and IP address filtering
  • Environment noise filtering
  • Up to 32 users with 3 host levels (admin, operator, and user)
  • Up to six channels in simultaneous live view
  • BNC video output (for adjustment only)
  • Audio input and output
  • Alarm input and output
  • 100M Ethernet port
  • Reset button
  • Compatible with Internet Explorer 8 or higher, Chrome 31.0 to 44, Firefox 30.0 to 51, Safari 8.0 or higher, iOS, Android, iVMS-4200, iVMS-4500, and Hik-Connect
  • Network-attached storage support
  • CSA, FCC, CE, and cUL certified
UPC: 842571118049 In the Box Hikvision DS-2CD2745FWD-IZS 4MP Outdoor Network Dome Camera with Night Vision
  • Limited 3-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Hikvision DS-2CD2745FWD-IZS 4MP Outdoor Network Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Download User Manual

    The user manual for the Hikvision DS-2CD2745FWD-IZS 4MP Outdoor Network Dome Camera with Night Vision can be downloaded in PDF format at the link stated below.
    Download PDF user manual - Hikvision DS-2CD2745FWD-IZS 4MP Outdoor Network Dome Camera with Night VisionDownload PDF User Manual - https://www.search-manual.com/ upload/ hikvision-ds-2cd2745fwd-izs-4mp-outdoor-network-dome-camera-with-night-vision-345794-user-manual.pdf
    (PDF file, 1 MB)


    Technical parameters

    Hikvision DS-2CD2745FWD-IZS Specs

    Sensor 4 MP 1/2.5" CMOS
    Lens Mount M14
    Focal Length 2.8 to 12mm
    Maximum Aperture f/1.4
    Zoom Optical: 4.3x
    Lens Field of View Horizontal: 114 to 32°
    Vertical: 59 to 18°
    Diagonal: 141 to 36.5°
    IR Cut Filter Mechanical
    Day/Night Yes
    Minimum Illumination Color: 0.011 Lux
    B&W: 0 Lux
    Shutter Speed 1/100,000 to 1/3 Seconds
    Camera Angle Adjustment Horizontal: 0 to 355°
    Vertical: 0 to 75°
    Streaming Resolution 2688 x 1520 at 30 fps (16 Mb/s )
    Supported Video Compression H.264, H.264+, H.265, H.265+, MJPEG
    Multi-View Streaming Yes, 3 Streams
    Automatic Gain Control Yes
    Streaming Two-Way
    Audio Formats G.711, G.722.1, G.726, MP2L2, PCM
    External Audio Input 3.5 mm
    External Audio Output 3.5 mm
    Security HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection, Watermark
    Supported Protocols Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UPnP
    Application Programming Interface (API) ONVIF Profiles S & G, ISAPI
    Analytics Line Crossing Detection
    Intrusion Detection
    Object Removal Detection
    Unattended Baggage Detection
    Scene Change Detection
    Face Detection
    Motion Detection
    Event Trigger Yes
    Event Action Recording, Notification, Alarm
    Data Streaming Yes
    Mobile Operating Systems iOS, Android
    Recording Media microSD (Up to 128 GB)
    Pan/Tilt None
    Alarm I/O 1 / 1
    I/O Connections 1 x RJ45
    1 x Power
    1 x BNC
    IR Illuminators 850 nm
    IR Range 100' / 30.48 m
    Video Management Software iVMS-4200, iVMS-4500, Hik-Connect
    Internal Storage None
    External Storage Options NAS
    Power Source DC, PoE 802.3af (15 W)
    Power Consumption DC: 11 W
    PoE: 12.5 W
    Material of Construction Plastic, Metal (Unspecified Type)
    Operating Temperature -22 to 140°F / -30 to 60°C
    Operating Humidity 0 to 95%
    IP Rating IP67
    IK Rating IK10
    Dimensions
