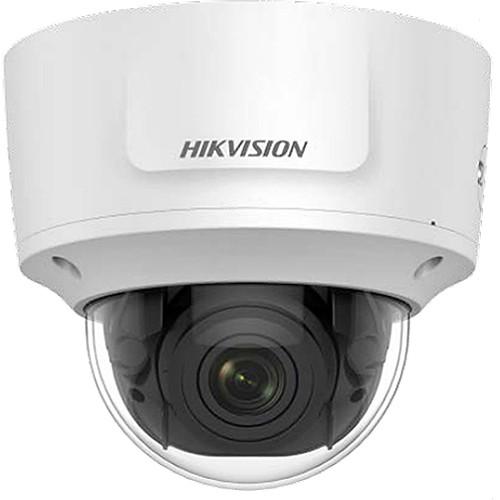

User Manual for Hikvision DS-2CD2755FWD-IZS 5MP Outdoor Network Dome Camera with 2.8-12mm Lens & Night Vision Click to enlarge the picture
Contents of the user manual for the Hikvision DS-2CD2755FWD-IZS 5MP Outdoor Network Dome
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
|
User manual for the Hikvision DS-2CD2755FWD-IZS 5MP Outdoor Network Dome contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The DS-2CD2755FWD-IZS 5MP Outdoor Network Dome Camera from Hikvision has a 5MP 1/2.9" progressive scan CMOS sensor to capture 2944 x 1656 resolution video at 20 fps. The 2.8-12mm varifocal lens features an 88-29° horizontal field of view. EXIR technology delivers up to 100' of night vision. This camera has an audio input and output for two-way audio support. Audio is mono. Integrated PoE technology allows data and power to be transmitted over one cable. An onboard memory slot supports microSD cards up to 128GB. microSD cards are available separately.
This device is ONVIF-compliant for Profiles S and G, making it compatible with a wide range of surveillance products. Additionally, this device's metal housing is IP67- and IK10-rated for outdoor use in areas at risk of vandalism. - Uses PoE and 12 VDC power
- H.265+, H.265, H.264+, H.264, and MJPEG compression
- IR cut filter enables true day and night functionality
- Camera pivots from 0-355° horizontally, and from 0-75° vertically
- Analytics include line crossing detection, intrusion detection, unattended baggage detection, and object removal detection
- Alarm triggers include motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error, alarm input, and alarm output
- General functions include one-key reset, anti-flicker, three streams, heartbeat, password protection, privacy mask, watermark, and IP address filtering
- Image settings include rotate mode, saturation, brightness, contrast, and sharpness
- 120 dB wide dynamic range
- Region of Interest supports one fixed region for main stream and sub stream
- 32 kb/s to 16 Mb/s video bit rate
- Environment noise filtering
- Up to 6 channels of simultaneous live view
- Hik-Connect app for iOS and Android devices
- Compatible with iVMS-4200 and iVMS-5200 video management systems
- Compatible with Internet Explorer 8 and above, Chrome 31.0-44, Firefox 30.0-51, and Safari 8.0 and above
- IP67- and IK10-rated metal enclosure that is suitable for outdoor user in areas at risk of vandalism
- Offers lightning protection, surge protection, and voltage transient protection
UPC: 842571109986 In the Box Hikvision DS-2CD2755FWD-IZS 5MP Outdoor Network Dome Camera with 2.8-12mm Lens & Night Vision Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-2CD2755FWD-IZS 5MP Outdoor Network Dome Camera with 2.8-12mm Lens & Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CD2755FWD-IZS Specs | | | Sensor | 5 MP 1/2.9" CMOS | | Lens Mount | M14 | | Focal Length | 2.8 to 12mm | | Maximum Aperture | f/1.4 | | Zoom | Optical: 4.3x | | Lens Field of View | Horizontal: 88 to 29°
Vertical: 47.5 to 16.5°
Diagonal: 103 to 33° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.014 Lux
B&W: 0 Lux | | Shutter Speed | 1/100000 to 1/3 Seconds | | Camera Angle Adjustment | Horizontal: 0 to 355°
Vertical: 0 to 75° | | | | Streaming Resolution | 2944 x 1656 at 20 fps
2560 x 1440 at 30 fps
1920 x 1080 at 30 fps
1280 x 720 at 30 fps
640 x 360 at 30 fps
352 x 240 at 30 fps | | Supported Video Compression | H.264, H.264+, H.265, H.265+, MJPEG | | Multi-View Streaming | Yes, 3 Streams | | Automatic Gain Control | Yes | | | | Streaming | Two-Way | | Audio Formats | G.711, G.722.1, G.726, MP2, PCM | | Built-In Mic | No | | External Audio Input | 3.5 mm | | Built-In Speaker | No | | External Audio Output | 3.5 mm | | | | Security | HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection, Watermark | | Supported Protocols | Bonjour, DDNS, DHCP, DNS, FTP, HTTP, , ICMP, IGMP, IPv4/v6, NTP, ONVIF Profile G, ONVIF Profile S, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UPnP | | | | Application Programming Interface (API) | ONVIF Profiles S & G, ISAPI | | Analytics | Line crossing detection, intrusion detection, unattended baggage detection, object removal detection | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | | | Mobile Operating Systems | iOS, Android | | | | Recording Media | microSD (Up to 128 GB) | | Pan/Tilt | None | | Alarm I/O | 1 / 1 | | I/O Connections | 1 x RJ45
1 x BNC | | IR Illuminators | 850 nm | | IR Range | 100' / 30.48 m | | Video Management Software | iVMS-4200, iVMS-5200, Hik-Connect | | Internal Storage | None | | External Storage Options | NAS | | Power Source | DC, PoE 802.3af (15 W) Terminal block for DC input | | Power Consumption | 10 W
11.5 W 10 W max for VDC
11.5 W max for PoE | | Operating Temperature | -22 to 140°F / -30 to 60°C | | IP Rating | IP67 | | IK Rating | IK10 | | Dimensions |
