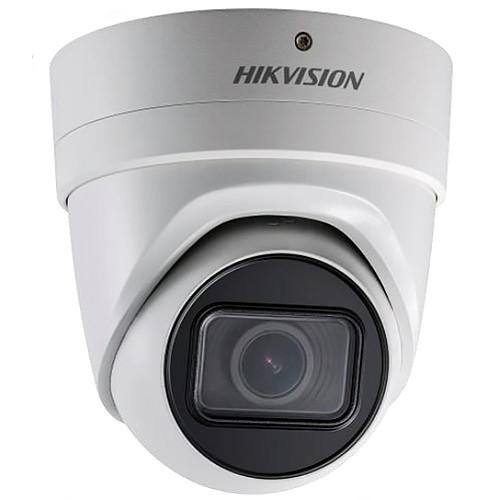

Hikvision DS-2CD2H85FWD-IZS 8MP Outdoor Network Turret

User Manual for Hikvision DS-2CD2H85FWD-IZS 8MP Outdoor Network Turret Camera with 2.8-12mm Lens & Night Vision

• Product category: Wired IP Cameras Hikvision
• Brand: Hikvision
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Hikvision Wired IP Cameras

Product description

• Uses PoE and 12 VDC power

• BNC analog video output

• H.265+, H.265, H.264+, H.264, and MJPEG compression

• IR cut filter enables true day and night functionality

• Camera pivots from 0-355° horizontally, and from 0-75° vertically

• 0-355° rotation range

• 4.3x optical zoom

• Slow shutter support

• Analytics include line crossing detection, intrusion detection, unattended baggage detection, and object removal detection

• Face detection support

• Alarm triggers include motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error, alarm input, and alarm output

• General functions include one-key reset, anti-flicker, three streams, heartbeat, password protection, privacy mask, watermark, and IP address filtering

• Image settings include rotate mode, saturation, brightness, contrast, and sharpness

• 120 dB wide dynamic range

• Backlight compensation

• 3D-DNR

• Region of Interest supports one fixed region for main stream and sub stream

• 32 kb/s to 16 Mb/s video bit rate

• Environment noise filtering

• Reset button

• Up to 32 users

• Up to 6 channels of simultaneous live view

• Hik-Connect app for iOS and Android devices

• Compatible with iVMS-4200 and iVMS-5200 video management systems

• Compatible with Internet Explorer 8 and above, Chrome 31.0-44, Firefox 30.0-51, and Safari 8.0 and above

• IP67- and IK10-rated metal enclosure that is suitable for outdoor user in areas at risk of vandalism

• Integrated conduit base

• Offers lightning protection, surge protection, and voltage transient protection

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

Hikvision DS-2CD2H85FWD-IZS Specs

Recording Media	microSD (Up to 128 GB)
Pan/Tilt	None
Alarm I/O	1 / 1
I/O Connections	1 x RJ45 1 x BNC
IR Illuminators	850 nm
IR Range	100' / 30.48 m
Video Management Software	iVMS-4200, iVMS-5200, Hik-Connect
Internal Storage	None
External Storage Options	NAS
Power Source	DC, PoE 802.3af (15 W) Terminal block for DC input
Power Consumption	11 W 12.5 W 11 W max for VDC 12.5 W max for PoE
Material of Construction	Metal (Unspecified Type)
Operating Temperature	-22 to 140°F / -30 to 60°C
IP Rating	IP67
IK Rating	IK10
