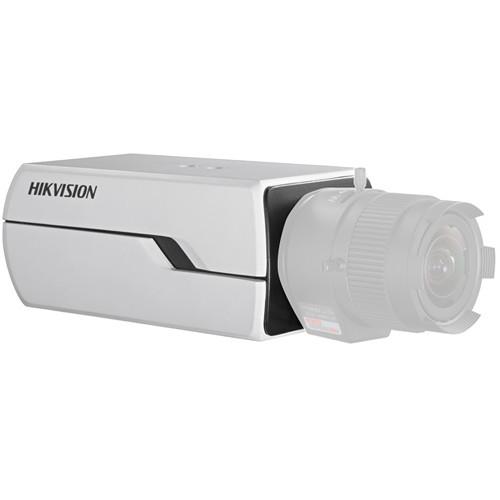

User Manual for Hikvision DS-2CD4032FWD-A 3MP Day & Night WDR Box Camera with Smart Focus & Defog Click to enlarge the picture
Contents of the user manual for the Hikvision DS-2CD4032FWD-A 3MP Day & Night
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
|
User manual for the Hikvision DS-2CD4032FWD-A 3MP Day & Night contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The DS-2CD4032FWD-A 3MP Day & Night WDR Box Camera with Smart Focus from Hikvision features a 1/3" progressive scan CMOS image sensor that allows it to capture images at a maximum resolution of 2048 x 1536. The camera features day/night operation with the help of an IR cut filter. It also supports H.264, MPEG4, and MJPEG video compression for efficient utilization of network bandwidth. The Auto Back Focus feature allows the camera to automatically adjust the sensor to the right focus. - Up to 2048 x 1536 high resolution
- On-board storage, up to 64GB
- Two-way audio, built-in mic
UPC: 816783016912 In the Box Hikvision DS-2CD4032FWD-A 3MP Day & Night WDR Box Camera with Smart Focus & Defog Limited 3-Year Warranty Guides & Manuals fuyrtvwxbdtxxvvvtasx Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-2CD4032FWD-A 3MP Day & Night WDR Box Camera with Smart Focus & Defog in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Hikvision DS-2CD4032FWD-A 3MP Day & Night WDR Box Camera with Smart Focus & Defog can be downloaded in PDF format at the link stated below.
Technical parametersHikvision DS-2CD4032FWD-A Specs | | | Sensor | 1/3" Progressive scan CMOS | | Minimum Illumination | Color: 0.1 lux @ F1.2, AGC on
B&W: 0.01 lux @ F1.2, AGC on | | Shutter Time | 1 to 1/100,000 sec | | Slow Shutter | Yes | | Lens Mount | C/CS mount | | Auto Iris | DC drive | | Day & Night | ICR (Auto/Schedule/Alarm Trigger) | | Digital Noise Reduction | 3D DNR | | Wide Dynamic Range | 120 dB | | Smart Focus System | Auto Back Focus | | | | Video | H.264 / MPEG4 / MJPEG | | H.264 Profile | Baseline profile / Main profile / High profile | | Bit Rate | 32 kb/s to 16 Mb/s | | Audio Compression | G.711 / G.726 / MP2L2 | | Dual Streaming | 64 kb/s (G.711) / 16 kb/s (G.726) | | | | Maximum Resolution | 2048 x 1536 | | Frame Rate | 60 Hz: 20 fps (2048 x 1536), 30 fps (1920 × 1080), 30 fps (1280 x 720) | | Streaming | Independent Setting: Up to 60 Hz: 20 fps (2048 x 1536) | | Image Settings | Rotate mode, saturation, brightness, contrast, grayscale adjustable through client software or web browser | | BLC | Yes, zone configurable | | Overlay | 128 x 128, BMP 24-bit, zone configurable | | Defog | Yes | | Image Stabilization | Electronic | | ROI | Yes, up to 4 configurable areas. | | | | Network Storage | NAS | | Alarm Trigger | Intrusion detection, motion detection, face detection, tampering alarm, defocus, network disconnect, IP address conflict, storage exception | | Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour (SIP optional) | | Security | User authentication, Watermark, IP address filtering, Anonymous access | | System Compatibility | ONVIF, PSIA, CGI | | | | Audio Input | 1 x 3.5 mm audio interface, Mic in/Line in, 1 x built-in microphone | | Audio Output | 1 x 3.5 mm audio interface | | Communication Interface | 1 x RJ45 10M / 100M ethernet port, 1 x RS-485 interface, 1 x RS-232 interface | | Alarm | 1 x Input, 1 x Output | | Video Output | 1 x Vpp composite output (75 Ω / BNC) | | On-board Storage | Built-in microSD/SDHC/SDXC card slot, up to 64 GB Memory card not included. | | Reset | Yes | | | | Operating Temperature | -22 to 140°F (-30 to 60°C)
Humidity: 90% or less (non-condensing) | | Power Supply | 24 VAC 10%, 12 VDC ± 10%, PoE (802.3af) | | Power Consumption | Maximum 6 W (maximum 9 W with ICR on) | | Dimensions | 2.7 x 2.6 x 5.7" (7.0 × 5.8 × 14.5 cm) | | Weight | 29.3 oz (830 g) | | | | Package Weight | 1.9 lb | | Box Dimensions (LxWxH) | 12.5 x 5.7 x 5.6" |
