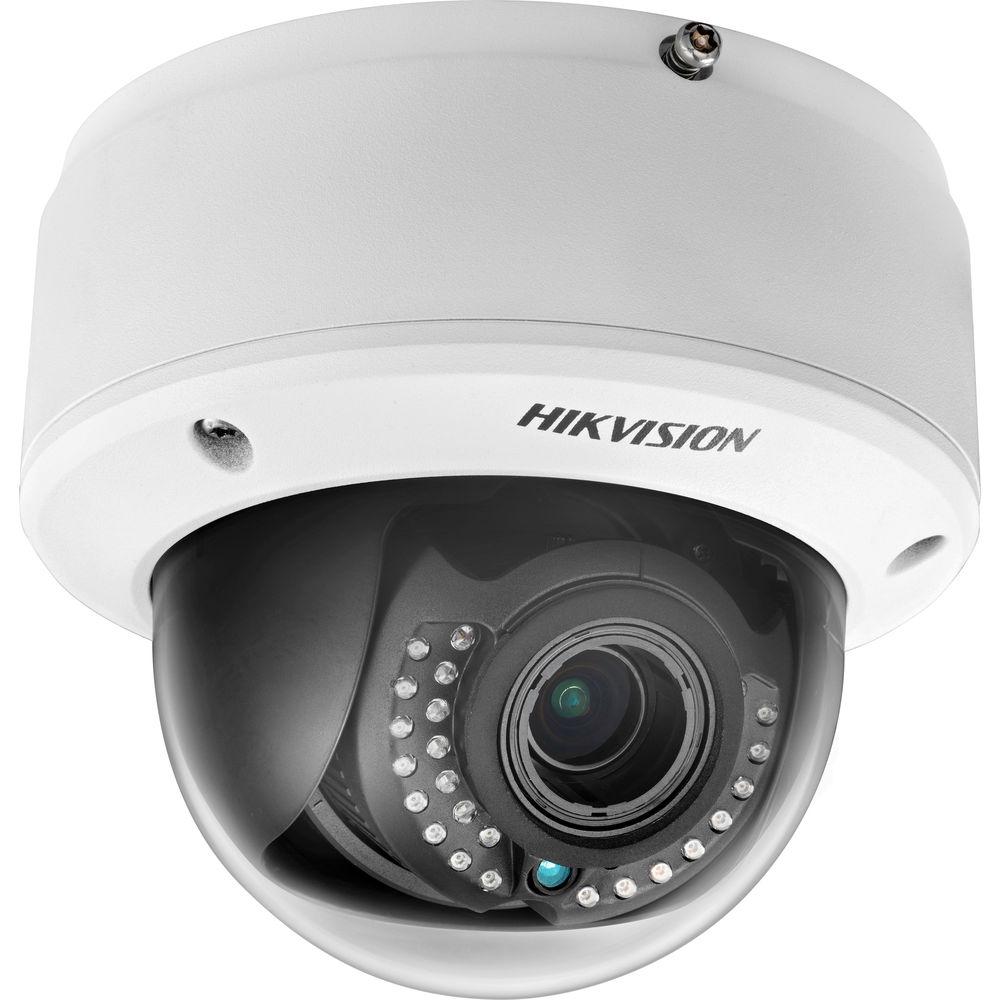

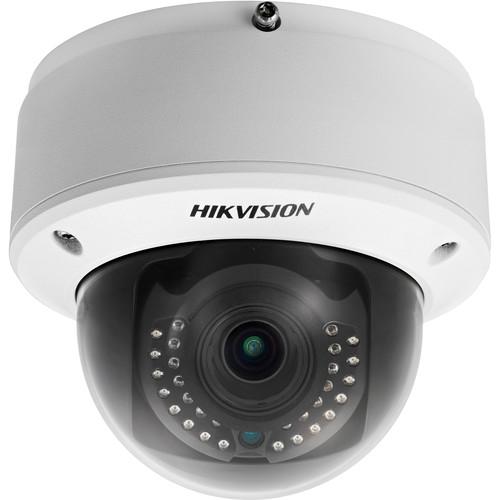

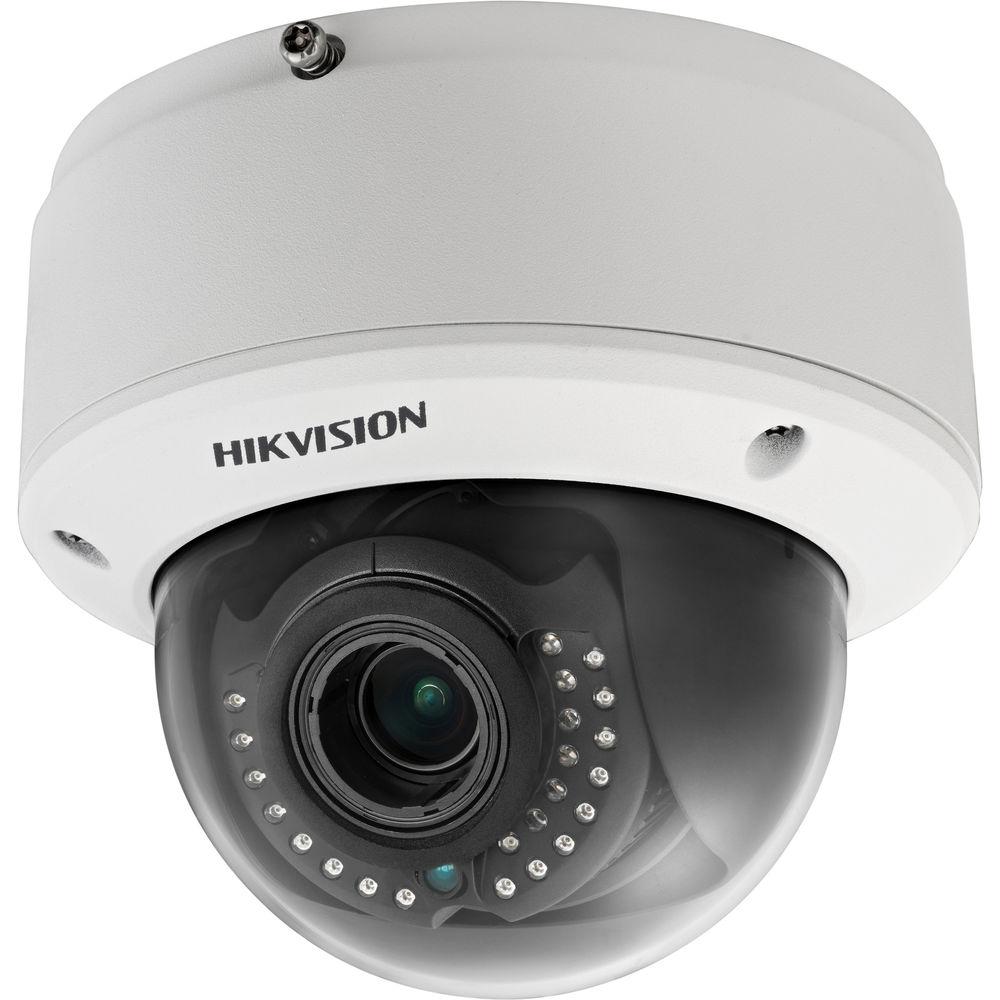

User Manual for Hikvision DS-2CD4124FWD-IZ 2MP HD IR Indoor Dome Network Camera with 2.8 to 12mm Motorized Lens Click to enlarge the picture
Contents of the user manual for the Hikvision DS-2CD4124FWD-IZ 2MP HD IR Indoor
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
 |
User manual for the Hikvision DS-2CD4124FWD-IZ 2MP HD IR Indoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The DS-2CD4124FWD-IZ 2MP HD IR Indoor Dome Network Camera from Hikvision utilizes a 1/2.8" progressive scan CMOS sensor and a 2.8 to 12mm motorized varifocal lens to capture images at a resolution up to 1920 x 1080 at 30 fps. It supports H.264, MPEG4, and MJPEG compression formats with simultaneous triple streaming. The camera also features 3D DNR (Digital Noise Reduction) and WDR (Wide Dynamic Range).This camera supports PTZ operation and is capable of capturing images in illumination as low as 0.014 lux. It also features smart IR functionality that enables viewing images up to 98.4' in complete darkness. The built-in microSD/SDHC/SDXC card slot allows you to store data internally up to 64GB. - Captures images with resolutions up to 1920 x 1080 at 30fps
- Features DWDR and 3D DNR noise reduction
- Supports triple streaming
- On-board storage, up to 64GB 1
Please Note: Memory card not included. close - Smart focus with motorized varifocal lens
- Features smart VQD, smart facial and audio detection, people counting, and intrusion detection
- Supports defog functionality
- Smart IR for detection up to 98.4' in complete darkness
UPC: 816783018497 In the Box Hikvision DS-2CD4124FWD-IZ 2MP HD IR Indoor Dome Network Camera with 2.8 to 12mm Motorized Lens Limited 3-Year Warranty Brochure PDF 252.6kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-2CD4124FWD-IZ 2MP HD IR Indoor Dome Network Camera with 2.8 to 12mm Motorized Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CD4124FWD-IZ Specs | | | Image Sensor | 1/2.8" Progressive scan CMOS | | Minimum Illumination | 0.01 lux @ F1.2, AGC on, 0.014 lux @ F1.4, AGC on
0 lux with IR on | | Shutter Time | 1 to 1/100,000 sec | | Shutter Speed | Slow | | Lens | 2.8 to 12 mm @ F1.4 | | Angle of View | 113 to 33.8° (motorized VF lens) | | Lens Mount | Φ14 | | Angle Adjustment | Pan: 0 to 355°
Tilt: 0 to 75°
Rotation: 0 to 355° | | Auto Iris | DC drive | | Day & Night | IR cut filter (Auto/Schedule/Alarm Trigger) | | Digital Noise Reduction (DNR) | 3D DNR | | Wide Dynamic Range | DWDR | | | | Video Compression | H.264 / MPEG4 / MJPEG | | H.264 Profile | Baseline profile / main profile / high profile | | Video Bit Rate | 32 kb/s to 16 Mb/s | | Audio Compression | G.711 / G.726 / MP2L2 | | Audio Bit Rate | 64 kb/s (G.711) / 16 kb/s (G.726) | | | | Maximum Image Resolution | 1920 x 1080 | | Frame Rate | 60 Hz: 30 fps (1920 x 1080, 1280 x 960, and 1280 x 720 | | Multi-Streaming | Independent setting, up to 60 Hz: 30 fps (1920 x 1080) | | Image Settings | Rotate mode, saturation, brightness, contrast, grayscale adjustable through client software or web browser | | BLC | Zone configurable | | Options | HLC, Defog | | Image Stabilization | Electronic | | Image Overlay | 128 x 128, BMP 24-bit, zone configurable | | ROI | Up to 4 configurable areas | | | | Network Storage | NAS | | Alarm Trigger | Intrusion detection, Defocus detection, Motion detection, Face detection, Dynamic analysis, Tampering alarm, Network disconnect, IP address conflict, and Storage exception | | Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, and Bonjour | | Security | User authentication, watermark, IP address filtering, anonymous access, and reset | | System Compatibility | ONVIF, PSIA, and CGI | | | | Audio Interface | Input: 1-channel 3.5 mm audio interface, Mic in/Line in
Output: 1-channel 3.5 mm audio interface | | Communication | 1 x RJ45 10 M / 100 M Ethernet port, 1 x RS-485 interface, 1 x RS-232 interface | | Alarm | 1 x Input, 1 x Output | | Video Output | 1 Vpp composite output (75 Ω / BNC) | | Onboard Storage | Built-in microSD/SDHC/SDXC slot, up to 64 GB | | | | Operating Conditions | -22 to 140°F (-30 to 60°C) | | Humidity | 95% or less (non-condensing) | | Power Supply | 12 VDC ± 10% , PoE (802.3af) | | Power Consumption | 6 W; maximum 9 W (IR on: 2 W, Motorized VF lens: 1 W) | | IR Range | Up to 98.4' (30.0 m) | | Impact Protection | IEC60068-275Eh, 50J; EN50102, up to IK10 | | Dimensions (Ø x H) | 5.5 × 4.8" (14.0 × 12.2 cm) | | Weight | 3.1 lb (1.4 kg) | | | | Box Dimensions (LxWxH) | 9.9 x 6.9 x 6.9" |
