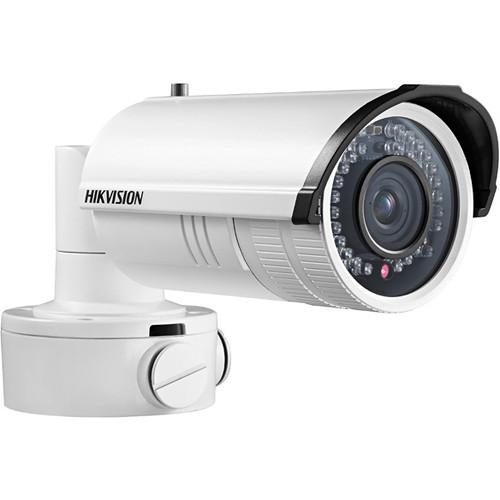

User Manual for Hikvision DS-2CD4224F-IZH 2MP Full HD IR Bullet Network Camera with 2.8-12mm Motorized Varifocal Lens & Heater Click to enlarge the picture
Contents of the user manual for the Hikvision DS-2CD4224F-IZH 2MP Full HD IR
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
|
User manual for the Hikvision DS-2CD4224F-IZH 2MP Full HD IR contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The Hikvision DS-2CD4224F-IZH 2MP Full HD IR Bullet Network Camera utilizes a 1/2.8" progressive scan CMOS sensor and a 2.8 to 12mm motorized varifocal lens to capture Full HD images at 30fps. Thanks to the built-in IR-cut filter and IR LEDs, this camera can capture clear images in almost complete darkness. The IR LEDs provide illumination up to 98' from the camera. The camera supports H.264, MPEG4, and MJPEG compression formats with simultaneous triple streaming. It also features DWDR (Digital Wide Dynamic Range) and 3D DNR (Digital Noise Reduction) that allows the camera to capture high-contrast images in all light conditions. The IP66-rated housing protects the camera from ingress of dust and moisture. - Captures Full HD 1080p video
- Motorized 2.8 to 12mm varifocal lens with Smart Focus
- DWDR (Digital Wide Dynamic Range) and 3D DNR (Digital Noise Reduction) for high-contrast images in all light conditions
- Allows simultaneous triple streaming
- Built-in microSD/SDHC/SDXC card slot (up to 64GB supported) for on-board storage
- Intrusion Detection feature for added security
- EIS (Electronic Image Stabilization) helps control image stability
- Smart Codec, Smart Face Detection, and Smart VQD (Video Quality Detection)
- Built-in heater and defog function
UPC: 816783017896 In the Box Hikvision DS-2CD4224F-IZH 2MP Full HD IR Bullet Network Camera with 2.8-12mm Motorized Varifocal Lens & Heater Limited 3-Year Warranty Brochure PDF 1.1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-2CD4224F-IZH 2MP Full HD IR Bullet Network Camera with 2.8-12mm Motorized Varifocal Lens & Heater in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CD4224F-IZH Specs | | | Image Sensor | 1/2.8" Progressive scan CMOS | | Minimum Illumination | 0.027 lux @ F1.4, AGC on
0 lux with IR on | | IR Range | Up to 98' (30 m) | | Lens | 2.8 to 12 mm @ F1.4 | | Angle of View | 113° to 33.8° | | Lens Mount | Φ14 | | Auto Iris | DC drive | | Day & Night | IR cut filter (Auto/Schedule/Alarm Trigger) | | Shutter Time | 1 to 1/100,000 sec | | Slow Shutter | Yes | | Digital Noise Reduction (DNR) | 3D DNR | | Wide Dynamic Range | Digital | | | | Video Compression | H.264 / MPEG4 / MJPEG | | H.264 Profile | Baseline profile / main profile / high profile | | Video Bit Rate | 32 kb/s to 16 Mb/s | | | | Maximum Image Resolution | 1920 x 1080 | | Frame Rate | 60 Hz: 20 fps (1920 x 1080), 30 fps (1920 x 1080), 30 fps (1280 x 720) | | Multi-Streaming | Independent setting, up to 60 Hz: 30 fps (1920 x 1080) | | Image Settings | Rotate mode, saturation, brightness, contrast, grayscale adjustable through client software or web browser | | BLC | Yes, zone configurable | | Defog | Yes | | Image Stabilization | Electronic | | Image Overlay | 128 x 128, BMP 24-bit, zone configurable | | ROI | Yes, up to 4 configurable areas | | | | Network Storage | NAS | | Alarm Trigger | Intrusion detection, Defocus detection, Motion detection, Face detection, Dynamic analysis, Tampering alarm, Network disconnect, IP address conflict, and Storage exception | | Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, and Bonjour | | Security | User authentication, watermark, IP address filtering, anonymous access, and reset | | System Compatibility | ONVIF, PSIA, and CGI | | | | Communication | 1 x RJ45 10 M / 100 M Ethernet port | | Onboard Storage | Built-in microSD/SDHC/SDXC slot, up to 64 GB | | Reset Button | Yes | | | | Operating Conditions | -22 to 140°F (-30 to 60°C)
-40 to 140°F (-40 to 60°C) with smart heater on | | Humidity | 95% or less (non-condensing) | | Power Supply | 12 VDC ± 10% , PoE (802.3af) | | Power Consumption | Maximum 12 W | | Ingress protection | IP66 weatherproof rating | | Dimensions | 3.85 x 4.13 x 12.9" (9.80 x 10.5 x 32.9 cm) | | Weight | 3.75 lb (1.70 kg) | | | | Package Weight | 4.6 lb | | Box Dimensions (LxWxH) | 15.3 x 6.3 x 6.2" |
