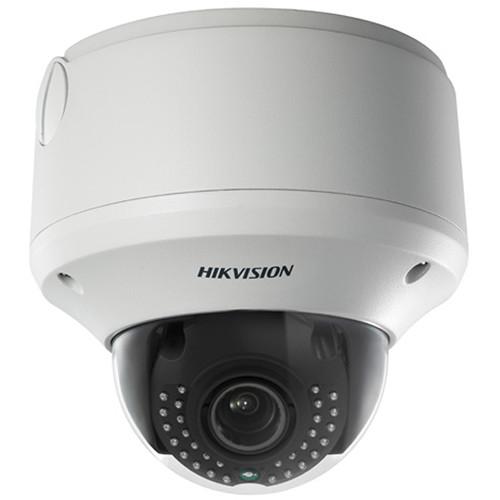

User Manual for Hikvision DS-2CD4312FWD-IZHS8 1.3MP WDR IR Outdoor Network Dome Camera with 8-32mm Motorized Varifocal Lens, Heater, & Audio I O Click to enlarge the picture
Contents of the user manual for the Hikvision DS-2CD4312FWD-IZHS8 1.3MP WDR IR Outdoor
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
|
User manual for the Hikvision DS-2CD4312FWD-IZHS8 1.3MP WDR IR Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The Hikvision DS-2CD4312FWD-IZHS8 1.3MP WDR IR Outdoor Network Dome Camera utilizes a 1/3" progressive scan CMOS sensor and a 8 to 32mm motorized varifocal lens to capture images at a resolution up to 1280 x 960 at 30 fps (60 Hz). With a built-in IR-cut filter and integrated IR LEDs, this camera can capture clear images in complete darkness. The IR LEDs provide illumination up to 98'. The camera supports H.264, MPEG4, and MJPEG compression formats with simultaneous triple streaming. The camera offers WDR of up to 120 dB for capturing images under varied lighting conditions, including extreme backlight and low light. It also comes with a built-in microSD/SDHC/SDXC card slot (up to 64GB) for on-board storage. With the IP66-rated weather-resistant and IK10-rated vandal-proof housing, this camera is suitable for outdoor applications. - Up to 1280 x 960 image resolution and HD720p video
- Motorized 8 to 32mm varifocal lens with Smart Focus
- WDR (Digital Wide Dynamic Range) of up to 120 dB
- 3D DNR (Digital Noise Reduction)
- Allows simultaneous triple streaming
- Built-in microSD/SDHC/SDXC card slot (up to 64GB supported) for on-board storage
- EIS (Electronic Image Stabilization)
- Smart Codec, Smart Face Detection, and Smart VQD (Video Quality Detection)
- Built-in heater and defog function
- 1-channel audio I/O, alarm I/O, and RS-485 interface
UPC: 816783018527 In the Box Hikvision DS-2CD4312FWD-IZHS8 1.3MP WDR IR Outdoor Network Dome Camera with 8-32mm Motorized Varifocal Lens, Heater, & Audio I/O Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-2CD4312FWD-IZHS8 1.3MP WDR IR Outdoor Network Dome Camera with 8-32mm Motorized Varifocal Lens, Heater, & Audio I O in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CD4312FWD-IZHS8 Specs | | | Image Sensor | 1/3" Progressive scan CMOS | | Minimum Illumination | 0.014 lux @ f/1.4
0 lux with IR on | | IR Range | Up to 98' (30 m) | | Lens | 8 to 32 mm @ f/1.4 | | Lens Mount | Φ14 | | Auto Iris | DC drive | | Day & Night | IR cut filter (Auto/Schedule/Alarm Trigger) | | Angle Adjustment | Pan: 0 to 355°
Tilt: 0 to 75°
Rotation: 0 to 355° | | Shutter Time | 1 to 1/100,000 sec | | Slow Shutter | Yes | | Digital Noise Reduction (DNR) | 3D | | Wide Dynamic Range | 120 dB | | | | Video Compression | H.264 / MPEG4 / MJPEG | | H.264 Profile | Baseline profile / main profile / high profile | | Video Bit Rate | 32 kb/s to 16 Mb/s | | Audio Compression | G.711 / G.726 / MP2L2 | | Audio Bit Rate | 64 kb/s (G.711) / 16 kb/s (G.726) | | | | Maximum Image Resolution | 1280 x 960 | | Frame Rate | 60 Hz: 30 fps (1280 x 960), 30 fps (1280 x 720) | | Multi-Streaming | Independent Setting, Up to:
60 Hz: 30 fps (1280 x 960) | | Image Settings | Rotate mode, saturation, brightness, contrast, grayscale adjustable through client software or web browser | | Light Compensation | BLC (zone configurable) | | Defog | Yes | | Image Stabilization | Electronic | | Image Overlay | 128 x 128, BMP 24-bit, zone configurable | | ROI | Yes, up to 4 configurable areas | | | | Network Storage | NAS | | Alarm Trigger | Intrusion detection, Defocus detection, Motion detection, Face detection, Dynamic analysis, Tampering alarm, Network disconnect, IP address conflict, and Storage exception | | Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, and Bonjour | | Security | User authentication, watermark, IP address filtering, anonymous access, and reset | | System Compatibility | ONVIF, PSIA, and CGI | | | | Communication | 1 x RJ45 10 M / 100 M Ethernet port | | Video Output | 1 Vpp composite output (75 Ω / RCA, for lens adjustment when installation) | | Onboard Storage | Built-in microSD/SDHC/SDXC slot, up to 64 GB | | Audio | 1-channel I/O | | Alarm | 1-channel I/O | | Control | RS-485 | | | | Operating Conditions | -22 to 140°F (-30 to 60°C)
-40 to 140°F (-40 to 60°C) with smart heater on | | Humidity | 95% or less (non-condensing) | | Power Supply | 24 VDC ± 10% , PoE (802.3af) | | Power Consumption | Maximum 13 W | | Ingress protection | IP66 weatherproof rating | | Impact Protection | IEC60068-275Eh, 50J; EN50102, exceeding IK10 | | Dimensions | Φ 6.29 x 5.75" (Φ 15.98 × 14.60 cm) | | Weight | 4.62 lb (2.10 kg) |
