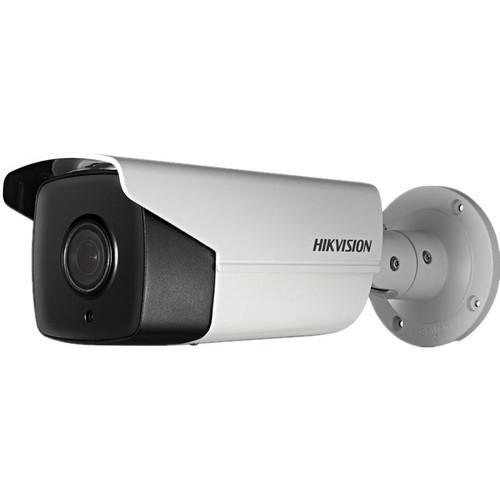

User Manual for Hikvision DS-2CD4A65F-IZH 6MP Outdoor Network Bullet Camera with Night Vision & Heater Click to enlarge the picture
Contents of the user manual for the Hikvision DS-2CD4A65F-IZH 6MP Outdoor Network Bullet
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
|
User manual for the Hikvision DS-2CD4A65F-IZH 6MP Outdoor Network Bullet contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The DS-2CD4A65F-IZH from Hikvision uses a 1/1.8" progressive scan CMOS sensor to capture 3072 x 2048 resolution video at up to 30 fps. The camera's 2.8-12mm motorized varifocal lens delivers a 94.5-30.5° field of view, along with a 4.3x optical zoom. An onboard memory card slot accepts microSD/SDHC/SDXC cards up to 128GB (available separately). Integrated PoE technology simplifies connectivity by transferring data and power through a single cable.
This bullet camera is compliant for ONVIF profiles S and G, making it compatible with a wide range of surveillance devices. It is equipped with a built-in heater and is housed in an IP67-rated enclosure that is suitable for outdoor use. - IR cut filter for day and night functionality
- H.264 and MJPEG video compression
- Image settings include saturation, brightness, and contrast
- Analytics include line crossing, motion, intrusion, region entrance, region exiting, unattended baggage, object removal, exception detection (scene change, defocus), and object counting
- Alarm triggers include intrusion detection, defocus detection, motion detection, dynamic analysis, tampering alarm, network disconnect, IP address conflict, and storage exception
- Network-attached storage support
UPC: 813908020052 In the Box Hikvision DS-2CD4A65F-IZH 6MP Outdoor Network Bullet Camera with Night Vision & Heater Limited 3-Year Warranty Brochure PDF 1.6mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-2CD4A65F-IZH 6MP Outdoor Network Bullet Camera with Night Vision & Heater in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CD4A65F-IZH Specs | | | Sensor | 6 MP 1/1.8" CMOS | | Focal Length | 2.8 to 12mm | | Maximum Aperture | f/1.4 | | Zoom | Optical: 4.3x | | Lens Field of View | Horizontal: 94.5 to 30.5° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.014 Lux
B&W: 0 Lux | | Shutter Speed | 1/100,000 to 1 Seconds | | | | Streaming Resolution | 3072 x 2048 at 30 fps (16 Mb/s ) | | Supported Video Compression | H.264, MJPEG | | Multi-View Streaming | Yes, 3 Streams | | Automatic Gain Control | Yes | | | | Security | Anonymous Authentication, Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection, Watermark | | Supported Protocols | Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UPnP | | | | Application Programming Interface (API) | ONVIF Profiles S & G, PSIA, CGI, ISAPI | | Analytics | Line Crossing Detection
Motion Detection
Intrusion Detection
Region Entrance Detection
Region Exiting Detection
Unattended Baggage Detection
Object Removal Detection
Exception Detection (Scene Change, Defocus)
Object Counting | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | Data Streaming | Yes | | | | Recording Media | microSD (Up to 128 GB) | | Pan/Tilt | None | | I/O Connections | 1 x RJ45
1 x Power
1 x BNC | | IR Range | 164.04' / 50 m | | Internal Storage | None | | External Storage Options | NAS | | Power Source | DC, PoE 802.3at (30 W) | | Power Consumption | 12 W (With Heater) | | Operating Temperature | -40 to 140°F / -40 to 60°C | | Operating Humidity | 0 to 95% | | IP Rating | IP67 | | Dimensions | H: 3.9 x W: 4.1 x L: 12.3" / H: 100.0 x W: 103.9 x L: 311.8 mm | | Weight | 4.4 lb / 2 kg | | | | Package Weight | 4.65 lb | | Box Dimensions (LxWxH) | 15.4 x 6.3 x 6.1" |
