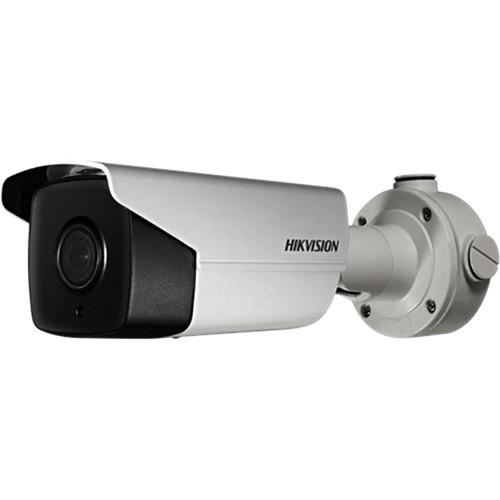

User Manual for Hikvision DS-2CD4AC5F-IZH 12MP Outdoor Network Bullet Camera with Night Vision, 2.8-12mm Lens & Built-In Heater Click to enlarge the picture
Contents of the user manual for the Hikvision DS-2CD4AC5F-IZH 12MP Outdoor Network Bullet
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
|
User manual for the Hikvision DS-2CD4AC5F-IZH 12MP Outdoor Network Bullet contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The DS-2CD4AC5F-IZH 12MP Outdoor Network Bullet Camera from Hikvision is equipped with a 1/1.7" progressive scan CMOS sensor that helps capture images in 4000 x 3000 resolution. The camera offers IR visibility up to 164', even in complete darkness (0 lux). The IP67 weatherproof housing permits installation IP67 weatherproof outdoors. 3D-DNR technology eliminates image noise such as blur and jittery, giving you clear images. Furthermore, the camera offers DWDR (Digital Wide Dynamic Range), PoE (Power over Ethernet), Defog, and complete Smart feature set to meet a wide variety of applications. The camera has built-in heater. UPC: 813908029420 In the Box Hikvision DS-2CD4AC5F-IZH 12MP Outdoor Network Bullet Camera with Night Vision, 2.8-12mm Lens & Built-In Heater Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-2CD4AC5F-IZH 12MP Outdoor Network Bullet Camera with Night Vision, 2.8-12mm Lens & Built-In Heater in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CD4AC5F-IZH Specs | | | Image Sensor | 1/1.7" Progressive Scan CMOS | | Minimum Illumination | Color: 0.01 lux at (f/1.2, AGC ON)
B&W: 0 lux with IR | | Shutter Speed | 1 to 1/100,000 seconds | | Slow Shutter | Support | | Lens | 2.8-12mm at f/1.4
93.6 to 31.8° | | Auto-Iris Lens Support | DC drive | | Day & Night | IR cut filter with auto switch | | | | Video Compression | H.264+/H.264/MJPEG | | H.264 Profile | Baseline Profile / Main Profile / High Profile | | Video Bit Rate | 32 kb/s to 16 Mb/s | | Audio Compression | G.711/G.722.1/G.726/MP2L2 | | Audio Bit Rate | 64 kb/s (G.711) / 16 kb/s (G.722.1) / 16 kb/s (G.726) / 32 to 128 kb/s (MP2L2) | | | | Maximum Resolution | 4000 x 3000 | | Frame Rate | 50 Hz: 15 (4000 x 3000), 22 (4096 x 2160), 25 fps (3840 x 2160, 3072 x 1728, 2560 x 1440, 1920 x 1080, 1280 x 720)
60 Hz: 15 (4000 x 3000), 22 (4096 x 2160), 24 (3840 x 2160), 30 fps (3072 x 1728, 2560 x 1440, 1920 x 1080, 1280 x 720) | | Streaming | Third: Independent with Main Stream and Sub Stream, up to 50/60 Hz: 10 fps (1280 x 720) | | Image Enhancement | BLC/HLC/3D-DNR/ROI/Defog | | Image Settings | Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser | | Cropping | Regional: Support | | Distortion | Correction support | | Day/Night Switching | Auto/Schedule/Triggered by alarm input | | Picture Overlay | LOGO picture can be overlaid on video with 128 x 128 24-bit bmp format | | | | Network Storage | NAS (Support NFS, SMB/CIFS), ANR | | Alarm Trigger | Motion detection, tampering alarm, network disconnect, IP address conflict, storage exception | | Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour | | Security | User authentication, watermark, IP address filtering, anonymous access | | Standard | ONVIF (Profile S,Profile G), PSIA, CGI, ISAPI | | | | Communication Interface | 1 x RJ45 10M/100M/1000M Ethernet port | | Onboard Storage | Built-in microSD/SDHC/SDXC slot, up to 128 GB | | Reset Button | Yes | | | | Ingress Protection | IP67 | | Operating Conditions | -40 to 140°F / -40 to 60°C | | Humidity | 95% or less (non-condensing) | | Power Supply | 12 VDC ±10%, PoE (802.3at) | | IR Range | Up to 164' / 50 m | | Power Consumption | Maximum 12 W | | Dimensions | 3.9 x 4.1 x 12.3" / 9.9 x 10 x 31 cm | | Weight | 4.41 lb / 2 kg | | | | Package Weight | 4.8 lb | | Box Dimensions (LxWxH) | 15.2 x 6.4 x 6.2" |
