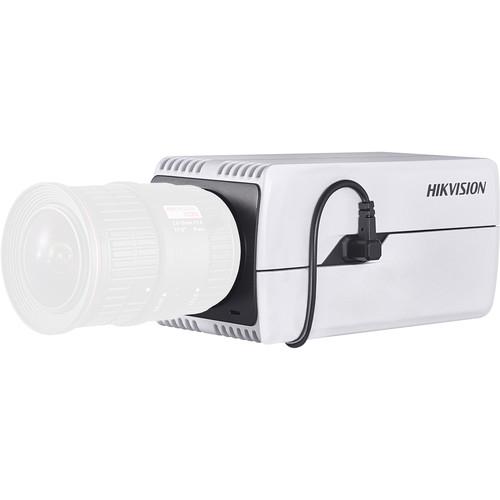

User Manual for Hikvision DS-2CD5085G0 8MP Network Box Camera Click to enlarge the picture
Contents of the user manual for the Hikvision DS-2CD5085G0 8MP Network Box Camera
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
|
User manual for the Hikvision DS-2CD5085G0 8MP Network Box Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description See through the night and watch over your property with the DS-2CD5085G0 8MP Network Box Camera from Hikvision. Featuring a standard CS lens mount, this camera is designed to be customized with the lens of your choice (eight lens options available separately). The camera is equipped with an 8MP CMOS sensor to capture video at resolutions up to 3840 x 2160 at 30 fps. It delivers color images down to 0.009 lux, below which an integrated IR cut filter switches to B&W for ultra-low-light vision. Image enhancement features including a 120 dB wide dynamic range, white balance, and backlight/highlight compensation enable you to capture clear images in varying lighting conditions.
Designed for easy setup, this camera uses PoE technology so you can run just one cable for both data and power. It also has a microSD card slot for edge storage. ONVIF compliance ensures compatibility with a wide range of surveillance equipment. - Color images down to 0.009 lux at f/1.2 with AGC on
- IR cut filter for day and night vision
- CS lens mount (lens available separately)
- H.265+, H.265, H.264+, and H.264 video compression for efficient storage and bandwidth use
- Multiple streaming; five defined streams and five custom streams
- 120 dB wide dynamic range
- Backlight/highlight compensation
- 3D digital noise reduction
- Electronic image stabilization
- Video analytics including face detection, line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, scene change detection, and defocus detection
- Smart statistics including people counting
- microSD card slot for edge storage supports up to 256GB (microSD card available separately)
- PoE technology for easy, clutter-free installation
- cSA, FCC, CE, and UL certified
- ONVIF Profiles S and G compliant
UPC: 842571117769 In the Box Hikvision DS-2CD5085G0 8MP Network Box Camera (No Lens) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-2CD5085G0 8MP Network Box Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CD5085G0 Specs | | | Sensor | 8 MP 1/1.8" CMOS | | Lens Mount | CS | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.009 Lux | | Shutter Speed | 1/100,000 to 1 Seconds | | | | Streaming Resolution | 3840 x 2160 at 30 fps (16 Mb/s ) | | Supported Video Compression | H.264, H.264+, H.265, H.265+, MJPEG | | Multi-View Streaming | Yes, 10 Streams | | Automatic Gain Control | Yes | | | | Security | HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection, Watermark | | Supported Protocols | Bonjour, CIFS/SMB, DDNS, DHCP, FTP, HTTP, ICMP, IGMP, IPv4/v6, NFS, NTP, ONVIF Profile G, ONVIF Profile S, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UPnP | | | | Application Programming Interface (API) | ISAPI, SDK | | Analytics | Line Crossing Detection, Intrusion Detection, Region Entrance Detection, Region Exiting Detection, Unattended Baggage Detection, Object Removal Detection, Scene Change Detection, Defocus Detection, Counting, Face Detection | | Event Trigger | Yes | | Event Action | Recording, Alarm | | | | Recording Media | microSD (Up to 256 GB) | | Pan/Tilt | None | | Alarm I/O | 2 / 2 | | I/O Connections | 1 x RJ45
1 x BNC
1 x Power | | Video Management Software | iVMS-4200, Hik-Connect, HikCentral | | Certifications | CSA, UL, as per Manufacturer | | Internal Storage | None | | External Storage Options | Local PC, NAS | | Power Source | AC, DC, PoE 802.3af (15 W) | | Power Consumption | DC: 7 W
AC: 7 W | | Material of Construction | Aluminum | | Operating Temperature | -22 to 140°F / -30 to 60°C | | Operating Humidity | 0 to 95% | | Dimensions | H: 5.6 x W: 2.8 x L: 2.7" / H: 14.2 x W: 7.1 x L: 6.9 cm | | Weight | 1.5 lb / 690 g | | | | Package Weight | 2.285 lb | | Box Dimensions (LxWxH) | 12.6 x 5.7 x 5.6" |
