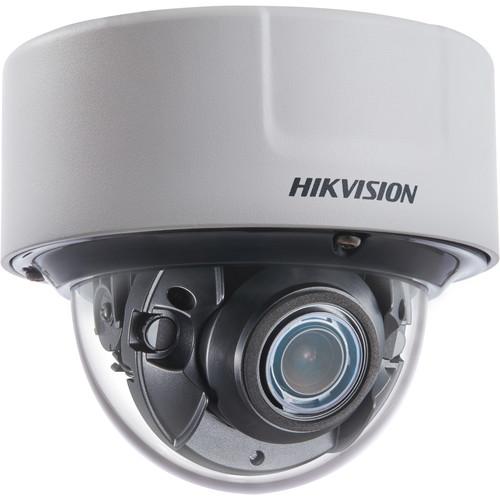

User Manual for Hikvision DS-2CD5165G0-IZS 6MP Network Dome Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Hikvision DS-2CD5165G0-IZS 6MP Network Dome Camera
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
|
User manual for the Hikvision DS-2CD5165G0-IZS 6MP Network Dome Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description Watch over your property with the DS-2CD5165G0-IZS 6MP Network Dome Camera with Night Vision from Hikvision. Equipped with a 6MP CMOS sensor and a 2.8-12mm motorized varifocal lens, the camera captures video at resolutions up to 3200 x 1800 at 30 fps in a 112.4 to 41° field of view. The camera has an IR cut filter and EXIR 2.0 IR LEDs for night vision with an effective range of up to 100'. Image enhancement features including a 120 dB wide dynamic range, white balance, and backlight/highlight compensation enable you to capture clear images in varying lighting conditions.
Designed for easy setup, this camera uses PoE technology so you can run just one cable for both data and power. Moreover, it has a microSD card slot for edge storage, and audio input and output ports for two-way talk. The camera is housed in an IK10-rated vandal-resistant enclosure. ONVIF compliance ensures compatibility with a wide range of surveillance equipment. - Color images down to 0.009 lux at f/1.2 with AGC on
- EXIR 2.0 IR technology for night vision up to 100'
- IR cut filter for day and night vision
- 2.8-12mm motorized varifocal lens with autofocus
- H.265+, H.265, H.264+, and H.264 video compression for efficient storage and bandwidth use
- Multiple streaming; five defined streams and five custom streams
- Camera pivots from 0 to 355° horizontally and from 0 to 75° vertically
- 120 dB wide dynamic range
- Audio input and output for two-way talk
- Backlight/highlight compensation
- 3D digital noise reduction
- Electronic image stabilization
- Video analytics including face detection, line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, scene change detection, and defocus detection
- Smart statistics including people counting
- microSD card slot for edge storage supports up to 256GB (microSD card available separately)
- PoE technology for easy, clutter-free installation
- Anti-reflective dome coating
- IK10-rated vandal resistance
- cSA, FCC, CE, and UL certified
- ONVIF Profiles S and G compliant
UPC: 842571117820 In the Box Hikvision DS-2CD5165G0-IZS 6MP Network Dome Camera with Night Vision Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-2CD5165G0-IZS 6MP Network Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CD5165G0-IZS Specs | | | Sensor | 6 MP 1/1.8" CMOS | | Focal Length | 2.8 to 12mm | | Maximum Aperture | f/1.2 | | Zoom | Optical: 4.3x | | Lens Field of View | Horizontal: 112.4 to 41°
Vertical: 58 to 23°
Diagonal: 137 to 47° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.009 Lux
B&W: 0 Lux | | Shutter Speed | 1/100,000 to 1 Seconds | | Camera Angle Adjustment | Horizontal: 0 to 355°
Vertical: 0 to 75° | | | | Streaming Resolution | 3200 x 1800 at 30 fps (16 Mb/s ) | | Supported Video Compression | H.264, H.264+, H.265, H.265+, MJPEG | | Multi-View Streaming | Yes, 10 Streams | | Automatic Gain Control | Yes | | | | Streaming | Two-Way | | Audio Formats | G.711, G.722.1, G.726, MP2L2, PCM | | Built-In Mic | No | | External Audio Input | 3.5 mm | | Built-In Speaker | No | | External Audio Output | 3.5 mm | | | | Security | HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection, Watermark | | Supported Protocols | Bonjour, CIFS/SMB, DDNS, DHCP, FTP, HTTP, ICMP, IGMP, IPv4/v6, NFS, NTP, ONVIF Profile G, ONVIF Profile S, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UPnP | | | | Application Programming Interface (API) | ISAPI, SDK | | Analytics | Line Crossing Detection, Intrusion Detection, Region Entrance Detection, Region Exiting Detection, Unattended Baggage Detection, Object Removal Detection, Scene Change Detection, Defocus Detection, Counting, Face Detection | | Event Trigger | Yes | | Event Action | Recording, Alarm | | | | Recording Media | microSD (Up to 256 GB) | | Pan/Tilt | None | | Alarm I/O | 1 / 1 | | I/O Connections | 1 x RJ45
1 x Power | | IR Illuminators | 850 nm | | IR Range | 100' / 30.48 m | | Video Management Software | iVMS-4200, Hik-Connect, HikCentral | | Certifications | CSA, UL, as per Manufacturer | | Internal Storage | None | | External Storage Options | Local PC, NAS | | Power Source | DC, PoE 802.3at (30 W) | | Power Consumption | DC: 8 W | | Material of Construction | Aluminum | | Operating Temperature | -40 to 140°F / -40 to 60°C | | Operating Humidity | 0 to 95% | | IK Rating | IK10 | | Dimensions |
