Hikvision DS-2CD5185G0-IZS 8MP Network Dome Camera

Search your instruction manual in PDF to download

User Manual for Hikvision DS-2CD5185G0-IZS 8MP Network Dome Camera with Night Vision

Click to enlarge the picture
Hikvision DS-2CD5185G0-IZS 8MP Network Dome Camera with Night Vision Contents of the user manual for the Hikvision DS-2CD5185G0-IZS 8MP Network Dome Camera
  • Product category: Wired IP Cameras Hikvision
  • Brand: Hikvision
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Hikvision Wired IP Cameras

User manual for the Hikvision DS-2CD5185G0-IZS 8MP Network Dome Camera contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Hikvision product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!



Product description

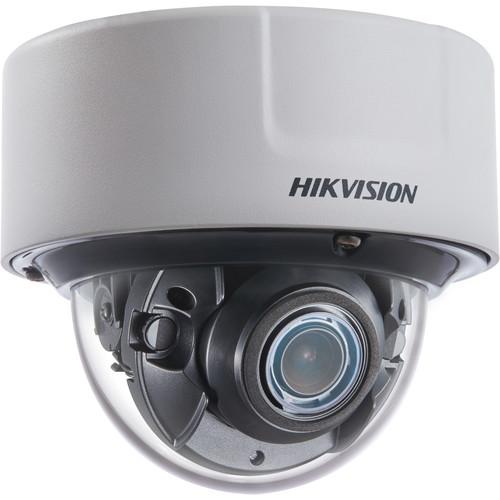

Watch over your property with the DS-2CD5185G0-IZS 8MP Network Dome Camera with Night Vision from Hikvision. Equipped with an 8MP CMOS sensor and a 2.8-12mm motorized varifocal lens, the camera captures video at resolutions up to 3840 x 2160 at 30 fps in a 112.4 to 41° field of view. The camera has an IR cut filter and EXIR 2.0 IR LEDs for night vision with an effective range of up to 100'. Image enhancement features including a 120 dB wide dynamic range, white balance, and backlight/highlight compensation enable you to capture clear images in varying lighting conditions.

Designed for easy setup, this camera uses PoE technology so you can run just one cable for both data and power. It also has a microSD card slot for edge storage, and audio input and output ports for two-way talk. The camera is housed in an IK10-rated vandal-resistant enclosure. ONVIF compliance ensures compatibility with a wide range of surveillance equipment.
  • Color images down to 0.009 lux at f/1.2 with AGC on
  • EXIR 2.0 IR technology for night vision up to 100'
  • IR cut filter for day and night vision
  • 2.8-12mm motorized varifocal lens with autofocus
  • H.265+, H.265, H.264+, and H.264 video compression for efficient storage and bandwidth use
  • Multiple streaming; five defined streams and five custom streams
  • Camera pivots from 0 to 355° horizontally and from 0 to 75° vertically
  • 0 to 355° rotation
  • 120 dB wide dynamic range
  • Alarm input and output
  • Audio input and output for two-way talk
  • 12 VDC accessory output
  • Automatic gain control
  • Backlight/highlight compensation
  • 3D digital noise reduction
  • Defog functionality
  • Electronic image stabilization
  • Picture overlay
  • Video analytics including face detection, line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, scene change detection, audio exception detection, and defocus detection
  • Smart statistics including people counting
  • microSD card slot for edge storage supports up to 256GB (microSD card available separately)
  • PoE technology for easy, clutter-free installation
  • Anti-reflective dome coating
  • IK10-rated vandal resistance
  • cSA, FCC, CE, and UL certified
  • ONVIF Profiles S and G compliant
In the Box Hikvision DS-2CD5185G0-IZS 8MP Network Dome Camera with Night Vision
  • Limited 3-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Hikvision DS-2CD5185G0-IZS 8MP Network Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Hikvision DS-2CD5185G0-IZS Specs

    Sensor 8 MP 1/1.8" CMOS
    Focal Length 2.8 to 12mm
    Maximum Aperture f/1.2
    Zoom Optical: 4.3x
    Lens Field of View Horizontal: 112.4 to 41°
    Vertical: 58 to 23°
    Diagonal: 137 to 47°
    IR Cut Filter Mechanical
    Day/Night Yes
    Minimum Illumination Color: 0.009 Lux
    B&W: 0 Lux
    Shutter Speed 1/100,000 to 1 Seconds
    Camera Angle Adjustment Horizontal: 0 to 355°
    Vertical: 0 to 75°
    Streaming Resolution 3840 x 2160 at 30 fps (16 Mb/s )
    Supported Video Compression H.264, H.264+, H.265, H.265+, MJPEG
    Multi-View Streaming Yes, 10 Streams
    Automatic Gain Control Yes
    Streaming Two-Way
    Audio Formats G.711, G.722.1, G.726, MP2L2, PCM
    Built-In Mic No
    External Audio Input 3.5 mm
    Built-In Speaker No
    External Audio Output 3.5 mm
    Security HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection, Watermark
    Supported Protocols Bonjour, CIFS/SMB, DDNS, DHCP, FTP, HTTP, ICMP, IGMP, IPv4/v6, NFS, NTP, ONVIF Profile G, ONVIF Profile S, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UPnP
    Application Programming Interface (API) ISAPI, SDK
    Analytics Line Crossing Detection, Intrusion Detection, Region Entrance Detection, Region Exiting Detection, Unattended Baggage Detection, Object Removal Detection, Scene Change Detection, Audio Exception Detection, Defocus Detection, Counting, Face Detection
    Event Trigger Yes
    Event Action Recording, Alarm
    Recording Media microSD (Up to 256 GB)
    Pan/Tilt None
    Alarm I/O 1 / 1
    I/O Connections 1 x RJ45
    1 x Power
    IR Illuminators 850 nm
    IR Range 100' / 30.48 m
    Video Management Software iVMS-4200, Hik-Connect, HikCentral
    Certifications CSA, UL, as per Manufacturer
    Internal Storage None
    External Storage Options Local PC, NAS
    Power Source DC, PoE 802.3at (30 W)
    Power Consumption DC: 8 W
    PoE: 9 W
    Material of Construction Aluminum
    Operating Temperature -22 to 140°F / -30 to 60°C
    Operating Humidity 0 to 95%
    IK Rating IK10
    Dimensions
