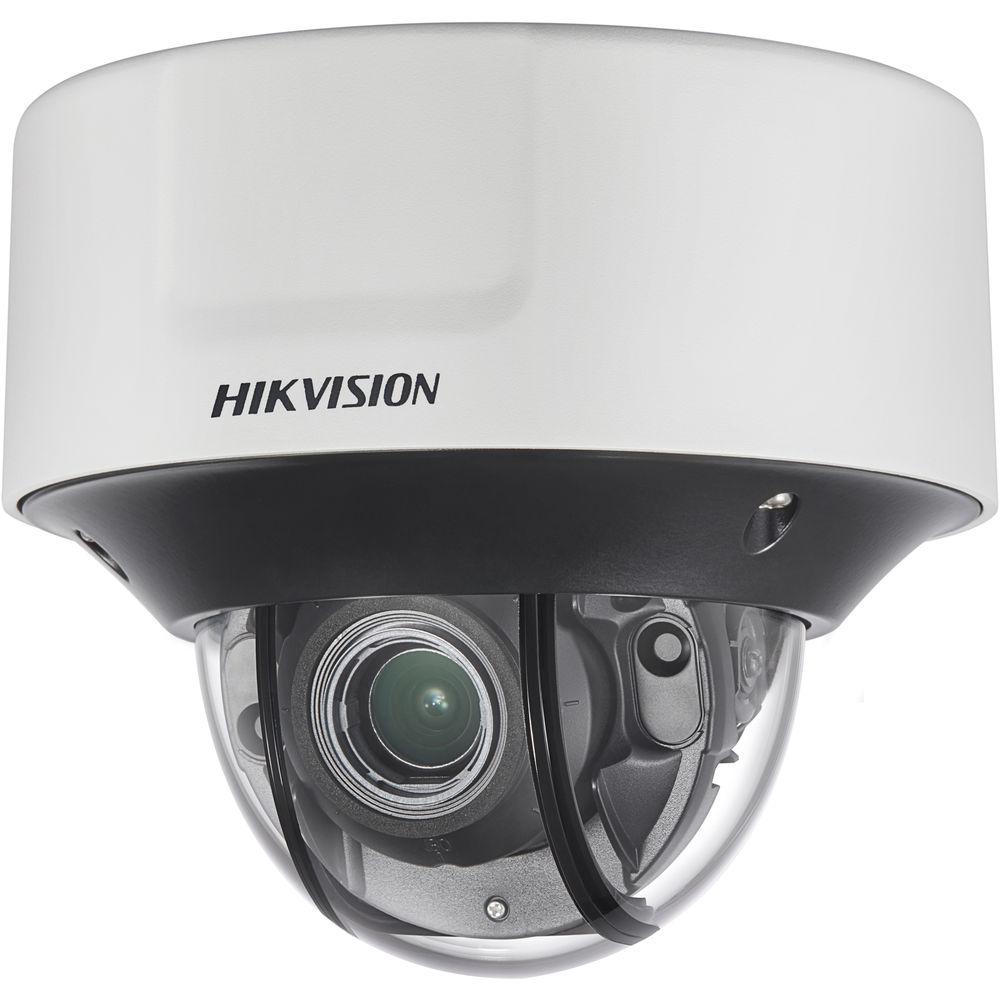

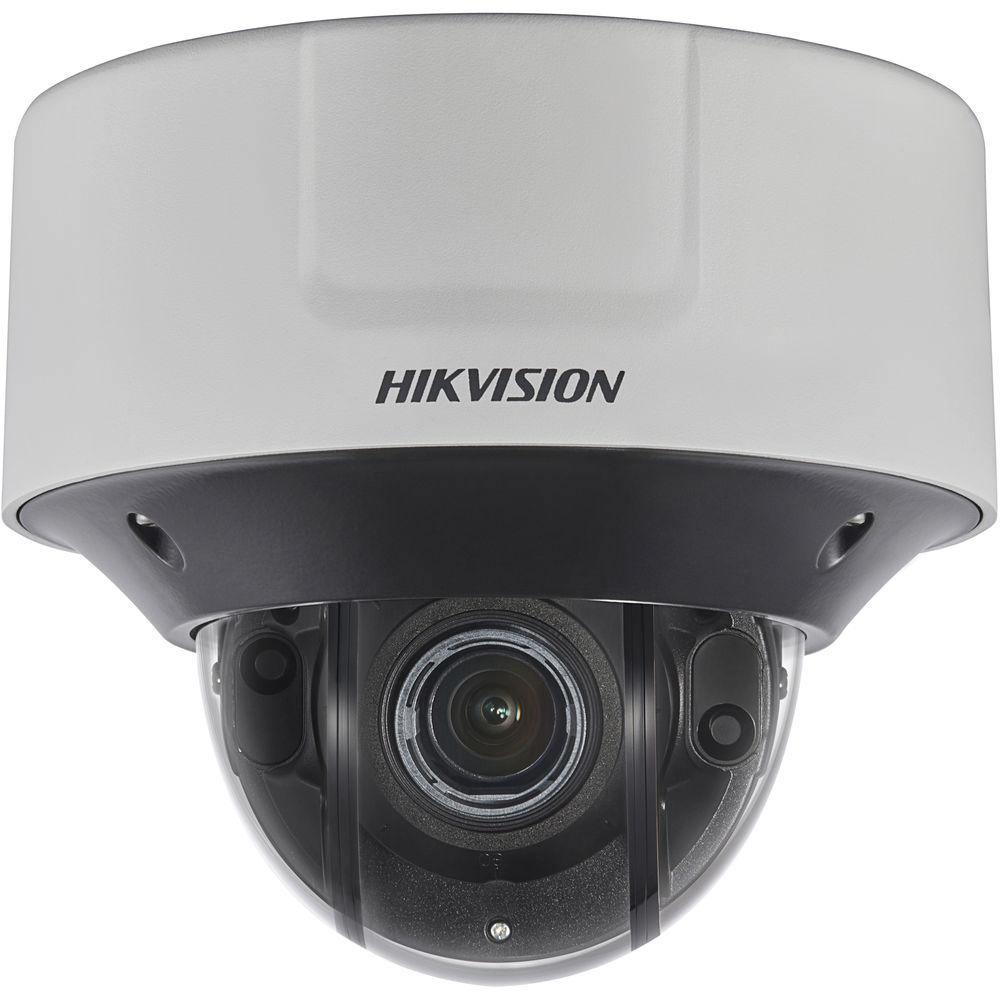

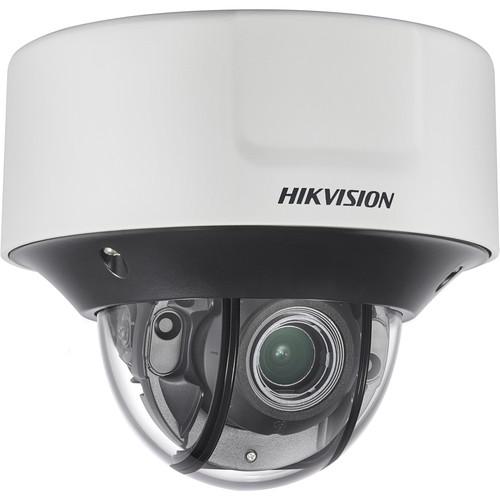

User Manual for Hikvision DS-2CD5526G0-IZHS 2MP Outdoor Network Dome Camera with Night Vision & Heater Click to enlarge the picture
Contents of the user manual for the Hikvision DS-2CD5526G0-IZHS 2MP Outdoor Network Dome
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
 |
User manual for the Hikvision DS-2CD5526G0-IZHS 2MP Outdoor Network Dome contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The DS-2CD5526G0-IZHS 2MP Outdoor Network Dome Camera from Hikvision uses a 1/1.8" progressive scan CMOS sensor to capture 1920 x 1080 resolution video at up to 60 fps. IR LEDs provide up to 100' of night vision. The camera's 2.8-12mm motorized varifocal lens delivers a 103.3-38.6° horizontal field of view. Two-way audio is possible thanks to an audio input and output. An onboard memory card slot accepts microSD/SDHC/SDXC cards up to 256GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This dome camera complies with ONVIF profiles S and G, making it compatible with a wide range of surveillance devices. It is equipped with a built-in heater and is housed in an IP67- & IK10-rated aluminum enclosure that is suitable for outdoor use in areas at risk of vandalism. - Anti-fog coating inside the lens cover
- EXIR 2.0 and DarkFighter technology for visibility in low-light conditions
- 140 dB wide dynamic range and LightFighter technology for improved image quality
- IR cut filter for day and night functionality
- Anti-IR reflection capsule
- H.265+, H.265, H.264+, H.264, and MJPEG video compressions
- Scalable video coding (SVC) for H.264 and H.265
- Five defined streams and five custom streams
- Camera pivots horizontally from 0 to 355° and vertically from 0 to 90°
- Image enhancements include backlight compensation, highlight compensation, 3D-DNR, defog, and electronic image stabilization
- Image settings include rotate mode, saturation, brightness, contrast, sharpness, automatic gain control, and white balance
- Region of interest (ROI) supports four fixed regions for main stream, sub stream, third stream, fourth stream, fifth stream, and dynamic face tracking
- Alarm triggers include motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, and HDD error
- Analytics include statistics (counting), line crossing, intrusion, region entrance, region exiting, unattended baggage, object removal, scene change, audio exception, defocus, and face detection
- General functions include one-key reset, anti-flicker, five streams and up to five custom streams, heartbeat, password protection, privacy mask, watermark, and IP address filtering
- Environment noise filtering
- Up to 20 channels in simultaneous live view
- Up to 32 users with 3 user levels (admin, operator, and user)
- RS-485 interface (self-adaptive, half-duplex, Hikvision, Pelco P, and Pelco D protocols)
- Compatible with Internet Explorer 8 or higher, Firefox 30.0 or higher, Chrome 31.0 or higher, Safari 8.0 or higher, iOS, Android, iVMS-4200, Hik-Connect, and Hik-Central
- Network-attached storage support
- CSA, FCC, CE, and cUL certified
UPC: 842571117899 In the Box Hikvision DS-2CD5526G0-IZHS 2MP Outdoor Network Dome Camera with Night Vision & Heater Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-2CD5526G0-IZHS 2MP Outdoor Network Dome Camera with Night Vision & Heater in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CD5526G0-IZHS Specs | | | Sensor | 2 MP 1/1.8" CMOS | | Focal Length | 2.8 to 12mm | | Maximum Aperture | f/1.2 | | Zoom | Optical: 4.3x | | Lens Field of View | Horizontal: 103.3 to 38.6°
Vertical: 54.2 to 21.9°
Diagonal: 124.2 to 44.3° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.002 Lux
B&W: 0 Lux | | Shutter Speed | 1/100,000 to 1 Seconds | | Camera Angle Adjustment | Horizontal: 0 to 355°
Vertical: 0 to 90° | | | | Streaming Resolution | 1920 x 1080 at 60 fps (16 Mb/s ) | | Supported Video Compression | H.264, H.264+, H.265, H.265+, MJPEG | | Multi-View Streaming | Yes, 10 Streams | | Automatic Gain Control | Yes | | | | Streaming | Two-Way | | Audio Formats | G.711, G.722.1, G.726, MP2L2, PCM | | External Audio Input | 3.5 mm | | External Audio Output | 3.5 mm | | | | Security | Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection, Watermark | | Supported Protocols | Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SOAP, TCP, UDP, UPnP | | | | Application Programming Interface (API) | ONVIF Profiles S & G, ISAPI, SDK | | Analytics | Motion Detection
Line Crossing Detection
Intrusion Detection
Region Entrance Detection
Region Exiting Detection
Unattended Baggage Detection
Object Removal Detection
Scene Change Detection
Audio Exception Detection
Defocus Detection
Face Detection
Statistics (Counting) | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | Data Streaming | Yes | | | | Mobile Operating Systems | iOS, Android | | | | Recording Media | microSD (Up to 256 GB) | | Pan/Tilt | None | | Alarm I/O | 1 / 1 | | I/O Connections | 1 x RJ45
1 x Power
1 x BNC
1 x 9-Pin Serial (RS-485) | | IR Illuminators | 850 nm | | IR Range | 100' / 30.48 m | | Video Management Software | iVMS-4200, Hik-Connect, Hik-Central | | Internal Storage | None | | External Storage Options | NAS | | Power Source | DC, PoE 802.3at (30 W) | | Power Consumption | 14 W (With Heater) | | Material of Construction | Aluminum | | Operating Temperature | -40 to 140°F / -40 to 60°C | | Operating Humidity | 0 to 95% | | IP Rating | IP67 | | IK Rating | IK10 | | Dimensions |
