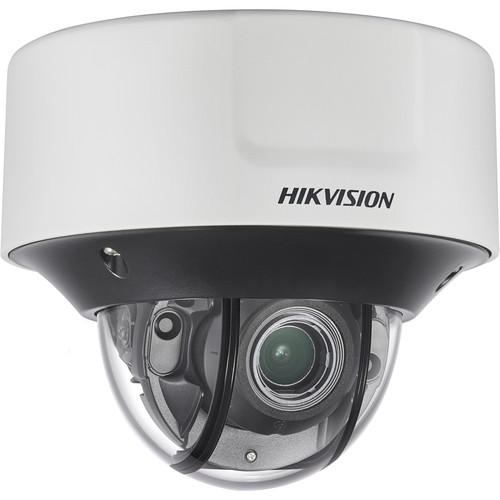

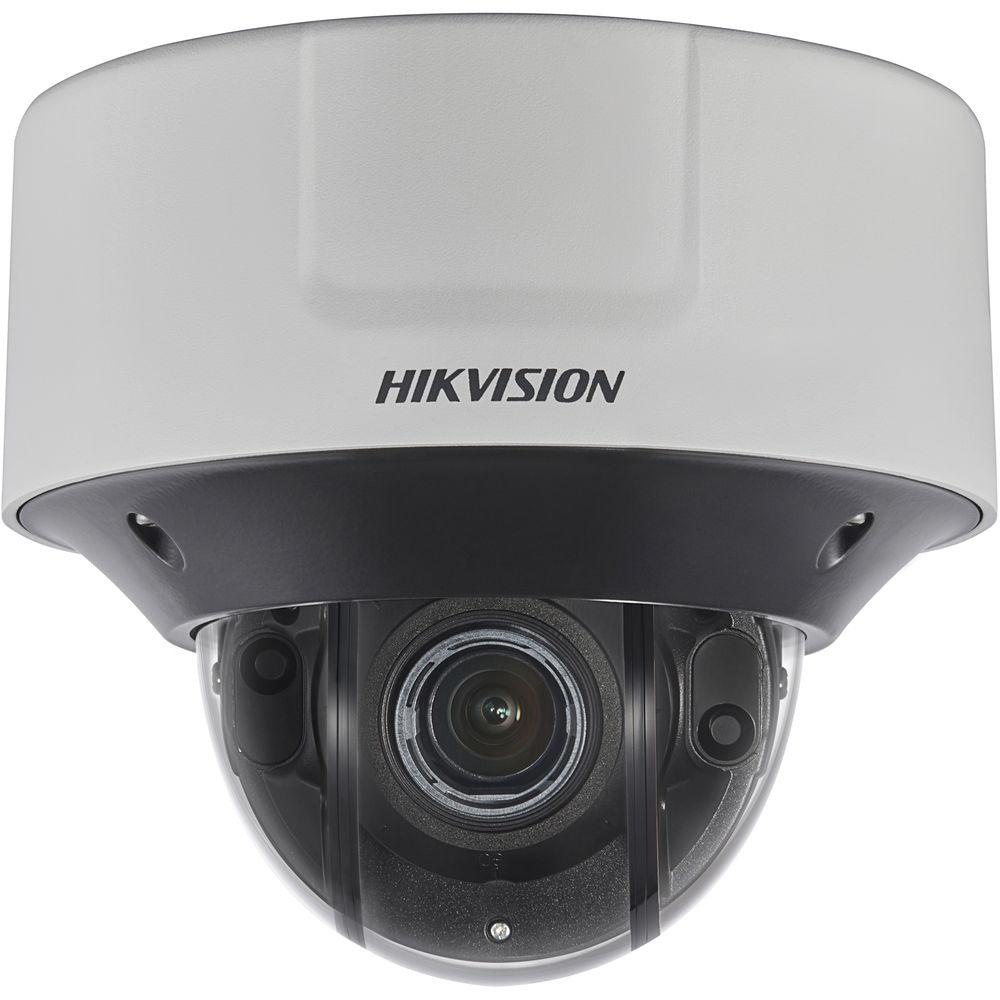

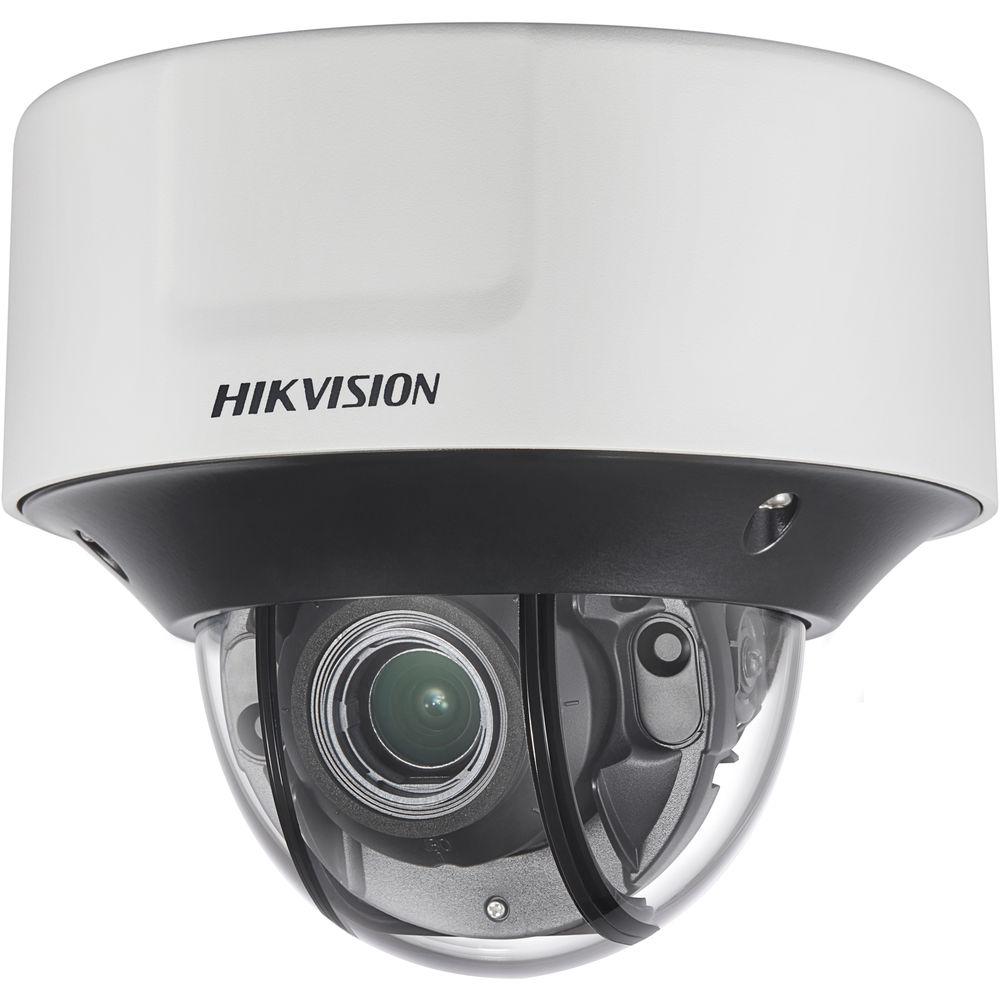

Hikvision DS-2CD5565G0-IZHS 6MP Outdoor Network Dome

User Manual for Hikvision DS-2CD5565G0-IZHS 6MP Outdoor Network Dome Camera with Night Vision & 2.8-12mm Lens

• Product category: Wired IP Cameras Hikvision
• Brand: Hikvision
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Hikvision Wired IP Cameras

Product description

• Color images down to 0.009 lux at f/1.2 with AGC on

• EXIR 2.0 IR technology for night vision up to 100'

• Anti-IR-reflection capsule for enhanced night images

• IR cut filter for day and night vision

• 2.8-12mm motorized varifocal lens with autofocus

• H.265+, H.265, H.264+, and H.264 video compression for efficient storage and bandwidth use

• Multiple streaming; five defined streams and five custom streams

• Camera pivots from 0 to 355° horizontally and from 0 to 75° vertically

• 0 to 355° rotation

• 120 dB wide dynamic range

• Alarm input and output

• Audio input and output for two-way talk

• Automatic gain control

• Backlight/highlight compensation

• 3D digital noise reduction

• Picture overlay

• Video and audio analytics including face detection, line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, scene change detection, audio exception detection, and defocus detection

• Smart statistics including people counting

• microSD card slot for edge storage supports up to 256GB (microSD card available separately)

• PoE technology for easy, clutter-free installation

• Anti-fog coating on inner side of lens cover

• IP67 rated for outdoor use

• IK10-rated vandal resistance

• cSA, FCC, CE, and UL certified

• ONVIF Profiles S and G compliant

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

Hikvision DS-2CD5565G0-IZHS Specs

Recording Media	microSD (Up to 256 GB)
Pan/Tilt	None
Alarm I/O	1 / 1
I/O Connections	1 x RJ45 1 x Power
IR Illuminators	850 nm
IR Range	100' / 30.48 m
Video Management Software	iVMS-4200, Hik-Connect, Hik-Central
Certifications	CSA, UL, as per Manufacturer
Internal Storage	None
External Storage Options	Local PC, NAS
Power Source	DC, PoE 802.3at (30 W)
Power Consumption	DC: 14 W
Material of Construction	Aluminum
Operating Temperature	-22 to 140°F / -30 to 60°C
Operating Humidity	0 to 95%
IP Rating	IP67
IK Rating	IK10
