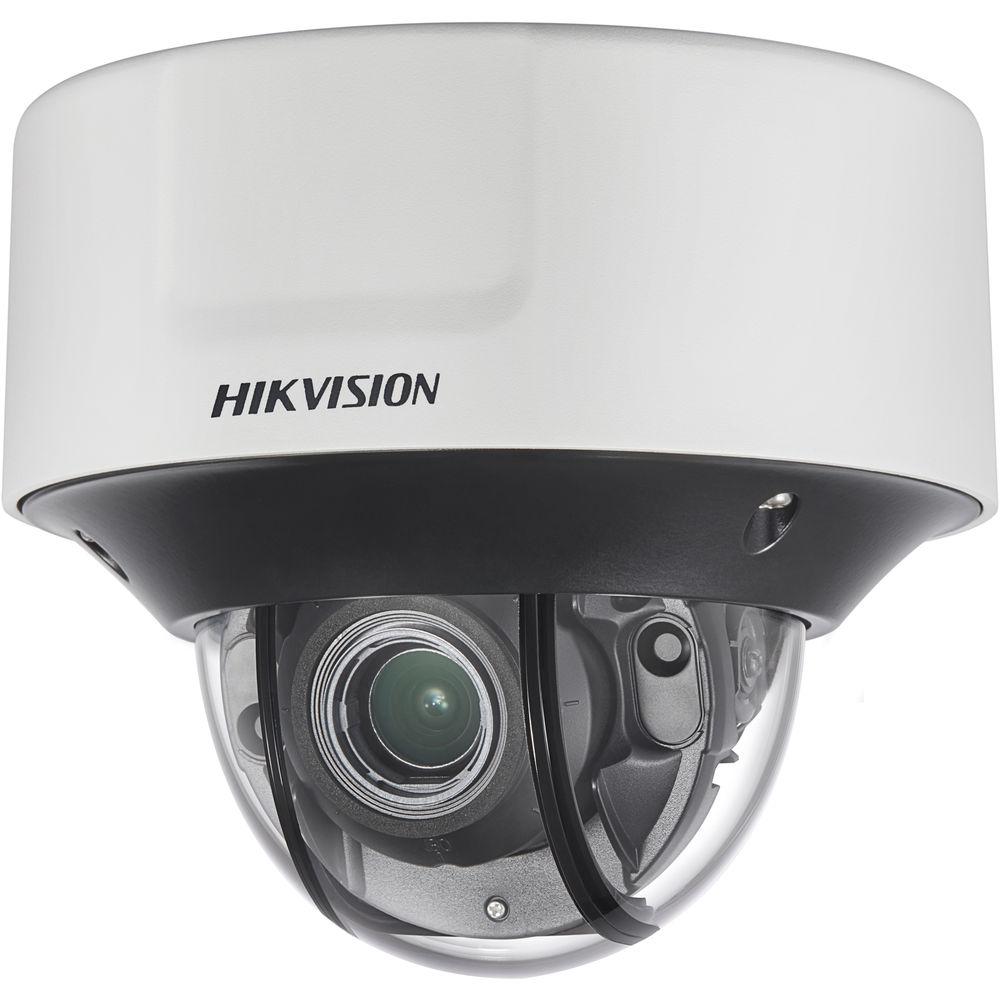

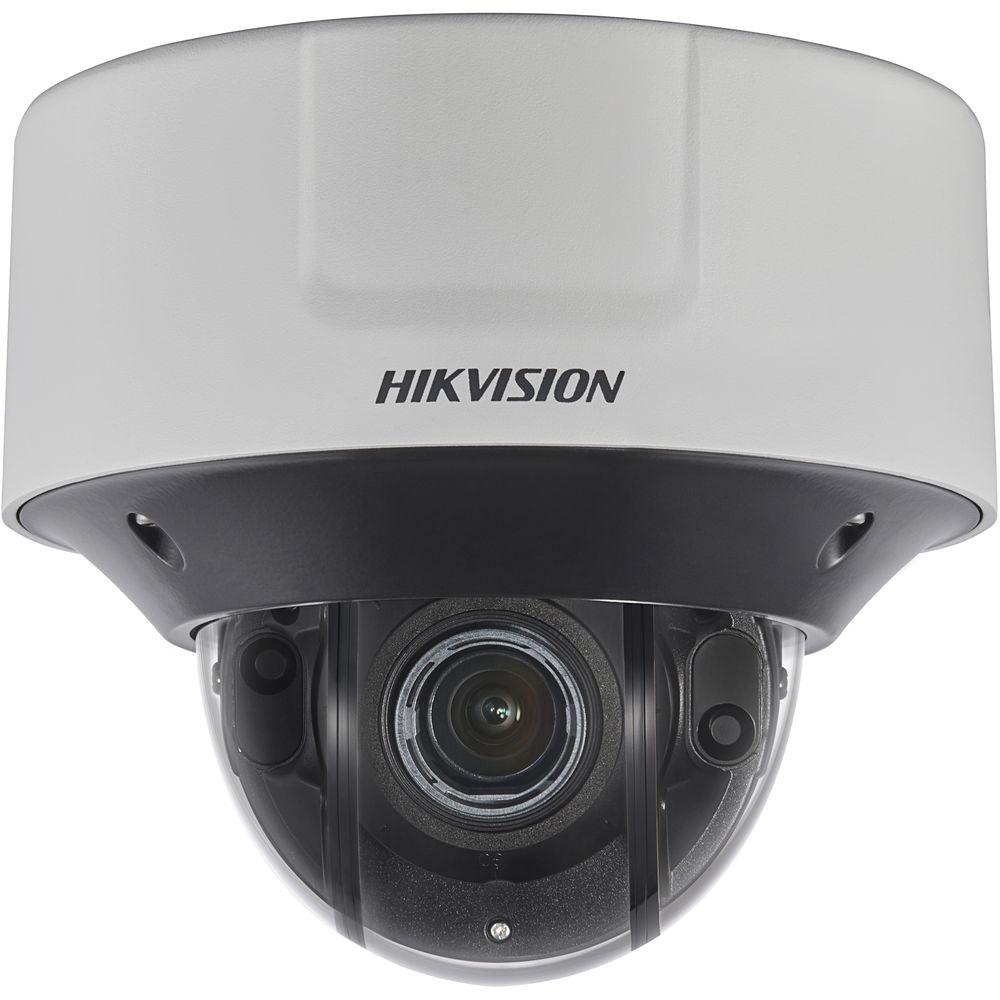

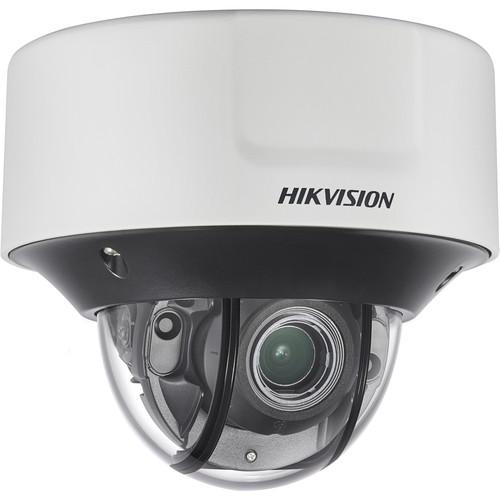

Product description The DS-2CD5585G0-IZHS 8MP Outdoor Network Dome Camera from Hikvision uses a 1/1.8" progressive scan CMOS sensor to capture 3840 x 2160 resolution video at 30 fps. IR LEDs provide up to 100' of night vision. The camera's 2.8-12mm motorized varifocal lens delivers a 112.4 to 41° horizontal field of view. Two-way audio is possible thanks to an audio input and output. An onboard memory card slot accepts microSD/SDHC/SDXC cards up to 256GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This dome camera complies with ONVIF profiles S and G, making it compatible with a wide range of surveillance devices. It is equipped with a built-in heater and is housed in an IP67- & IK10-rated aluminum enclosure that is suitable for outdoor use in areas at risk of vandalism.
- Anti-fog coating inside the lens cover
- EXIR 2.0 technology for visibility in low-light conditions
- IR cut filter for day and night functionality
- Anti-IR reflection capsule
- H.265+, H.265, H.264+, H.264, and MJPEG video compressions
- Scalable video coding (SVC) for H.264 and H.265
- Five defined streams and five custom streams
- Camera pivots horizontally from 0 to 355° and vertically from 0 to 75°
- 120 dB wide dynamic range
- Backlight and highlight compensation
- Electronic image stabilization
- Image settings include rotate mode, saturation, brightness, contrast, sharpness, automatic gain control, and white balance
- Region of interest (ROI) supports four fixed regions for main stream, sub stream, third stream, fourth stream, fifth stream, and dynamic face tracking
- Alarm triggers include motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, and HDD error
- Analytics include statistics (counting), line crossing, intrusion, region entrance, region exiting, unattended baggage, object removal, scene change, audio exception, defocus, and face detection
- General functions include one-key reset, anti-flicker, five streams and up to five custom streams, heartbeat, password protection, privacy mask, watermark, and IP address filtering
- Environment noise filtering
- Up to 20 channels in simultaneous live view
- Up to 32 users with 3 host levels (admin, operator, and user)
- Compatible with Internet Explorer 8 or higher, Firefox 30.0 or higher, Chrome 31.0 or higher, Safari 8.0 or higher, iOS, Android, iVMS-4200, Hik-Connect, and Hik-Central
- Network attached storage support
UPC: 842571117837 In the Box Hikvision DS-2CD5585G0-IZHS 8MP Outdoor Network Dome Camera with Night Vision & Heater Limited 3-Year Warranty Table of Contents
- CSA, FCC, CE, and cUL certified
Upload User Manual
Have you got an user manual for the Hikvision DS-2CD5585G0-IZHS 8MP Outdoor Network Dome Camera with Night Vision & Heater in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Hikvision DS-2CD5585G0-IZHS Specs
| Sensor || 8 MP 1/1.8" CMOS |
| Focal Length || 2.8 to 12mm |
| Maximum Aperture || f/1.2 |
| Zoom || Optical: 4.3x |
| Lens Field of View || Horizontal: 112.4 to 41° |
Vertical: 58 to 23°
Diagonal: 137 to 47°
| IR Cut Filter || Mechanical |
| Day/Night || Yes |
| Minimum Illumination || Color: 0.009 Lux |
B&W: 0 Lux
| Shutter Speed || 1/100,000 to 1 Seconds |
| Camera Angle Adjustment || Horizontal: 0 to 355° |
Vertical: 0 to 75°
| Streaming Resolution || 3840 x 2160 at 30 fps (16 Mb/s ) |
| Supported Video Compression || H.264, H.264+, H.265, H.265+, MJPEG |
| Multi-View Streaming || Yes, 5 Streams |
| Automatic Gain Control || Yes |
| Streaming || Two-Way |
| Audio Formats || G.711, G.722.1, G.726, MP2L2, PCM |
| External Audio Input || 3.5 mm |
| External Audio Output || 3.5 mm |
| Security || Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection, Watermark |
| Supported Protocols || Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SOAP, TCP, UDP, UPnP |
| Application Programming Interface (API) || ONVIF Profiles S & G, ISAPI, SDK |
| Analytics || Motion Detection |
Line Crossing Detection
Region Entrance Detection
Region Exiting Detection
Unattended Baggage Detection
Object Removal Detection
Scene Change Detection
Audio Exception Detection
| Event Trigger || Yes |
| Event Action || Recording, Notification, Alarm |
| Data Streaming || Yes |
| Mobile Operating Systems || iOS, Android |
| Recording Media || microSD (Up to 256 GB) |
| Pan/Tilt || None |
| Alarm I/O || 1 / 1 |
| I/O Connections || 1 x RJ45 |
1 x Power
1 x BNC
| IR Illuminators || 850 nm |
| IR Range || 100' / 30.48 m |
| Video Management Software || iVMS-4200, Hik-Connect, Hik-Central |
| Internal Storage || None |
| External Storage Options || NAS |
| Power Source || DC, PoE 802.3at (30 W) |
| Power Consumption || 14 W (With Heater) |
| Material of Construction || Aluminum |
| Operating Temperature || -22 to 140°F / -30 to 60°C |
| Operating Humidity || 0 to 95% |
| IP Rating || IP67 |
| IK Rating || IK10 |
| Dimensions ||
