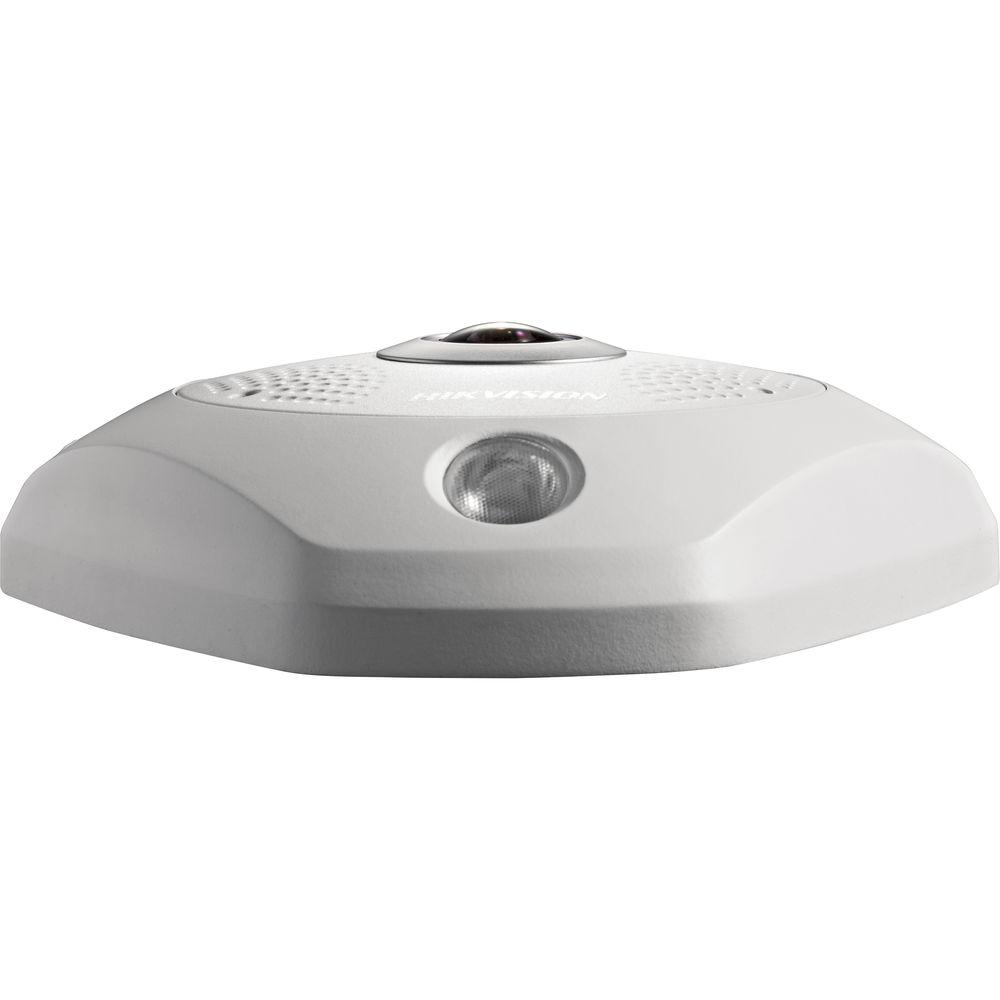

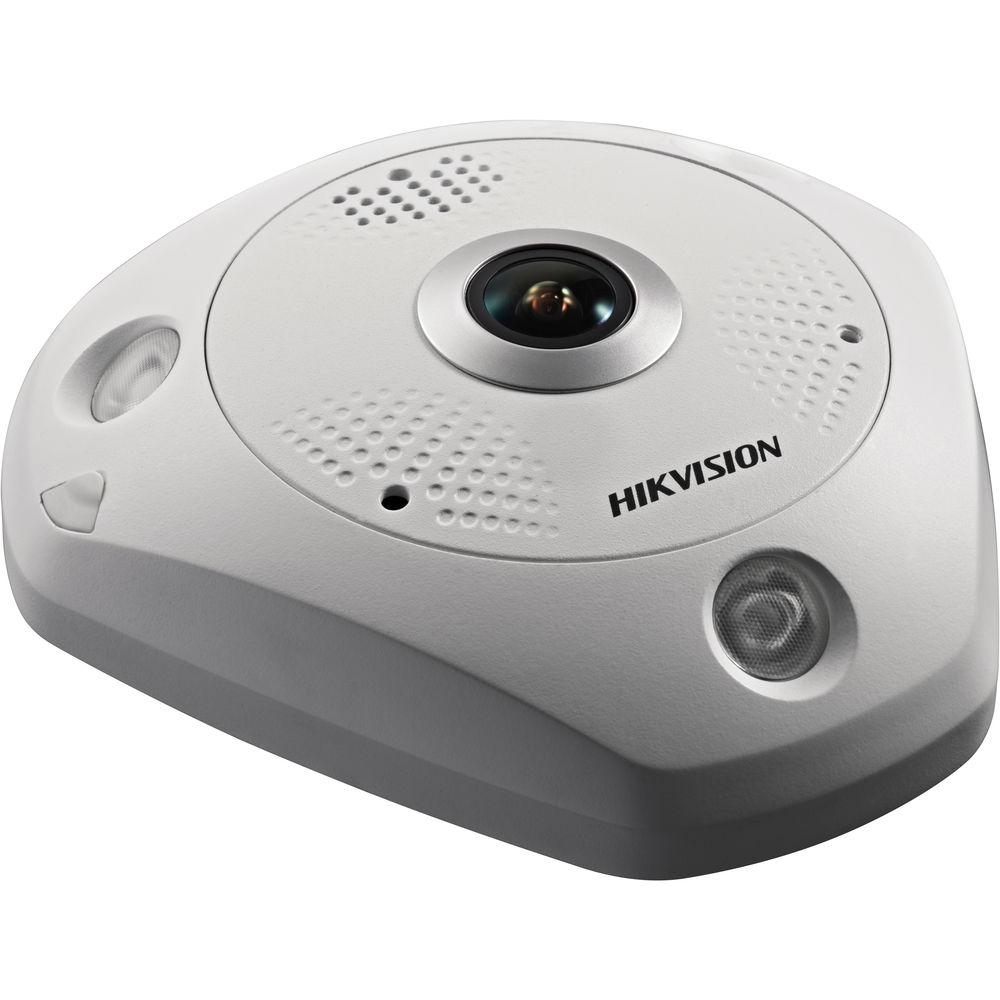

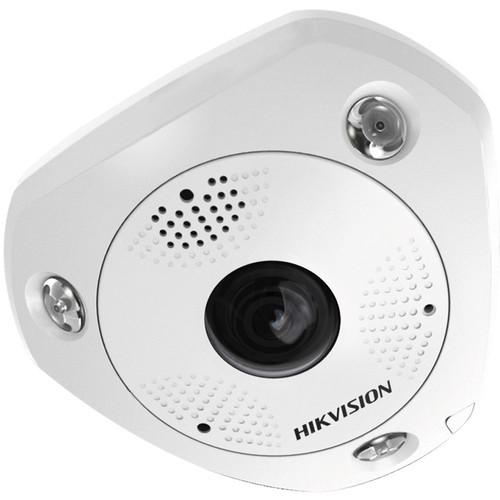

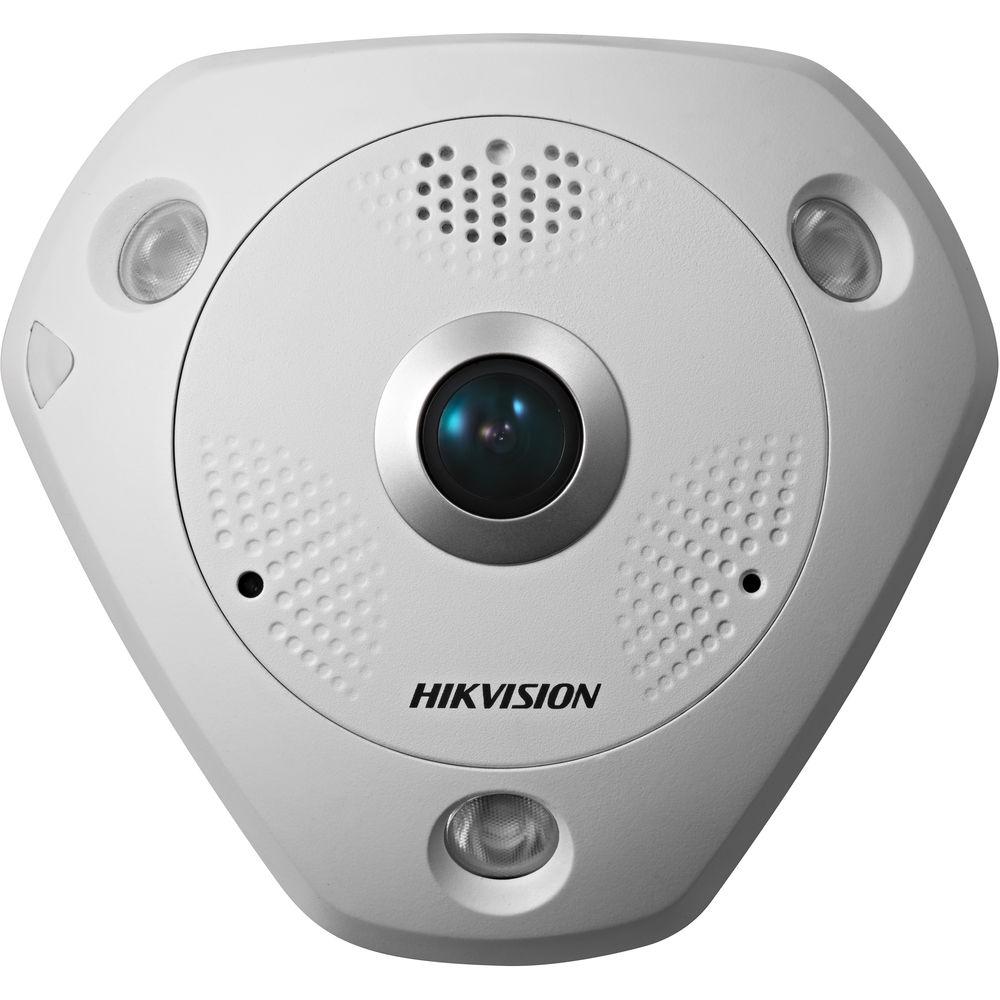

User Manual for Hikvision DS-2CD6362F-IV 6MP Outdoor Vandal-Resistant Network Fisheye Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Hikvision DS-2CD6362F-IV 6MP Outdoor Vandal-Resistant Network
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
 |
User manual for the Hikvision DS-2CD6362F-IV 6MP Outdoor Vandal-Resistant Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The DS-2CD6362F-IV 6MP Outdoor Vandal-Resistant Network Fisheye Camera from Hikvision features a 1/1.8" progressive scan CMOS sensor for up to 3072 x 2048 resolution at 25 fps. Equipped with a 1.27mm fixed lens, the camera can capture a 360° fisheye or panoramic field of view for a wide coverage area. Multiple ePTZ streams are also possible with preset and patrol functions for easy operation. Additionally, the camera's lens is surrounded by IR LEDs, providing up to 33' of night vision in complete darkness. Image enhancement features, such as WDR, backlight compensation, white balance, and 3D DNR, allow you to capture clear images in ambient light for use in a variety of environments. H.264 and MJPEG video compression maximize your storage and bandwidth, and the camera features an integrated microSD slot that supports up to 64GB of on-site storage. This device is ONVIF-compliant for compatibility with a wide range of surveillance devices, and PoE technology enables you to run just one wire for both data and power. Furthermore, with an IP66- and IK10-rated enclosure, the camera is suitable for installation outdoors and in high-risk locations. - 1/1.8" progressive scan CMOS sensor for up to 3072 x 2048 video resolution
- 1.27mm fixed fisheye lens for a 360° panoramic field of view
- Multiple ePTZ streams with preset and patrol functions
- Integrated microSD slot supports up to 64GB for edge recording
- 3D-DNR effectively filters noise from the image, even in low-light scenarios
- Saturation, brightness, hue, sharpness, and contrast adjustable image settings
- Backlight compensation, automatic gain control, and white balance enhancements
- IR LEDs provide up to 33' of night vision for use at all times
- Motion detection, network disconnect, IP address conflict, and tampering will trigger an alarm
- Security features such as user authentication, IP address filtering, and anonymous access
- Can be powered via 12 VDC or standard PoE for convenience
- Ceiling, wall, and table mount modes for versatile placement
- ONVIF-compliant for compatibility with a wide range of surveillance devices
UPC: 816783017810 In the Box Hikvision DS-2CD6362F-IV 6MP Outdoor Vandal-Resistant Network Fisheye Camera with Night Vision Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-2CD6362F-IV 6MP Outdoor Vandal-Resistant Network Fisheye Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CD6362F-IV Specs | | | Sensor | 1/1.8" progressive scan CMOS | | Minimum Illumination | 0.05 lux @ f/1.2 (AGC On)
0.3 lux @ f/2.8 (AGC On)
0 lux with IR | | Shutter Speed | 1/25 (1/30) to 1/100,000 seconds | | Lens | 1.27mm at f/2.8 | | Angle of View | 360° | | Lens Mount | M12 | | Day & Night | ICR | | IR Range | Maximum: 33' (10 m) | | | | Video | H.264 / MJPEG | | H.264 Profile | Baseline / Main / High | | Video Bit Rate | 32 kbps to 16 Mbps | | Audio | Compression: G.711 / G.726 / MP2L2
Bit Rate: 64 kbps (G.711) / 16 kbps (G.726) / 64 kbps (MP2L2) | | | | Maximum Resolution | 3072 x 2048 | | Frame Rate | High-Frame Mode: Supported
50 Hz: 1 x fisheye (3072 x 2048, 25 fps) or (2048 x 2048, 25 fps) or 4 x PTZ at (1024 x 768, 30 fps)
60 Hz: 1 x fisheye (3072 x 2048, 25 fps) or (2048 x 2048, 30 fps) or 4 x PTZ at (1024 x 768, 30 fps)
Multi-Channel Mode: Supported
50 Hz: 1 x fisheye (1280 x 1280, 12.5 fps) and 1 x panoramic (2048 x 1536, 12.5 fps) and 3 x PTZ (1024 x 768, 12.5 fps)
60 Hz: 1 x fisheye (1280 x 1280, 15 fps) and 1 x panoramic (2048 x 1536, 15 fps) and 3 x PTZ (1024 x 768, 15 fps) | | Maximum Streams | High Frame Rate Mode: 1 or 4
Multi-Channel: Up to 5
(No sub-streams) | | DNR | 3D-DNR | | Wide Dynamic Range | Digital WDR | | Image Settings | Saturation, Brightness, Contrast, Hue, Sharpness, AGC, White balance | | HLC | Yes | | Day/Night Switching | Auto / Manual / Scheduled / Alarm trigger | | | | Storage | NAS, SAMB / CIFS | | Alarm Trigger | Motion detection, dynamic analysis, tamper alarm, network disconnect, IP address conflict, storage full, storage error | | Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour | | Security | User authentication, Watermark, IP address filtering, Anonymous access | | Standard | ONVIF, PSIA, CGI | | | | Communication | 1 x RJ45 10M/100M/1000M Ethernet port | | On-board Storage | Built-in microSD/SDXC slot, up to 64 GB (not included) | | | | IP Rating | IP66 | | IK Rating | IK10 | | Operating Conditions | Temperature: -22 to 140°F (-30 to 60°C)
Humidity: 95% or less (non-condensing) | | Power Supply | 12 VDC ±10% / PoE | | Power Consumption | Maximum: 11 W | | Protection | IEC 60068-2-75 test, Eh, 50J; EN 50102, EN50155, IK10 | | Dimensions | 6.46 x 6.02 x 1.72" (16.40 x 15.28 x 4.38 cm) | | Weight | 3.1 lb (1400 g) | | | | Package Weight | 2.38 lb | | Box Dimensions (LxWxH) | 10.55 x 9.15 x 5.35" |
