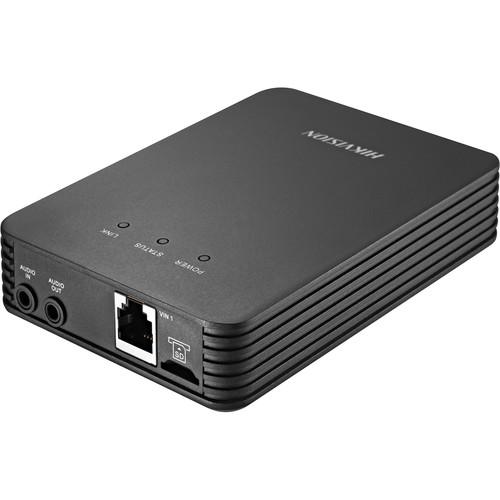

Product description The DS-2CD6412FWD-C2 960p Network Covert Camera Processor from Hikvision is a compact main processor unit that is compatible with the company's L10, L20, or L30 lenses, enabling close up, discreet surveillance. This base unit can connect to the lenses using a 6.6' or 26.2' cable for multiple installation options. The processor uses a 1/3" progressive-scan CMOS sensor for 1280 x 960 resolution at 30 fps, and it features wide dynamic range as well as 3D-DNR image enhancements. The compatible lens units have 3.7, 2.8, or 4mm focal lengths, producing a 57, 92.5 or 73.1° field of view, depending on the lens you pair the unit with. The camera also comes with built-in analytics, such as line crossing, intrusion detection, motion detection, and network disconnect and tampering alarms.
The camera compresses footage using H.264, MPEG4, and M-JPEG formatting, maximizing your bandwidth and storage efficiency. Additionally, video can be streamed in up to three individual streams to further conserve bandwidth usage. A microSD slot supports up to 128GB of on-site recording, or the camera can record remotely to a dedicated NAS. The network is secured with a number of safety features, including user authentication, watermarking, IP address filtering, and anonymous access. There is an integrated RS-485 interface for supporting a PTZ control, and an RS-232 interface allows you to connect the processor to a computer. PoE technology allows you to transfer both data and power over the same Ethernet cable, minimizing the number of cables needed during installation, and the camera also supports a standard 12 VDC power supply for additional versatility. - 1/3" progressive-scan CMOS sensor for up to 1280 x 960 resolution
- Compatible with 3.7mm (L10, L20) and 2.8mm or 4mm (L30) camera lenses
- 57, 92.5, or 73.1° FOV (depending on the attached lens)
- Supports 6.6' or 26.2' lens cable lengths for versatile placement
- Line input and output for 2-way audio capability
- microSD slot supports up to 128GB of on-site storage for edge recording
- H.264 / MPEG4 / M-JPEG triple streaming for conserving bandwidth and storage
- Adjustable saturation, brightness, and contrast image settings
- Wide dynamic range, 3D noise reduction, and backlight compensation enhancements
- Built-in analytics detect line crossing, intrusion, region entrance/exit, and object removal
- Alarm triggers include line crossing, intrusion detection, scene change, and motion detection
- Network security measures such as user authentication, watermarking, and IP address filtering
- ONVIF-compliance for compatibility with a wide range of surveillance devices
- RJ45 Ethernet connection with PoE technology for a minimum of wires during installation
UPC: 816783019333 In the Box Hikvision DS-2CD6412FWD-C2 960p Network Covert Camera Processor (Dual Input, No Lens) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-2CD6412FWD-C2 960p Network Covert Camera Processor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CD6412FWD-C2 Specs | | | Image Sensor | 1/3" progressive-scan CMOS | | Minimum Illumination | L10/20 (Color): 0.04 lux @ f/2.3 (AGC on)
L30 (Color): 0.04 lux @ f/2.0 (AGC on) | | Shutter Time | 1 to 1/100,000 seconds | | Lens | L10/L20: 3.7mm @ f/2.3
L30: 2.8mm @ f/2.0, 4mm @ f/2.0 | | Angle of View | L10/L20: 57°
L30: 92.5° (2.8mm), 73.1° (4mm) | | Cable Length | Optional 6.6' / 2.0 m or 26.2' / 8.0 m | | Wide Dynamic Range | 120 dB | | Digital Noise Reduction | 3D-DNR | | | | Video | H.264 / MPEG4 / M-JPEG | | Bit Rate | 32 Kbps to 16 Mbps | | Audio | G.711 / G.722.1 / G.726 / MP2L2 | | Streaming | Triple streams | | | | Resolution | 1280 x 960 (max) | | Frame Rate | 30 fps (1280 x 960, 1280 x 720) | | Image Settings | Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser | | Backlight Compensation | Yes, zone configurable | | HLC | Supported | | Defog | Smart defog supported | | EIS | Supported (first channel) | | ROI | Supported | | Digital Noise Reduction | 3D DNR supported | | Picture Overlay | Supports 128 x 128 size BMP with 24-bit depth image overlay, zone optional | | Day/Night | Electronic switching | | | | Storage | microSD/SDHC/SDXC card up to 128 GB
NAS (NFS, SMB / CIFS)
Edge recording | | Alarm Trigger | Line crossing detection, Intrusion detection, Defocus detection, Scene change detection, Motion detection, Face detection, Dynamic analysis, Tampering alarm, Network disconnect, IP address conflict, Storage exception | | Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour | | Security | User authentication, watermark, IP address filtering, anonymous access, flickerless, heartbeat, video mask | | System Compatibility | ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI | | | | Audio | Input: 1/8" / 3.5 mm audio interface, Mic in / Line in
Output: 1/8" / 3.5 mm audio interface, (line level, 600 Ohms) | | Communication | 1 x RJ45 10M/100M Ethernet port
1 x RS-485 interface
1 x RS-232 interface | | Alarm | 1 x Input
1 x Output | | Storage | microSD/SDHC/SDXC slot, supports up to 128 GB | | | | Line Crossing Detection | Cross a pre-defined virtual line | | Intrusion Detection | Enter a loiter in a pre-defined virtual region | | Region Entrance | Enter a pre-defined virtual region from an outside place | | Region Exiting | Exit from a pre-defined virtual region | | Unattended Baggage | Objects left over in the pre-defined region | | Object Removal | Objects removed from the pre-defined region | | Exception Detections | Scene change detection, Sudden audio increase/decrease detection, Audio loss detection, Defocus detection | | Statistics | Object counting (entrance and exit object number is accounted and showed on screen in real time) | | | | Operating Conditions | -22 to 140°F / -30 to 60°C
Humidity: 95% or less (non-condensing) | | Power Supply | 12 VDC ±10%, PoE (802.3af) | | Power Consumption | 6.5 W (max) | | Dimensions | 3.1 x 4.1 x 1.3" (7.8 x 10.5 x 3.2 cm) | | Weight | Main Body: 7.4 oz (210.0 g) | | | | Package Weight | 0.84 lb | | Box Dimensions (LxWxH) | 8.65 x 5.65 x 2.4" |
