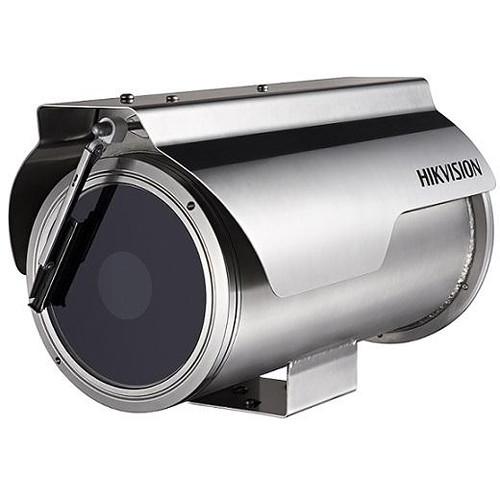

User Manual for Hikvision DS-2CD6626BS- 2MP Outdoor Anti-Corrosion Network Bullet Camera with Integrated Wiper Click to enlarge the picture
Contents of the user manual for the Hikvision DS-2CD6626BS- 2MP Outdoor Anti-Corrosion Network
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
|
User manual for the Hikvision DS-2CD6626BS- 2MP Outdoor Anti-Corrosion Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The DS-2CD6626BS-(R) 2MP Outdoor Anti-Corrosion Network Bullet Camera from Hikvision features a 1/1.8" progressive scan CMOS sensor and 16mm fixed lens for capturing videos at a maximum resolution of 1920 x 1080. The camera's housing is constructed from 316L stainless steel for protection against corrosion. The camera also complies with WF2 and C5-M anti-corrosion and IP67 weather-resistant standards. In addition, it comes with an integrated wiper. - Up to 1920 x 1080 at 60 fps resolution for real-time HD image output with H.264 high profile encoding
- Smooth stream configuration adjusting to the different requirements for image quality and fluency
- ROI and SVC with high compression ratio, flexible disposure, and low bit rate
- Up to 129 dB WDR and 3D-DNR
- Supports true day/night surveillance with an auto ICR switch and two sets of configurable parameters
- Supports local analog output for easy installation adjustment
- Supports three simultaneous stream outputs and recordings
- Dual HD stream set with different resolution, frame rate, and bit rate independently
- 20 simultaneous access and mobile monitoring points supported
- Defog, EIS, and White balance
- BLC, HLC, Auto Electronic Shutter, Auto Iris, Slow Shutter, and Rotate Mode
- Supports NAS, email, FTP, and NTP server tests
- Supports HTTPS, SSH and other safety certifications and creation of a certificate
- Supports basic and digest authentication for web security
- Lock user IP for multiple login errors
- Supports password complexity hint
- Complies with WF2 and C5-M anti-corrosion standards to avoid acidic and NSS (neutral salt spray) corrosion
- Sunshield to avoid direct sunlight
- Supports GB/T19845-2005 vibration standard
- IP67-rated weather-resistant housing
- Suitable for use in chemical plants, ports, ships, coastal road, and islands
- Smart Detection Features
- Line crossing
Scene change
Intrusion
Audio exception
Defocus
Motion and Face
Region entrance/exiting
Rapid motion
Unattended baggage/object removal
Parking
Dynamic analysis In the Box Hikvision DS-2CD6626BS-(R) 2MP Outdoor Anti-Corrosion Network Bullet Camera with Integrated Wiper Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-2CD6626BS- 2MP Outdoor Anti-Corrosion Network Bullet Camera with Integrated Wiper in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CD6626BS-R Specs | | | Image Sensor | 1/1.8" progressive scan CMOS | | Minimum Illumination | Color: 0.002 lux at f/1.2, AGC ON
B&W: 0.0002 lux at f/1.2, AGC ON | | Shutter Speed | 1 to 1/100,000 sec | | Slow Shutter | Support | | Lens Mount | M12 | | Lens | 16mm f/1.8
HFOV: 25° | | Day/Night | IR cut filter | | Digital Noise Reduction | 3D-DNR | | WDR Technology | 120 dB | | | | Video Compression | H.264/MJPEG/MPEG4 | | Encoding | H.264 Encoding Level: Base profile/main profile/high profile | | Video Bit Rate | 32 kbps to 16 Mbps | | Audio Compression | G.711/G.722.1/G.726/MP2L2 | | Audio Bit Rate | 64 kbps (G.711) / 16 kbps (G.722.1) / 16 kbps (G.726) / 32 to 128 kbps (MP2L2) | | | | Maximum Resolution | 1920 x 1080 | | Frame Rates | 50 Hz: 50 fps (1920 x 1080, 1280 x 960, 1280 x 720)
60 Hz: 60 fps (1920 x 1080, 1280 x 960, 1280 x 720) | | Streams | Third Stream
Independent with main stream and sub stream
Up to 50 Hz: 25 fps (1920 x 1080)
60 Hz: 30 fps (1920 x 1080) | | Image Settings | Rotate mode, saturation, brightness, contrast, and sharpness are adjustable by client software or web browser | | Backlight Compensation | Yes, zone configurable | | Day/Night Switching | Auto, schedule, alarm trigger | | Picture Overlay | Support 24-bit BMP image overlay, zone optional | | ROI | Up to 4 fixed areas in each stream or dynamic tracking | | | | Network Storage | NAS (supports NFS, SMB/CIFS) | | Alarm Trigger | Tampering alarm, network disconnect, IP address conflict, storage full, storage exception | | Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour | | Standards | ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI | | Function | One-key recovery, anti-flicker, three streams, heartbeat, mirror, password protection, video cover, watermark, IP address filtering, anonymous access | | | | Audio Interface | 1-channel, 3.5 mm audio in (mic in / line in) / output external interface | | Communication | 1 x 10M/100M Ethernet port, 1 x RS-485 port, 1 x RS-232 interface | | Housing | 1 x anti-corrosion inlet protected by a metal hose | | Alarms | 1 x input/1 x output (up to 24 VDC/1 A or 110 VAC/500 mA) | | | | Operating Conditions | -22 to 140°F (-30 to 60°C)
Humidity: 95% or less (non-condensing) | | Power Supply | 24 VDC/12 VDC//PoE (802.3af) | | Power Consumption | 13 W maximum | | System Requirements | Operating System: Microsoft Windows XP SP1 and above version
CPU: 2.0 GHz or higher
RAM: 1 GB or higher
Display: 1024 x 768 resolution or higher
Web Browser: Internet Explorer 8.0 and above version, Apple Safari 5.0.2 and above version, Mozilla Firefox 5.0 and above version and Google Chrome 18 and above version | | Dimensions | 14.6 x 8 x 7" (373.03 x 203.15 x 180 mm) | | Weight | 13.67 lb (6.2 kg) |
