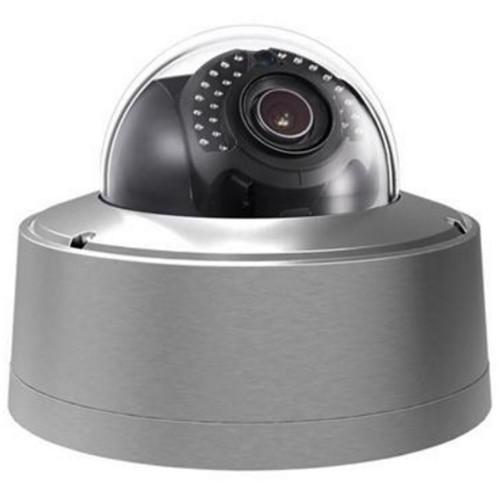

User Manual for Hikvision DS-2CD6626DS-IZHS 2MP Ultra Low-Light and ICR Day Night Anti-Corrosion Dome Camera with 2.8 to 12mm Varifocal Lens Click to enlarge the picture
Contents of the user manual for the Hikvision DS-2CD6626DS-IZHS 2MP Ultra Low-Light and
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
|
User manual for the Hikvision DS-2CD6626DS-IZHS 2MP Ultra Low-Light and contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The Hikvision DS-2CD6626DS-IZHS 2MP Ultra Low-Light and ICR Day/Night Anti-Corrosion Dome Camera utilizes a 1/1.8" progressive scan CMOS sensor and a 2.8 to 12mm varifocal lens to capture images at a maximum resolution up to 1920 x 1080. With a built-in IR-cut filter, this camera can capture clear images in complete darkness up to 98' away. In addition, the camera also supports intelligent auxiliary heating.
The camera conforms to WF2 and C5-M anti-corrosion standards for avoiding acidic and NSS (neutral salt spray) corrosion, making it suitable for applications such as chemical plants, ports, ships, and coastal roads. Enclosed in an IP67-rated weather-resistant housing, this camera is suitable for outdoor applications. - Supports resolution up to 1920 x 1080 @ 60 fps for real-time HD image output with H.264 high profile encoding
- Supports WDR up to 120 dB and 3D DNR
- Built-in microSD/SDHC/SDXC slot (up to 128GB)
- ROI (Region of Interest) and SVC (Scalable Video Coding) are adopted with high compression ratio, flexible disposure, and low bitrate
- Supports true day/night surveillance with an auto ICR switch and two sets of configurable parameters
- Features three-axis adjustment function and local analog output for easy installation adjustment
- Compatible with motorized zoom lens and intelligent auxiliary heating
- Smooth stream configuration adjusts to different requirements for image quality and fluency
- Supports three simultaneous stream outputs and recording (dual HD stream set with different resolution, frame rate, and bitrate independently)
- Supports 20 simultaneous access and mobile monitoring
- Features defog, EIS, white balance, BLC, auto-electronic shutter, auto iris, slow shutter, and rotate mode
- Supports line crossing detection, scene change detection, intrusion detection, audio exception detection, defocus detection, motion detection, face detection, region entrance/exiting detection, loitering detection, rapid motion detection, unattended baggage/object removal detection, and object counting
- Picture overlay, anonymous access, IP address filtering, heartbeat, mirror, PTZ control, alarm, and one-key recovery
- Supports NAS, E-mail, FTP, and NTP server test
- HTTPS, SSH security authentication, establish certificate
- Basic and digest authentication methods for web security
- Password complexity hint and lock user IP for logins with multiple errors
- 316L stainless steel anti-corrosion materials
- Supports GB/T19845-2005 standards
UPC: 813908027211 In the Box Hikvision DS-2CD6626DS-IZHS 2MP Ultra Low-Light and ICR Day/Night Anti-Corrosion Dome Camera with 2.8 to 12mm Varifocal Lens Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-2CD6626DS-IZHS 2MP Ultra Low-Light and ICR Day Night Anti-Corrosion Dome Camera with 2.8 to 12mm Varifocal Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CD6626DS-IZHS Specs | | | Image Sensor | 1/1.8" progressive scan CMOS | | Minimum Illumination | 0.002 lux @ f/1.2 (AGC On)
0 lux with IR | | Shutter Speed | 1 to 1/100,000 sec | | Slow Shutter | Supported | | Lens | 2.8 to 12mm @ f/1.4 | | Angle of View | 92 to 32° | | Lens Mount | Φ 14 | | Adjustment Range | Pan: 0 to 355°
Tilt: 0 to 75°
Rotation: 0 to 355° | | Auto Iris | DC drive | | Day/Night | IR-cut filter with auto switch | | DNR | 3D DNR | | Wide Dynamic Range | 120 dB | | | | Video | H.264 / MJPEG / MPEG4 | | H.264 Profile | Base line profile / main profile/ high profile | | Video Bit Rate | 32 kb/s to 16 Mb/s | | Audio Compression | G.711/G.722.1/G.726/MP2L2 | | Audio Bit Rate | 64 kb/s (G.711)
16 kb/s (G.722.1)
16 kb/s (G.726)
32 to 128 kb/s (MP2L2) | | | | Maximum Resolution | 1920 x 1080 | | Frame Rate | 50 Hz: 50 fps (1920 x 1080, 1280 x 960, 1280 x 720)
60 Hz: 60 fps (1920 x 1080, 1280 x 960, 1280 x 720) | | Image Settings | Corridor mode, saturation, brightness, contrast and sharpness are adjustable by client software or web browser | | Day/Night Switching | Auto, schedule, alarm trigger | | Picture Overlay | Supports 24-bit BMP image overlay | | | | Network Storage | microSD/SDHC/SDXC card (up to 128 GB)
NAS (supports NFS and SMB/CIFS) | | Alarm Trigger | Tampering alarm, network disconnect, IP address conflict, storage full, and storage error | | Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, and Bonjour | | General | One-key recovery, flash-prevention, three stream, heartbeat, mirror, password protection, video cover, watermark, IP address filtering, anonymous access | | Standard | ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI, GB28181 | | | | Communication | 1 x RJ45 10/100M Ethernet port | | Alarm | 1 x I/O (up to 24 VDC/1 A or 110 VAC/500 mA) | | Audio Interface | Audio in (mic in / line in)
Output external interface (plug wire type) | | Housing | 1 x Anti-corrosion inlet protected by a metal hose | | Video Output | 1 V p-p composite output (75 Ohms / BNC) | | | | IR Range | 32.8 to 98.4' / 10 to 30 m | | IP Rating | IP67 | | Power Supply | 24 VAC / 12 VDC / PoE (802.3at) | | Power Consumption | 16 W (maximum) | | Operating Temperature | -40 to 140°F / -40 to 60°C | | Humidity | 95% or less (non-condensing) | | Heating | Intelligent electric auxiliary heating | | Dimensions | Φ 6.5 x 5.0" / Φ 165.4 x 126.2 mm | | Weight | 7.4 lb / 3.4 kg |
