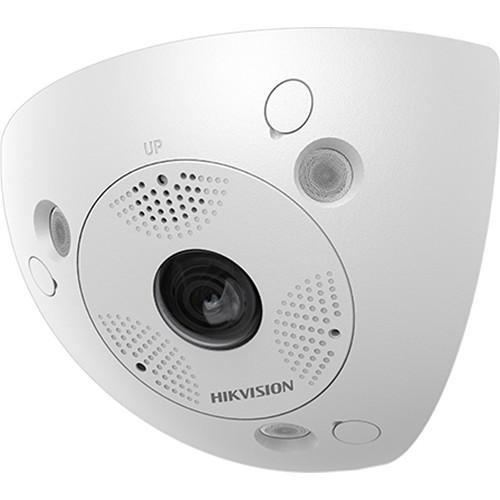

User Manual for Hikvision DS-2CD6W32FWD-IVSC 3MP Outdoor Network Corner-Mount Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Hikvision DS-2CD6W32FWD-IVSC 3MP Outdoor Network Corner-Mount
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
|
User manual for the Hikvision DS-2CD6W32FWD-IVSC 3MP Outdoor Network Corner-Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description See through the night and watch over your property with the DS-2CD6W32FWD-IVSC 3MP Outdoor Network Corner-Mount Camera with Night Vision from Hikvision. Equipped with a 3MP CMOS sensor and an ultra-wide-angle 2mm fixed lens, the camera captures video at resolutions up to 2048 x 1536 at 30 fps in a 135 x 98° field of view. The camera has an IR cut filter and IR LEDs for night vision with an effective range of up to 50'. Image enhancement features including a 120 dB wide dynamic range and white balance enable you to capture clear images in varying lighting conditions.
Designed for easy setup, this camera uses PoE technology so you can run just one cable for both data and power. It has a microSD card slot for edge storage, and audio input and output ports for two-way talk. The camera is IP66 and IK08 rated for weather and impact resistance. ONVIF compliance ensures compatibility with a wide range of surveillance equipment. - IR technology for night vision up to 50'
- IR cut filter for day and night vision
- H.264 video compression for efficient storage and bandwidth use
- 120 dB wide dynamic range
- Built-in speaker and microphone for two-way talk
- 3D digital noise reduction
- Up to four fixed regions of interest in each stream
- Video analytics including line crossing detection, intrusion detection, motion detection, dynamic analysis, and tamper detection
- microSD card slot for edge storage supports up to 64GB (microSD card available separately)
- PoE technology for easy, clutter-free installation
- IK66 rated for outdoor use
- IK08-rated impact resistance
- cSA, FCC, CE, and UL certified
- ONVIF Profiles S and G compliant
In the Box Hikvision DS-2CD6W32FWD-IVSC 3MP Outdoor Network Corner-Mount Camera with Night Vision Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-2CD6W32FWD-IVSC 3MP Outdoor Network Corner-Mount Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CD6W32FWD-IVSC Specs | | | Sensor | 3 MP 1/3" CMOS | | Focal Length | 2mm | | Maximum Aperture | f/2.4 | | Lens Field of View | Horizontal: 135°
Vertical: 98° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.1 Lux
B&W: 0 Lux | | Shutter Speed | 1/100,000 to 1/25 Seconds | | | | Streaming Resolution | 2048 x 1536 at 30 fps (16 Mb/s ) | | Supported Video Compression | H.264 | | Multi-View Streaming | Yes, 2 Streams | | Automatic Gain Control | Yes | | | | Streaming | Two-Way | | Audio Formats | G.711, G.726, MP2L2 | | Built-In Mic | Yes | | External Audio Input | 3.5 mm | | Built-In Speaker | Yes | | External Audio Output | 3.5 mm | | | | Security | Anonymous Authentication, HTTPS, IP Address Filtering, Password Protection, Watermark | | Supported Protocols | DDNS, DHCP, DNS, FTP, GB28181, HTTP, ICMP, ONVIF Profile G, ONVIF Profile S, RTCP, RTP, RTSP, TCP | | | | Analytics | Line Crossing Detection, Intrusion Detection, Motion Detecion, Dynamic Analysis, Tamper Detection | | Event Trigger | Yes | | Event Action | Recording, Alarm | | | | Recording Media | microSD (Up to 64 GB) | | Pan/Tilt | None | | Alarm I/O | 1 / 1 | | I/O Connections | 1 x RJ45 | | IR Range | 50' / 15.24 m | | Certifications | CSA, UL, as per Manufacturer | | Internal Storage | None | | External Storage Options | NAS | | Power Source | DC, PoE 802.3af (15 W) | | Power Consumption | DC: 12 W | | Operating Temperature | -22 to 140°F / -30 to 60°C | | IP Rating | IP66 | | IK Rating | IK08 | | Dimensions | H: 8.2 x W: 7.7 x L: 4.5" / H: 20.8 x W: 19.6 x L: 11.4 cm | | Weight | 4.4 lb / 2 kg | | | | Package Weight | 3.195 lb | | Box Dimensions (LxWxH) | 10.2 x 10.1 x 7.5" |
