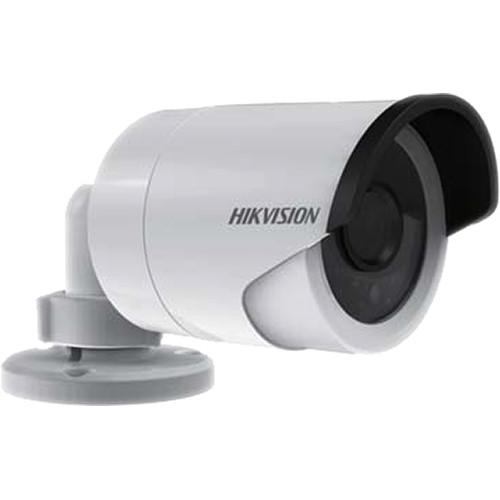

User Manual for Hikvision DS-2CE15C2N-IR 720 TVL Outdoor Bullet Camera Click to enlarge the picture
Contents of the user manual for the Hikvision DS-2CE15C2N-IR 720 TVL Outdoor Bullet
- Product category: Wired Analog & HD Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired Analog & HD Cameras
|
User manual for the Hikvision DS-2CE15C2N-IR 720 TVL Outdoor Bullet contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The DS-2CE15C2N-IR 720 TVL Outdoor Bullet Camera from Hikvision features a 1/3" PICADIS image sensor for up to 720 TVL video resolution. The camera's 3.6mm fixed lens has a 71.4° horizontal field of view, and the lens is surrounded by Smart IR LEDs for up to 66' of night vision. Additionally, a mechanical IR cut filter automatically switches between color and B&W in low light conditions for true day/night functionality. You can pan the camera 360°, tilt it 90°, and rotate it 360° for easy angle adjustments during installation. With an IP66 weatherproof rating, the camera can be used outdoors, and it features a wide operating temperature range for use in a variety of scenarios. - 1/3" PICADIS image sensor for up to 700 TVL resolution
- Smart IR LEDs provide up to 66' of night vision
- 3.6mm fixed lens with f/1.2 aperture for 71.4° horizontal field of view
- 360° panning, 90° tilting, and 360° rotation adjustments
- IR cut filter with auto switch for true day/night functionality
- Wide operating temperature range for use in a variety of environments
- IP66-rated weatherproof for outdoor use
UPC: 816783015205 In the Box Hikvision DS-2CE15C2N-IR 720 TVL Outdoor Bullet Camera Limited 3-Year Warranty Brochure PDF 1.7mbeyfqxwxtvzywrw Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-2CE15C2N-IR 720 TVL Outdoor Bullet Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CE15C2N-IR Specs | | | Image Sensor | 1/3" PICADIS | | Signal System | PAL / NTSC | | Effective Pixels | 1280 (H) x 960 (V) | | Minimum Illumination | 0.1 lux @ f/1.2 (AGC ON)
0.3 lux @ f/2.3 (AGC ON)
0 lux with IR | | Shutter Speed | 1/25 (1/30) to 1/25,000 (1/30,000) seconds | | Lens | 3.6mm fixed @ f/2.3 | | Angle of View | 73.1° | | Lens Mount | M12 | | Angle Adjustment | Pan: 0 to 360°
Tilt: 0 to 90°
Rotation: 0 to 360° | | Day & Night | IR cut filter with auto switch | | IR Distance | Up to 66' (20 m) | | Horizontal Resolution | 720 TVL | | Synchronization | Internal | | Video Output | 1 V p-p composite output (75 Ohms / BNC) | | S/N Ratio | More than 62 dB | | | | Working Temperature | -40 to 140°F (-40 to 60°C) | | Humidity | 90% or less (non-condensing) | | Power Supply | 12 VDC ±10% | | Power Consumption | Maximum: 1.5 W
With IR Cut Filter On: 4.5 W (max) | | Ingress Protection | IP66 | | Dimensions | Ø2.8 x 5.9" / Ø7.0 x 15.0 cm | | Weight | 12.7 oz / 360 g | | | | Package Weight | 0.9 lb | | Box Dimensions (LxWxH) | 6.2 x 4.2 x 3.2" |
