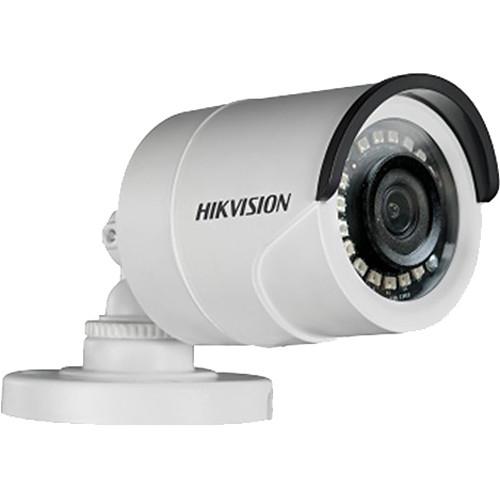

User Manual for Hikvision DS-2CE16D3T-I3F 2MP Outdoor Analog HD Bullet Camera with Night Vision and 3.6mm Lens Click to enlarge the picture
Contents of the user manual for the Hikvision DS-2CE16D3T-I3F 2MP Outdoor Analog HD
- Product category: Wired Analog & HD Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired Analog & HD Cameras
|
User manual for the Hikvision DS-2CE16D3T-I3F 2MP Outdoor Analog HD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The DS-2CE16D3T-I3F 2MP Outdoor Analog HD Bullet Camera from Hikvision uses a 2MP progressive scan CMOS sensor to transmit 1920 x 1080 resolution video at up to 30 fps. IR LEDs provide up to 98' of night vision. The camera's 3.6mm fixed lens delivers an 82° horizontal field of view. HD-TVI, HD-CVI, AHD, and CVBS signal outputs are supported. The UTC (Up-the-Coax) connection allows for OSD control of the camera.
This bullet camera is housed in an IP67-rated metal enclosure that is suitable for outdoor use. - IR cut filter for day and night functionality
- Wide dynamic range ≥120 dB
- Smart IR, brightness, sharpness, 3D-DNR, and mirroring
UPC: 842571123036 In the Box Hikvision DS-2CE16D3T-I3F 2MP Outdoor Analog HD Bullet Camera with Night Vision and 3.6mm Lens Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-2CE16D3T-I3F 2MP Outdoor Analog HD Bullet Camera with Night Vision and 3.6mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CE16D3T-I3F Specs | Image Sensor | 2 MP Progressive Scan CMOS | | Signal System | NTSC, PAL | | Resolution | 1920 x 1080 | | Video Frame Rate | NTSC: 1920 x 1080 at 30 fps
PAL: 1920 x 1080 at 25 fps | | Minimum Illumination | 0.005 Lux at f/1.2 with AGC
0 Lux with IR | | Shutter Time | NTSC: 1/50,000 to 1/30 Seconds
PAL: 1/50,000 to 1/25 Seconds | | Slow Shutter | 16x Maximum | | Lens | 3.6mm Fixed Lens | | Field of View | Horizontal: 82° | | Lens Mount | M12 | | Day & Night | IR Cut Filter | | Day/Night Mode | Auto, Color, B&W | | IR Range | 98.4' / 30 m | | Synchronization | Internal | | Wide Dynamic Range | ≥120 dB | | Automatic Gain Control | High, Medium, Low | | Image Modes | STD, High-Sat | | Backlight Compensation | Supported | | 3D-DNR | Level 1 to 9 | | Language | English | | Functions | Brightness, Sharpness, 3D-DNR, Mirror, Smart IR | | Communication | UTC (Up-the-Coax), HIKVISION-C | | Video Output | 1 x HD Analog Output | | Switch Button | HD-TVI, HD-CVI, AHD, CVBS | | Operating Temperature | -40 to 140°F / -40 to 60°C | | Operating Humidity | ≤90% (Non-Condensing) | | Power Supply | 12 VDC, ±25% | | Power Consumption | 4.7 W Maximum | | IP Rating | IP67 | | Material | Metal | | Dimensions | 6.05 x 2.38" / 153.6 x 60.4 mm | | Weight | 0.67 lb / 303 g | | | | Package Weight | 0.9 lb | | Box Dimensions (LxWxH) | 7.0 x 4.2 x 3.3" |
