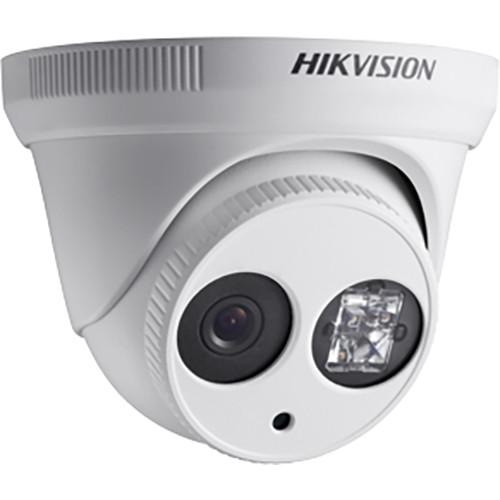

User Manual for Hikvision DS-2CE56C5T-IT1 720p Outdoor HD-TVI Turret Camera with 2.8mm Lens & Night Vision Click to enlarge the picture
Contents of the user manual for the Hikvision DS-2CE56C5T-IT1 720p Outdoor HD-TVI Turret
- Product category: Wired Analog & HD Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired Analog & HD Cameras
|
User manual for the Hikvision DS-2CE56C5T-IT1 720p Outdoor HD-TVI Turret contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The DS-2CE56C5T-IT1 720p Outdoor HD-TVI Turret Camera with 2.8mm Lens & Night Vision from Hikvision is equipped with a 1/3" progressive scan CMOS sensor to capture 1280 x 720 resolution video at up to 60 fps. Built-in EXIR technology delivers up to 65' of night vision. The 2.8mm fixed lens delivers a 92.45° field of view. HD-TVI technology allows the camera to transmit HD video over coaxial cables. This device is housed in an IP66-rated enclosure that is suitable for outdoor use. - Up-the-Coax OSD menu control
- IR cut filter delivers true day and night functionality
- Camera pivots from 0 to 355° horizontally & 0 to 75° vertically
- Motion detection for up to 4 zones
- Privacy masking for up to 8 zones
- Functions include HSBLC, automatic gain control, white balance, 3D-DNR, slow shutter, mirror, defog, defect pixel correction, and Smart D-Zoom
- IP66-rated enclosure that is suitable for outdoor use
UPC: 816783018299 In the Box Hikvision DS-2CE56C5T-IT1 720p Outdoor HD-TVI Turret Camera with 2.8mm Lens & Night Vision Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-2CE56C5T-IT1 720p Outdoor HD-TVI Turret Camera with 2.8mm Lens & Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CE56C5T-IT12.8 Specs | Image Sensor | 1/3" progressive scan CMOS | | Signal System | NTSC | | Effective Pixels (H x V) | 1280 x 720 | | Minimum Illumination | Color: 0.0043 lux at f/2.5 with AGC on
B&W: 0 lux with IR | | Shutter Speed | 1/50,000 to 1/60 sec | | Lens | 2.8mm | | Field of View | 92.45° | | Lens Mount | M12 | | Camera Angle Adjustment | Pan: 0 to 355°
Tilt: 0 to 75°
Rotation: 0 to 355° | | Day & Night | IR cut filter | | IR Range | Up to 65' / 20 m | | Synchronization | Internal | | Video Frame Rate | 720p at 60 fps | | Output | HD Video: 1 x analog HD
CVBS: 1 V p-p composite, 75 Ohms/BNC | | S/N Ratio | >62 dB | | Exposure | Automatic Exposure: Globe AE, DWDR | | AGC (Automatic Gain Control) | Low, middle, high, off | | Slow Shutter | Supported | | Day/Night Mode | Color, B&W, Smart IR | | White Balance | ATW, AWC-SET, indoor, outdoor, manual | | 3D-DNR | Low, middle, high, off | | Motion Detection | On/off, maximum 4 zones | | Privacy Masking | 8, selectable color or mosaic | | UTC | Supported | | Communication | Up-the-Coax | | Functions Supported | HSBLC/eclipse, digital noise reduction, 62x digital zoom, slow shutter, mirror, defog, defect pixel correction, SMART D-ZOOM | | Operating Temperature | -22 to 140°F / -30 to 60°C | | Humidity | 90% or less, non-condensing | | Power Supply | 12 VDC | | Maximum Power Consumption | 3 W | | IP Rating | IP66 | | Dimensions |
