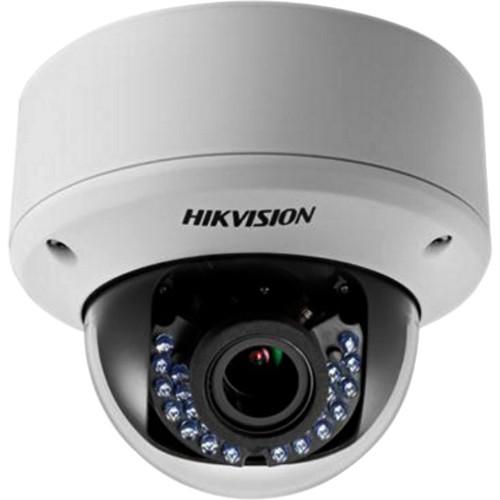

User Manual for Hikvision DS-2CE56D1T-AVFIRB 2MP HD-TVI Dome Camera with Night Vision & 2.8-12mm Varifocal Lens Click to enlarge the picture
Contents of the user manual for the Hikvision DS-2CE56D1T-AVFIRB 2MP HD-TVI Dome Camera
- Product category: Wired Analog & HD Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired Analog & HD Cameras
|
User manual for the Hikvision DS-2CE56D1T-AVFIRB 2MP HD-TVI Dome Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The black DS-2CE56D1T-AVFIRB 2MP HD-TVI Dome Camera with Night Vision from Hikvision utilizes a 2MP CMOS image sensor and 2.8-12mm varifocal lens to record videos at a resolution of 1080p. The integrated mechanical IR cut filter enables true day/night functionality, and built-in Smart IR LEDs provide up to 98' of night vision in total darkness. - True day/night functionality with IR cut filter
- Smart IR LEDs with night visibility up to 98'
- OSD menu controlled via up-the-coax (HIKVISION-C) protocol
- Supports 24 VAC / 12 VDC dual operation
UPC: 813908028058 In the Box Hikvision DS-2CE56D1T-AVFIRB 2MP HD-TVI Dome Camera with Night Vision & 2.8-12mm Varifocal Lens (Black) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-2CE56D1T-AVFIRB 2MP HD-TVI Dome Camera with Night Vision & 2.8-12mm Varifocal Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CE56D1T-AVFIRB Specs | | | Image Sensor | 2 MP CMOS | | Signal System | NTSC | | Effective Pixels (H x V) | 1930 x 1088 | | Minimum Illumination | at f/1.2, AGC on
0.014 lux at f/1.4, AGC on
0 lux with IR on | | Shutter Time | 1/30 to 1/50,000 sec | | Lens | 2.8-12mm, f/1.4 | | Field of View | 105.2-32.8° | | Day & Night | ICR | | IR Range | Up to 98.4' (30 m) | | Pan | 0 to 355° | | Tilt | 0 to 180° | | Rotation | 0 to 355° | | Video Frame Rate | 30 fps at 1080p | | HD Video Output | 1 x analog HD output | | Synchronization | Internal | | S/N Ratio | >62 dB | | | | Day/Night Mode | Color / B&W / Auto / EXT | | White Balance | Auto / Manual | | BLC | On / Off | | AGC | Supported | | Anti-Flicker | On / Off | | Language | English / Chinese | | | | Operating Temperature | -4 to 113°F (-20 to 45°C) | | Humidity | 90% or less (non-condensing) | | Power Supply | 12 VDC ±10%
24 VAC ±10% | | Maximum Power Consumption | 4 W | | Communication | Up-the-coax
Protocol: HIKVISION-C (HD-TVI output) | | Dimensions (Ø x H) | 5.35 x 3.98" (136 x 101 mm) | | Weight | 21.2 oz (600 g) |
