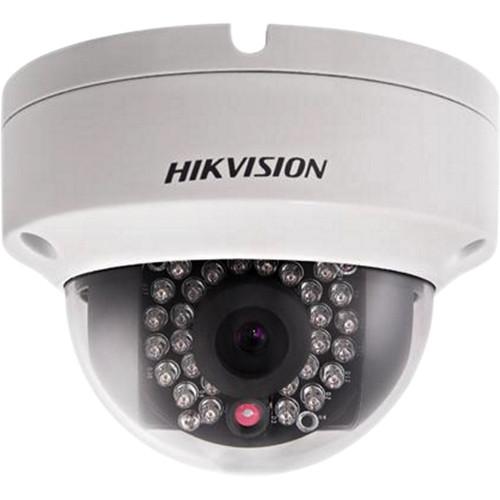

User Manual for Hikvision DS-2CE56D1T-VPIR 2MP HD-TVI Dome Camera with 6mm Lens & Night Vision Click to enlarge the picture
Contents of the user manual for the Hikvision DS-2CE56D1T-VPIR 2MP HD-TVI Dome Camera
- Product category: Wired Analog & HD Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired Analog & HD Cameras
|
User manual for the Hikvision DS-2CE56D1T-VPIR 2MP HD-TVI Dome Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The black DS-2CE56D1T-VPIR 2MP HD-TVI Dome Camera with Night Vision from Hikvision utilizes a 2MP 1/2.7" progressive scan CMOS sensor and 6mm fixed lens to capture 1920 x 1080 resolution video at up to 30 fps. The integrated IR LEDs help the camera produce clear images at night from up to 65' away, even in total darkness. HD-TVI technology allows the camera to transmit up to 1080p footage over a standard coaxial cable. Backlight compensation, digital noise reduction, auto gain composure, and adjustable white balance features assist in providing clear video footage in varying lighting conditions. This camera is IK10-rated for protection against impact and IP66-rated for outdoor use. - 2MP 1/2.7" progressive scan CMOS sensor captures 1080p video at up to 30 fps
- HD-TVI technology allows for high-definition video transmission over coaxial cable
- IR cut filter and Smart IR LEDs for night vision up to 65'
- Up the coax (UTC) Hikvision-C (Coaxitron) protocol for OSD control
- IK10-rated for vandal resistance
- IP66-rated for outdoor use
In the Box Hikvision DS-2CE56D1T-VPIR 2MP HD-TVI Dome Camera with 6mm Lens & Night Vision (Black) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-2CE56D1T-VPIR 2MP HD-TVI Dome Camera with 6mm Lens & Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CE56D1T-VPIRB-6MM Specs | | | Image Sensor | 2 MP 1/2.7" progressive scan CMOS sensor | | Signal System | PAL / NTSC | | Effective Pixels (H x V) | 1920 x 1080 | | Minimum Illumination | Color: 0.034 lux at f/2.2
B&W: 0.0034 lux at f/2.2
0 lux with IR | | IR Range | Up to 65' (20 m) | | Shutter Time | 1/30 to 1/50,000 sec | | Lens | 6mm | | Field of View | 55.4° | | Lens Mount | φ 14 | | Day & Night | IR cut filter | | Angle Adjustment | Pan: 0 to 355°
Tilt: 0 to 75°
Rotation: 0 to 355° | | Synchronization | Internal synchronization | | Video Frame Rate | 1080p at 30 fps | | HD Video Output | 1 x analog HD output | | S / N Ratio | >52 dB | | | | AGC (Automatic Gain Control) | Yes | | Day/Night Mode | Color / B&W / EXT | | White Balance | Auto / Manual | | Backlight Compensation | Yes | | Function | Digital noise reduction, mirroring | | | | Working Temperature | -40 to 140°F (-40 to 60°C) | | Humidity | < 90%, non-condensing | | Power Supply | 12 VDC | | Power Consumption | 3 W maximum | | IP Rating | IP66 | | Impact Protection | IK10 | | Communication | Up the coax
Protocol: Hikvision-C (Coaxitron) | | Dimensions | 4.4 x 3.2" (111 x 82.4 mm) | | Weight | 1.2 lb (0.55 kg) |
