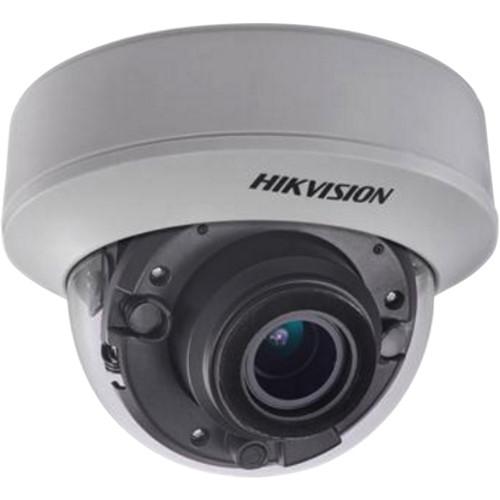

User Manual for Hikvision DS-2CE56D7T-AITZ 2MP Analog HD Dome Camera with 2.8-12mm Varifocal Lens & Night Vision Click to enlarge the picture
Contents of the user manual for the Hikvision DS-2CE56D7T-AITZ 2MP Analog HD Dome
- Product category: Wired Analog & HD Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired Analog & HD Cameras
|
User manual for the Hikvision DS-2CE56D7T-AITZ 2MP Analog HD Dome contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The DS-2CE56D7T-AITZ 2MP Analog HD Dome Camera from Hikvision captures day and night surveillance video in 1920 x 1080 resolution. It features a 2.8-12mm motorized varifocal lens. With integrated IR LEDs and Hikvision's EXIR technology, the camera can record footage up to 131' away, even in total darkness without center image over-exposure or shadowed corners. The onscreen display menu allows you to make quick changes to recording and light settings of the camera to increase image sharpness and brightness. - Analog HD output, up to 1920 x 1080 resolution
- 2.8-12mm motorized varifocal lens
- OSD (On-Screen Display) menu
- DNR (Digital Noise Reduction)
- Smart IR, up to 131' of night vision
- True WDR (Wide Dynamic Range), up to 120 dB
UPC: 813908026962 In the Box Hikvision DS-2CE56D7T-AITZ 2MP Analog HD Dome Camera with 2.8-12mm Varifocal Lens & Night Vision Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-2CE56D7T-AITZ 2MP Analog HD Dome Camera with 2.8-12mm Varifocal Lens & Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CE56D7T-AITZ Specs | Image Sensor | 2 MP CMOS | | Signal System | NTSC | | Effective Pixels | 1920 x 1080 | | Minimum Illumination | 0.01 lux at f/1.2, AGC on
0 lux with IR on | | Shutter Time | 1/30 to 1/50,000 seconds | | Lens | Motorized varifocal lens 2.8-12mm | | Angle of View | 114.5 to 35.1° | | Day & Night | ICR | | Angle Adjustment | Pan: 0 to 360°
Tilt: 0 to 90°
Rotate: 0 to 360° | | Synchronization | Internal | | Wide Dynamic Range | 120 dB | | Video Frame Rate | 1080p at 30 fps | | HD Video Output | 1 analog HD output | | S/N Ratio | >62 dB | | AGC (Automatic Gain Control) | Support | | BLC | On/off | | Language | English/Chinese | | Operating Conditions | -40 to 140°F (-40 to 60°C) | | Humidity | 90% or less (non-condensing) | | Power Supply | 12 VDC, ±15% | | Power Consumption | Maximum 4.5 W | | Protection Level | IP66 | | IR Range | Up to 131' (40 m) | | Dimensions | 5.4 x 4" (14 x 10 cm) | | Weight | Approximately 1.32 lb (0.6 kg) |
