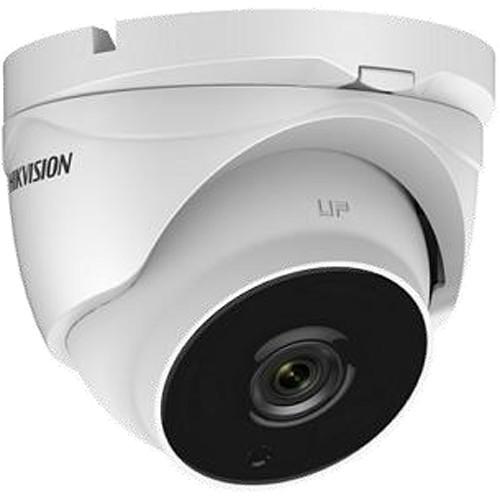

User Manual for Hikvision DS-2CE56D7T-IT3Z 2MP Outdoor HD-TVI Turret Camera with Night Vision & 2.8-12mm Lens Click to enlarge the picture
Contents of the user manual for the Hikvision DS-2CE56D7T-IT3Z 2MP Outdoor HD-TVI Turret
- Product category: Wired Analog & HD Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired Analog & HD Cameras
|
User manual for the Hikvision DS-2CE56D7T-IT3Z 2MP Outdoor HD-TVI Turret contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The DS-2CE56D7T-IT3Z from Hikvision uses a 1/2.7" CMOS sensor to transmit 1920 x 1080 resolution video at up to 30 fps. Built-in EXIR technology provides up to 131' of night vision. The 2.8-12mm motorized varifocal lens delivers a 114.5-35.1° field of view to cover a wide area. The camera supports an HD-TVI signal output. UTC (Up-the-Coax) protocol enables OSD menu control.
This turret camera is housed in an IP66-rated enclosure that is suitable for outdoor use. - EXIR technology for low-light visibility
- IR cut filter for day and night functionality
- Camera pivots from 0 to 360° horizontally & from 0 to 75° vertically
- 120 dB wide dynamic range
- CSA, FCC, CE, and cUL certified
UPC: 813908026924 In the Box Hikvision DS-2CE56D7T-IT3Z 2MP Outdoor HD-TVI Turret Camera with Night Vision & 2.8-12mm Lens Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-2CE56D7T-IT3Z 2MP Outdoor HD-TVI Turret Camera with Night Vision & 2.8-12mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CE56D7T-IT3Z Specs | Image Sensor | 2 MP, 1/2.7" CMOS image sensor | | Signal System | NTSC, PAL | | Effective Pixels | 1928 x 1088 | | Minimum Illumination | Color: 0.01 lux at f/1.2 with AGC on
B&W: 0 lux with IR | | Shutter Speed | 1/50,000 to 1/30 seconds (NTSC)
1/50,000 to 1/25 seconds (PAL) | | Lens | 2.8-12mm motorized varifocal lens | | Field of View | 114.5-35.1° | | Optical Zoom | 4.3x | | Lens Mount | Ø14 | | IR Range | 131' / 40 m | | IR Cut Filter | Yes | | Day/Night Mode | Smart, color, and B&W | | Angle Adjustment | Horizontal: 0 to 360°
Vertical: 0 to 75°
Rotation: 0 to 360° | | Synchronization | Internal | | Wide Dynamic Range | 120 dB | | Video Frame Rate | 1920 x 1080 at 30 fps (NTSC)
1920 x 1080 at 25 fps (PAL) | | HD Video Output | 1 x HD-TVI | | Communication | Up-the-Coax, HIKVISION-C protocol (HD-TVI output) | | OSD Menu | Yes | | S/N Ratio | >62 dB | | Automatic Gain Control | Supported | | White Balance | ATW, MWB | | Backlight Compensation | Supported | | Functions | Smart IR, wide dynamic range, digital noise reduction, mirror | | Operating Temperature | -40 to 140°F / -40 to 60°C | | Operating Humidity | <90% (non-condensing) | | Power Supply | 12 VDC ±15% | | Power Consumption | Maximum 6 W | | IP Rating | IP66 | | Certifications | CSA, FCC, CE, cUL | | Dimensions | 5.29 x 4.88 x 4.39" / 134.3 x 123.9 x 111.4 mm | | Weight | 1.6 lb / 750 g | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 6.8 x 6.8 x 6.0" |
